| Model: | PCM3-2550 |
|---|---|
| Brand: | lingjiang |
| Origin: | Made In China |
| Category: | Computers & AV Digital / Computer Components / Mainboard |
| Label: | Single Board Compute , motherboards , embedded |
| Price: |
US $97
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:17 Jan, 2014 |

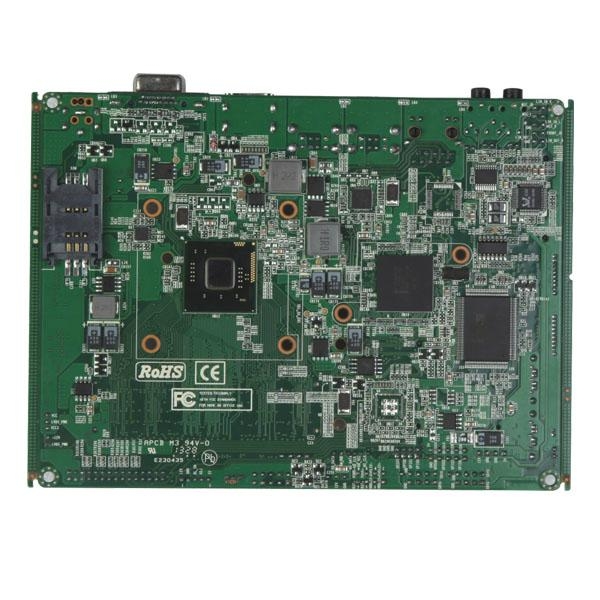

Product Description
1.Intel(R) D2550 Atom , 1.86GHz CPU
2.1x 2.5" SATA HDD or 1x Internal Compact
3.Chipset: Intel D2550+ ICH10M Flash Type II slot
Specification
|
System Specification |
|
|
Processor |
Onboard CPU intel atom D2500 (1.86Ghz) |
|
BIOS |
AMI Plug Play BIOS |
|
System Chipset |
Intel NM10+intel Atom D2550 |
|
System Memory |
2 x DIMM, Max 8GB DDR3 1333/1066 |
|
Graphic Interface |
Integrated on Intel® Atom D2550,24-bit signal channel LVDS support HDMI VGA |
|
Ethernet Controller |
1x RJ-45, Gigabit Ethernet_RTL8111E |
|
I/O Chipset |
ITE 8718F/HX-L |
|
Serial |
2 x RS232(1xRS232/422/485), ports |
|
USB |
6 x USB ports, USB 2.0 compliant |
|
Watchdog Timer |
1~256 levels |
|
Key Features |
Support dual core Intel Atom D525 2xGbE, 6xCOM, 4xUSB |
|
I/O Connectors |
|
|
Front Side I/O |
2 x USB Type-A Receptacle 1 x Power/HDD LED 1 x Power Reset Button 1 x Power on Button |
|
Back Side I/O |
2 x RJ-45(10/100/1000 Mbps) 1 x VGA 15P DSUB (male) 1 xHDMI 5 x RS232(2xOptional include 1x RS232/422/485) 4 x USB Type-A Receptacle |
|
Mechanical and Environment |
|
|
Dimensions (L x W) |
210mm x 125mm x 60 mm |
|
Color |
S:Black |
|
Construction |
Aluminum housing / Metal |
|
Power Input |
+12V DC IN (Lockable, Power Jack) |
|
Net Weight (kg) (without touch) |
1.99KG |
Application Range
Mechanical automation, medical equipment, play games, POS machine, automatic service and intelligent retail,Mobile vehicle-mounted computer solution
Packaging & Delivery
Packing detail: One pc in a gift box (L*W*H)353*279*45mm , 10 pc in a carto
Delivery: 3 days after payment
PAYMENT
We accept T/T, WESTERN UNION, MONEY GRAM, as sson as we receive the money ,we will delivery.
Shipping
We always use DHL, Fedex or EMS.
Our Services
Samples
If you need samples, you can just buy 1 pcs, and it is our MOQ.
OEM
We accept OEM, but the quantity should not be too small.
WARRANTY TERMS
We provide 3 year waranty
