| Model: | SO-SL |
|---|---|
| Brand: | - |
| Origin: | - |
| Category: | Industrial Supplies / Machinery / Engraving & Etching Machine |
| Label: | galvo scanner , galvanometer , scan head |
| Price: |
€1200
/ pc
|
| Min. Order: | 5 pc |
| Live Chat: | Last Online:09 Jan, 2014 |

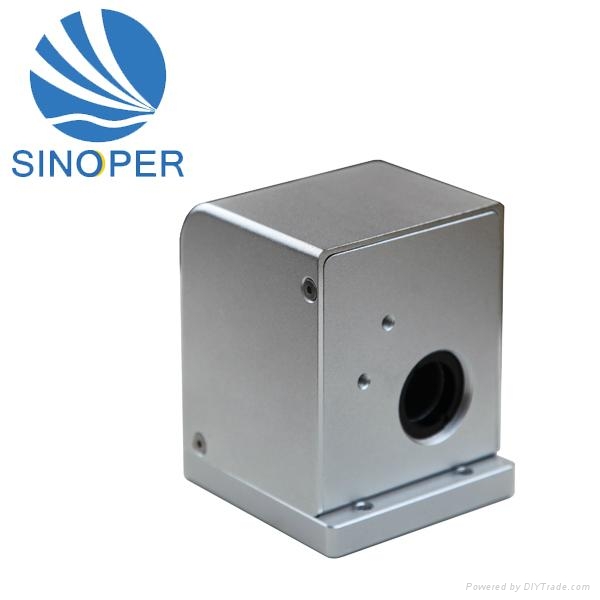

The advantage of the laser galvanometer scanner
1. Higher speed and high stable
2. Low temperature and stronger anti-interference.
3. High quality and good price
Specification:
|
Motor Specification |
|
|
Working Temperature |
25°C ± 20°C |
|
Linearity |
99.9% |
|
Setting Time |
≤ 0.4ms |
|
Scale Drift |
< 20PPM/°C |
|
Zero Drift |
< 10μRad. /°C |
|
Long Term Drift Over 8 hours |
< 0.5mRad |
|
RMS Current |
3A(Max) |
|
Peak Current |
15A(Max) |
|
Maximum Scan Angle |
± 20° |
|
Storage Temperature |
-10 to +60°C |
|
Resolution |
10μrad |
|
Repeatability |
12μrad |
|
Input Aperture |
12mm |
|
Frequency |
≤800Hz |
|
Serve Driver Board Specification |
|
|
Input Voltage |
± 15/24VDC@4A MAX.RMS |
|
Interface Signals |
Digital:XY2-100 |
|
Analog Signal Input Resistance |
200K ± 1%Ω |
|
Position Signal Input Resistance |
1K ± 1%Ω |
|
Position Signal Input Scale Factor |
0.5V/° |
|
Position Signal Output Scale Factor |
0.5V/° |
|
Working temperature |
0°C - 40°C |
