| Model: | GSM-8W |
|---|---|
| Brand: | SENGGANG |
| Origin: | Made In China |
| Category: | Security & Protection / Alarm |
| Label: | MMS alarm , SMS alarm , wireless alarm |
| Live Chat: |  | Last Online:15 Mar, 2022 |
1

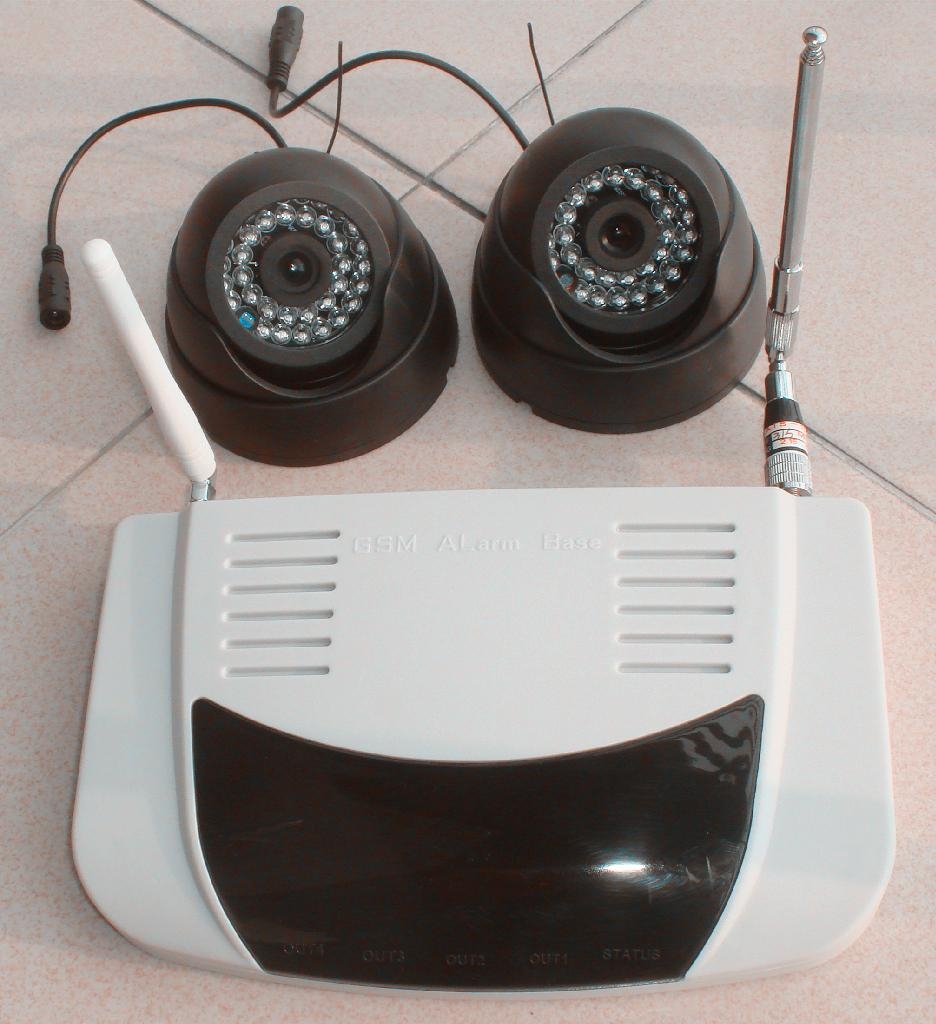

MMS alarm with 8 doze wireless camera &SD
8 wireless camera to base :100-500 M
Base can save picture into SD card
Base can send picture out by MMS
five group alarm phones
16 group wireless dector
3 group wire dector
| Specifications: | Com Function 1#-# 1#(camera 1-8)# (picture 1-20)#;ask camera picture by your mobiphone; 1#1#2#; ask camera 1 send 2 pictures to your mobiphone 2#-# 2#1#,Sounder immediately ; 2#0#,Stop Sounder 3#-# 3#1#, Start to listen-in ; 3#0#, Stop to listen-in 4#-# 4#1#, Start talking to the base ; 4#0#, Stop to talk to the base 5#-# 5#1#,make two point of Relay close, 5#0#,make two point of Relay open 6#-# 6#1#,Set Output 2 change to high, 6#0#,Set Output 2 change to low 7#-# 7#1#,Set Output 3 change to high, 7#0#,Set Output 3change to low 8#-# 8#1#, Set Output 4 change to high, 8#0#, Set Output 4 change to low 11#-# 11#1# (Arm) ;11#0# (Disarm)*; set the base alarm or disalarm 12#-# 12#(arm time 0000-2359)#(disarm time 0000-2359)# ; set arm time-gap or disarm time-gap 12#2000#0800#,set arm time from20:00 to 8:00 13#1# 13#1#,Need siren sound when alarming *;13#0#, No siren sound when alarming 14#-# 14#( picture 1-20)# ; sent picture to your mobiphone when alarm ,1* 17#-# 17#1#,Disable Relay close 3 Min when alarm*; 17#0#, Set Relay close 3 Min when alarm 18#-# Change password (1—6 bit). 18#(1-6 bit)#; 123456 * 19#-# 19#1# ;Set CHINESE version * ; 19#0#; Set ENGLISH version 20## Show MMS setup in the base; 20## 21#-# MMS seting : 21# APN# USER# PASS# IP# PORT# MMSHomepage# 30## show preset phone number and status in the base; 30## (31-35)#-# (31-35)# phone number # SMS (0,1)#MMS(0,1)# phone(0,1)#; 0--disable; 1--able 31#99997777#1#0#1# ,show sent message and call out 99997777 when alarm. 40#-# Show E-mail address in the base 40## 41#-# Set First E-mail address(0—31bit) ; 41#269999*163.c-o-m# 42#-# Set Second Email address(0—31bit) 50#-# Show monitoring center phone number. 50## 51#-# 51# (center phone )#( user ID)# (arm or disarm report)# (1-- report；0-- no report ) 52#-# arm or disarm report center numbers: 52# arm report number# disarm report number # 53#-# Set netware IP Address 53#( IP)# (PORT)# (user ID)# 54#-# Set SMS center number. 54# (mobiphone number) # (user ID)# 55#-# Set time interval reporting :55# (center number)#( Time interval 1-99hour)# (Type 0-2)# Type: 0---send SMS;1---send MMS;2--- send SMS + MMS 60## Show wire input setting status (61-63)#-# (61-63)# arm status(0-2) # Triggering mode(0-1) # camera Number(1-8) # SMS(1-24bit)# arm status:0--disarm,1--arm,2--24hours arm, Triggering mode:0—inport close,1-- inport open, camera Number(1-8):which camera will take picture when inport tragger, 70#-# Show wireless detector status (1-16)： 70# (1-16)# (71-86)#-# (71-86)#arm status(0-2)# camera Number(1-8) #SMS(1-24 bit)# ; arm status(0-2):0--disarm,1--arm,2--24hours arm, camera Number(1-8):which camera will take picture when wireless detector tragger. 90#-# Show wireless camera setting status: 90# camera number(1-8)# (91-98)#-# (91-96)#sensitivity of camera(0—99)# picture size(0—2) #arm status(0-2)# SMS(1-24 bit)# ; sensitivity:0—close;1-high sensitivity; 99 is low sensitivity,picture size: 0 --160x128; 1*-- 320x240; 2 -- 640x480,arm status:0--disarm,1--arm,2--24hours arm. ‘ * ’ stand for approves |
|---|---|
