| Model: | YK2160 |
|---|---|
| Brand: | HUAZN |
| Origin: | Made In China |
| Category: | Industrial Supplies / Mining Machine |
| Label: | screen mesh , vibrating screen , mesh |
| Price: |
US $8000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:19 Apr, 2019 |

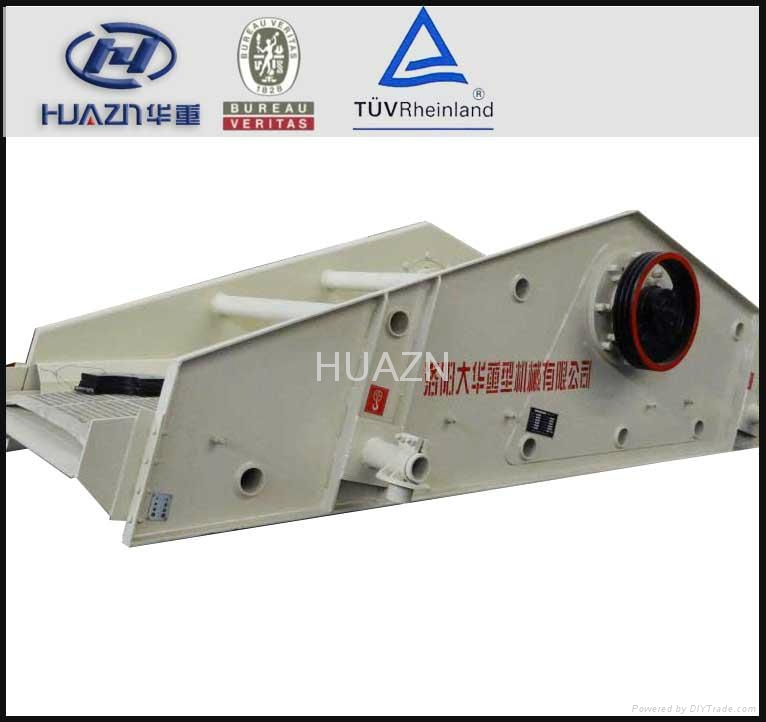

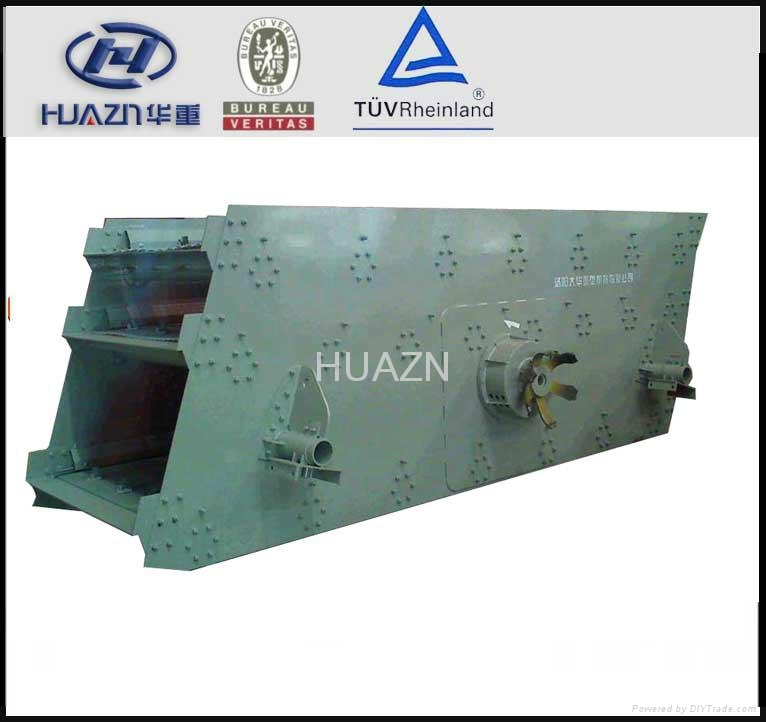

YK series vibrating screen main advantages:
1. Japanese technology
2. High productivity
3. Easy to maintain
4. High-efficiency
YK series Vibrating Screen General Description:
The circular vibrating screen is used for material screening and grading and is applicable for metallurgy, chemical industry, coal and buildingetc. There are two types: hanging and seating. The models have monolayer, double-layer, three-layer, autogenous-centre vibrating screen and linear vibrating screen, etc.
YK series Vibrating Screen Main Technical Parameter:
|
Type |
Model |
Layer of screen |
Mesh size(mm) |
Double amplitude |
Vibrating frequency |
Max. feed size(mm) |
Capacity t/h) |
Power (kw) |
Weight (kg) |
|
Eccentric elliptical vibrating screen |
YK1437 |
1/2 |
3-50 |
6-8 |
970 |
200 |
240 |
11/15 |
3087/4400 |
|
YK1445 |
1/2 |
3-50 |
6-8 |
970 |
200 |
272 |
11/15 |
3523/4750 |
|
|
YK1545 |
1/2/3/4 |
3-50 |
6-8 |
970 |
200 |
285 |
11/15/22/30 |
3292/4893/6375/8332 |
|
|
YK1645 |
1/2 |
3-50 |
6-8 |
970 |
200 |
310 |
15/18.5 |
3590/5750 |
|
|
YK1836 |
2/3 |
13-100 |
6-8 |
970 |
200 |
81-742 |
22 |
5480/7085 |
|
|
YK1845 |
2/3 |
13-100 |
8 |
970 |
200 |
97-891 |
30 |
5736/7850 |
|
|
YK1854 |
2/3 |
13-100 |
8 |
850 |
200 |
113-680 |
30 |
7985/9750 |
|
|
YK1860 |
1/2/3 |
13-100 |
8 |
850 |
200 |
115-756 |
22/30/37 |
6878/8300/10350 |
|
|
YK2052 |
2/3/4 |
13-100 |
6-9 |
850 |
200 |
126-728 |
30/37/45 |
8250/9995/12500 |
|
|
YK2060 |
2/3 |
13-100 |
6-9 |
850 |
200 |
144-840 |
22/30 |
7500/10570 |
|
|
YK2145 |
2/3 |
13-100 |
8 |
850 |
200 |
111-660 |
22/30 |
6950/9900 |
|
|
YK2160 |
2/3 |
13-100 |
6-9 |
850 |
200 |
150-882 |
37/45 |
8700/10750 |
|
|
YK2452 |
2/3 |
13-100 |
6-9 |
850 |
200 |
151-873 |
37/45 |
11050/11758 |
|
|
YK2460 |
2/3 |
13-100 |
6-9 |
850 |
200 |
172-1000 |
37/45 |
8850/11050 |
|
|
YK3052 |
1/2 |
13-100 |
6-9 |
850 |
200 |
189-1092 |
30/45 |
9225/10079 |
|
|
YK3060 |
1/2 |
13-100 |
6-9 |
850 |
200 |
216-1260 |
30/55 |
9800/11000 |
