Material

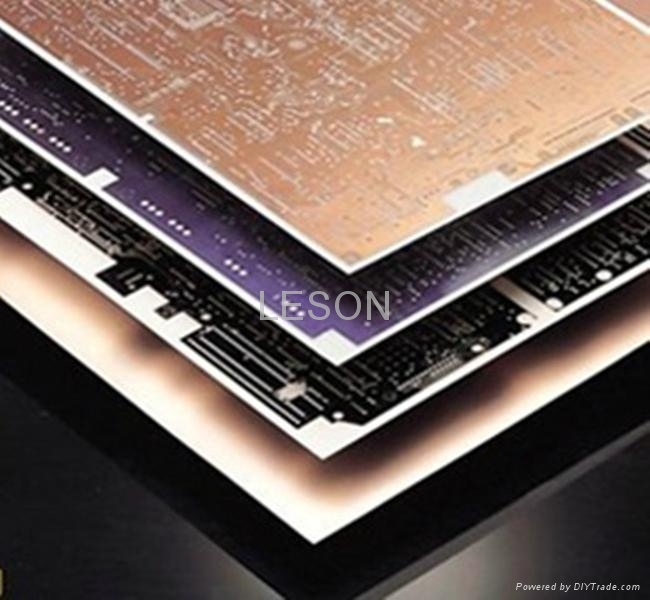

Sandwich structure, which includes layers of conductor, insulator and met High thermal conductive AL base CCL al base (Aluminum Based).


Standard Size (mm)

500×610mm,550×610mm,550×1220mm,550×1220mm,1000×1220mm,1100×1220mm


Circuit Layer(copper foil )

18μm,35μm,70μm,105μm(Hoz,1oz,2oz, 3oz)


Thermal Dielectric Layer Thickness

75μm,100μm,125μm,150μm,(3mil,4mil,5mil,6mil)


Thickness

0.8mm,1.0mm,1.2mm,1.5mm,1.5mm,2.0mm


Aluminum Substrate Type

1100,1060,3003,5052,6061 Anodization


Masking Film

PE,PET,PI


Using scope

 LED lighting, public lighting, Backlight module, outdoor LED display , Industrial electronics


~AL base thermal conductive CCL provides the advantages of high thermal conductivity, Excellent solder heat endurance, Excellent Breakdown Voltage, reliability, Thermal conductivity is about five-ten times higher than the FR-4, PCB produced by the subtract can transfer heat, which is electronic components generate, throughing the substrate structure rapid conduct to the back-end cooling base or other cooling modules. Aluminum Copper Clad Laminate Sheet is a sandwich structure, which includes layers of conductor, insulator and metal base. In general, this insulator is made of epoxy resin and high thermal Conductivity filler. The products have been through a number of demanding for a long time environmental testing, access to international certification.
