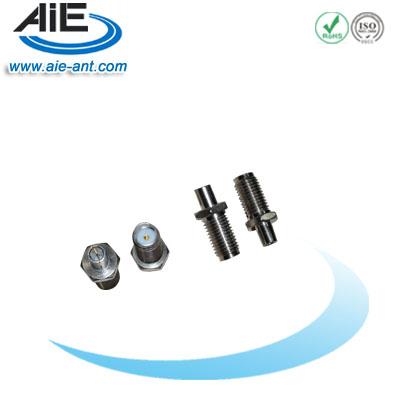

F connector- UM175 huawei adapter
Product Description
Model
AIE-adapter-F F- UM175
Major Technical Characteristics
Type
AIE-F female- UM175
Impedance
50Ω
Frequency Range
DC~6GHz
Center conductor retention force
≥0.57 N
Insertion Loss
≤0.20dB
Voltage Standing Wave Ratio
Straight ≤1.22/3GHz
Right angle ≤1.30/3GHz
Durability(mating)
≥500(cycles)
Material & Plating
Body
Brass
Nickel plated
Pin contact
Brass
Gold or silver plated
Socket contact
Beryllium-copper Customized)
Gold or silver plated
Resilient contact
Beryllium-copper
Gold plated
Insulator
PTFE
Crimp ferrule
Copper alloy
Nickel plated
O-ring sealing
6146 silicone rubber
| Price Terms: | EX-WORK |
| Payment Terms: | TT/WU/PAYPAL |
| Packing: | 100PCS/CARTON |
| Lead Time: | 5-7 days after payment |
| |
Product Image
Img 1
Img 2
