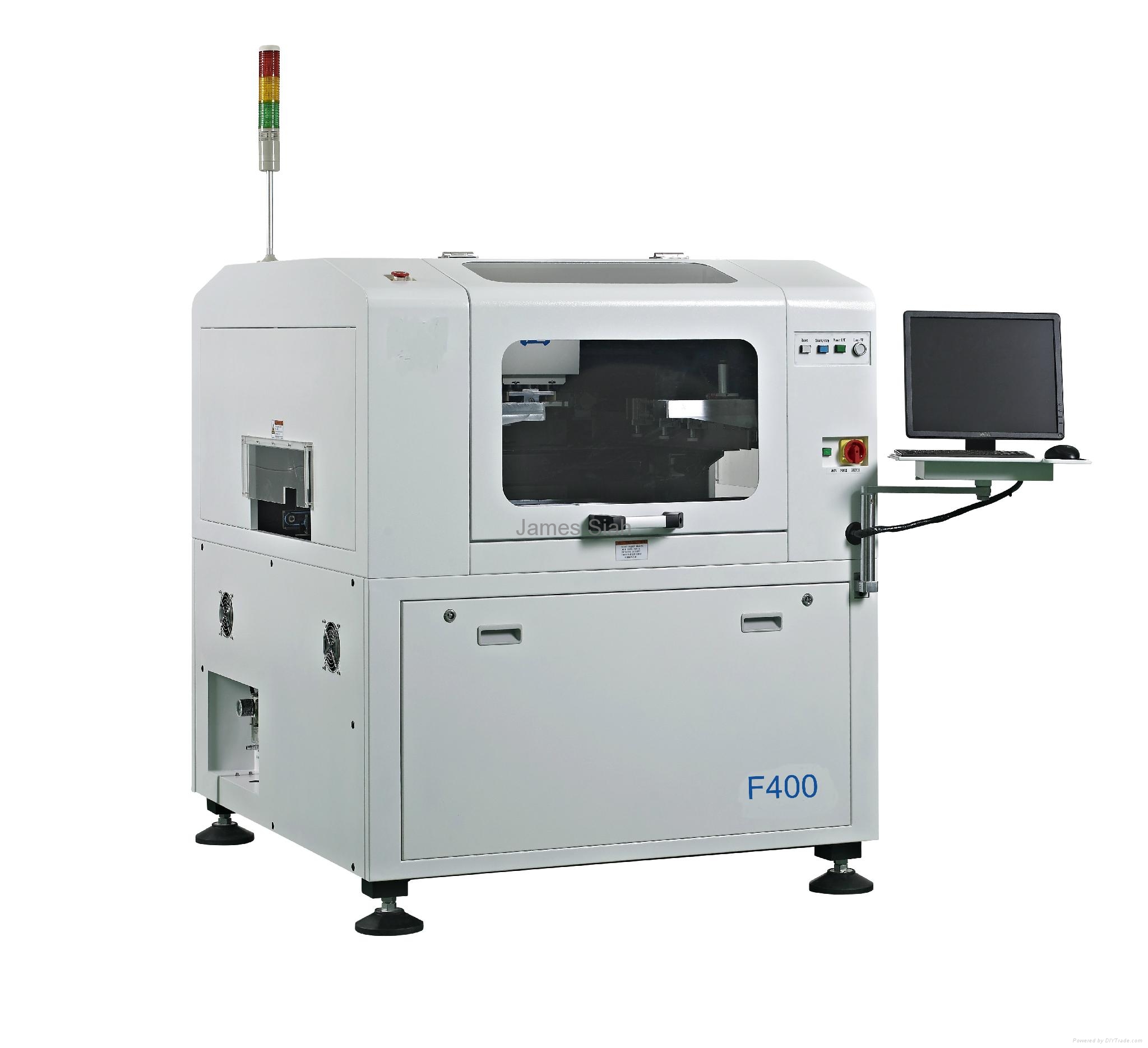

F400 is a high precision automatic screen printer designed for high precision screen printing or stencil printing in SMT industry.

PCB Size：50mm x 50mm ~400 mm x 340 mm
PCB Thickness：0.6 mm ~ 6 mm
FPC Thickness：less than 0.6 mm (excluding jig)

Applicable pitches of Components
SMT Components such as resistors, capacitors, inductors, diode and triode: 01005, 0201, 0402, 0603, 0805, 1206 and other specifications
IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3 mm; support BGA, CSP packaging, min. ball diameter of 0.2 mm
Applicable PCB types
Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics, medical power equipment, aerospace and aviation, besides general electronics products.

Specification
* The following data is measured under environment temperature of 25 ℃ and humidity of 60%.

            Item 　 　                Parameter
Repeat Position Accuracy 　±0.01mm(test data and method can be provided)
Printing Accuracy　 　±0.025mm(test data and method can be provided)
Printing Speed/Cycle Time 　<9s (Exclude Printing & Cleaning)
Products Changeover　 　<5Min
Screen Stencil Size/Min 　470mm X 370mm
Screen Stencil Size/Max 　737mm X 737mm
Screen Stencil Size/Thickness 　20mm ~ 40mm
PCB Size/Min 　50X50mm
PCB Size/Max 　400X340mm
PCB Size/Thickness 　0.6~6mm
PCB Warpage Ratio 　＜1%（Based on diagonal length）
Bottom of Board Size　 　10mm
Edge of Board Size　 　3mm
Transport Height 　900±40mm
Transport Direction 　Left-Right; Right-Left; Left-Left; Right-Right
Transport Speed 　100-1500mm/sec programmable control

Board Location Support System Magnetic pin/Side support block/Flexible automatic pin（optional）
 Clamping System 　Elastic side clamping/ Z-direction board pressing (optional, but not s ested)
Print head 　Programmable cylinder pressure control
Squeegee Speed  　10~150mm/sec
Squeegee Pressure 　0~0.5MPa  with dial reducing valve
Squeegee Angle 　60°(Standard )/55°/45°
Squeegee Type 　Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized.
Stencil Separation Speed 　0.01~10mm/sec programmable control
Cleaning Method 　Dry-type, wet-type (arbitrary combination with programmable control）
Table Adjustment Range 　X: ±4mm;Y:±6mm;θ:±2°
Type of Fiducial Point　 　Standard geometry shape of fiducial point, pad /hole
Camera System 　Single digital camera for upward/downward vision system
Air Pressure 　4~6Kg/cm2
Air Consumption　 　About 0.07m3 /min
Control Method 　PC Control
Power Supply　 　AC:220±10%,50/60HZ 1Φ 1.5KW
Machine Dimensions 　1220mm(L) x 1410mm(W) x 1550(H)mm(Exclude the height of lighthouse )
Weight 　Approx:1000Kg
Operation Temperature 　-20°C ~ +45°C
Operation Humidity 　30%~60%
