LED Panel Light for office lighting

Model:HGP-LP0303S-12W
Brand:Hans GP
Origin:Made In China
Category:Consumer Electronics & Lighting / Lighting / LED Lighting
Label:LED Candle Light , LED Bulb Light , LED Panel Light
Price: -
Min. Order:5 pc
Inquire Now Add to Basket

Member Information

Detail

Product Description

Description:

1. Power: 12

2. Size: 300*300*9.8mm

3. Luminous Flux: 900-1000Lm(±5%)

4. Input Voltage: 85-265VAC

5. Color Temperature: 2700K-7000K

6. Certification: CE,ROHS,TUV,EMC,LVD

7. Warranty: 3years

8. Power Factors: ≥0.9

This panel light is a kind of superior indoor lighting lamp, the edge frame is made of 6063 aluminum by anodic oxidation. It adopts high brightness SMD2835 as light source,  the LED light becomes an equal panel lighting effect after permeating the light guide plate with high transmission rate. The LED panel lamp is mainly used for meeting room, negotiation room, hotels and other indoor lighting places, etc.


The unique design of the LED panel lamp makes the entire light get well and equal illumination, which can reduce the tired feeling of eyes. Considering from green light design, it has smooth outside appearance and low power consumption, and the materials is environment friendly. It does better than the Grille lamp on lighting efficiency and brightness. It is going to replace the Grille light with source of T8 fluorescent tubes. The lifespan of LED panel lamp is 10 times of the traditional tube lights, but the power consumption is only a half.

It has ultra thin design appearance and 4 edges connected with each other smoothly, which makes perfect effects.

Our Panel Light has triac dimmer and PWM dimmer function. It adopts isolated MW power supply and driven by constant current,Dimmable rank: 1%-100%. The efficiency of power supply can reach to 95%, and power factor will be more than 0.95. It has features of no pollution to electrified wire netting, stable function, safe and reliable.

Competitive Advantage:

  • Perfect side-lighting source with ultra thin frame technology.
  • Adopt Mitsubishi (Japan) light guide plate with highest >90% light transmittance
  • Environmentally friendlyNo IR & UV light radiation, No glare or interferenceconforming to CE
  • Available modes: Standard, PWM dimmable, Triac dimmable.
  • Long life time 62,000 Hours life span of 90energy saving hence lower electric costs.

Specifications:

Dimension

300*300*9.8mm

Wattage

12W

Luminous Flux

>1000LM

LED Source

120pcs SMD 2835 Epistar

Input Voltage

AC95-240V, 50/60HZ

Housing

PMMA+Aluminum

CCT

WW2700-3200K, NW4000-4500K,CW 6000-6500K

CRI

>80Ra

Dimming Type

PWM Dimming

Frame

Unprocessed virgin aluminum/White coating aluminum

Operating Temp. & Humidity

-10 ~ +65 cesius, 10~80%

Storage Temp. & Humidity

-40 ~ +85 cesius, 10~80%

IP Rating

IP42

Beam Angle

120°

Installation

Suspended/Mounted/Recessed

Gross Weight

5g/pc

Package

1pc/box , 5pcs/carton

Carton Size

645x645x60m

Expected life span

50,000 Hrs

Certification

CE, RoHS

Applications:

•General Housing: Homes, Offices, Schools.

•CommercialShopping malls, Hospitals.

•Industrial: Factories, Photo Studios.

•Presentations: Museums, Exhibitions.


Product Image

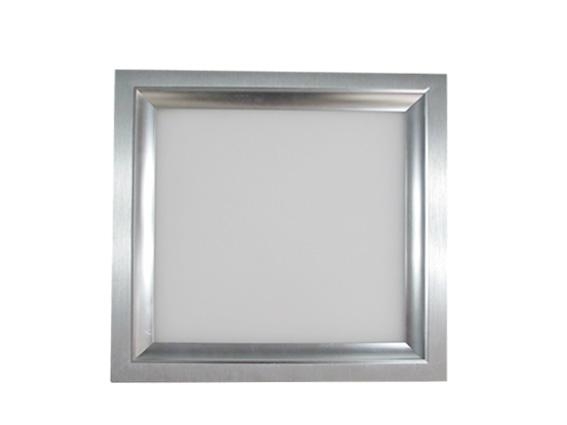

LED Panel Light for office lighting  1
Img 1
LED Panel Light for office lighting  2
Img 2
LED Panel Light for office lighting  3
Img 3
LED Panel Light for office lighting  4
Img 4
