| Model: | GWF-3S03 |
|---|---|
| Brand: | OEM or Ogemray |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment |
| Label: | - |
| Price: |
-
|
| Min. Order: | 2000 pc |
| Last Online:26 Nov, 2013 |
1. Introduction

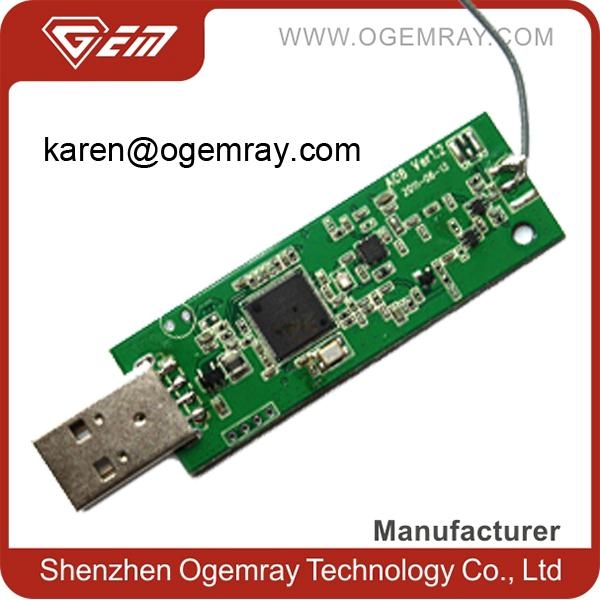

GWF-PA08 is a high power WLAN module supporting IEEE 802.11 b/g/n standards, its
flexible DATA and RF interface design allows it can be used in many different applications
which a further wireless connection is required.
This low cost compact WLAN module is designed for the wireless connectivity of products
with embedded system. It operates in 2.4GHz ISM frequency band, applies a highly integrated
MAC/BBP and RF single chip RT3070 with 150Mbps PHY rate supporting. I
1.2 Features
802.11b: 1, 2, 5.5, 11Mbps;
802.11g: 6, 9, 12, 18，24, 36, 48, 54Mbps 802.11n:
(20MHz) MCS0-7, Support up to 72Mbps
(40MHz) MCS0-7, Support up to 150Mbps
OFDM, Peak rate 150Mbps, Peak throughput 90Mbps.
Security support for 64/128 WEP, WPA, WPA2, TKIP, AES
Transmit Output
Power (Typical on
board)
Transmit Output
Power (Typical on
board)
Receive Sensitivity
(Typical)
|
Operating Frequency |
2.412GHz ~ 2.4835GHz , ISM band |
|
Protocols |
802.11b: CCK, QPSK, BPSK, 802.11g/n: OFDM |
|
Antenna |
External 50 ohm antenna via cable or SMA connector |
|
Security |
64/128 WEP, WPA, WPA2, TKIP, AES |
|
Transmit Output Power (Typical on board) |
11b: 26±1.0dBm @ 11Mbps |
| 11g: 23±1dBm @ 54Mbps | |
| 802.11n: (HT20), 22+/-1dBm, 802.11n: (HT40), 21+/-1dBm, | |
|
Receive Sensitivity (Typical) |
11b: -88dBm @ 11Mbps; 11g: -76dBm @ 54Mpbs. |
| 802.11n: (HT20), -75dBm@MSC7, (HT40),-73dBm@MSC7 | |
|
Operating Voltage |
5.0VDV± 5% |
|
Operating Current |
<320mA |
|
Bus Interface |
USB 2.0/USB1.1 |
|
USB Interface |
6-pin(2.0mm)or 4-Pin(2.54,2.0mm) pitch pin header or Mini USB or Type A USB connector |
