Model: | Z61H-1500LB-10 |
---|---|
Brand: | ZY |
Origin: | Made In China |
Category: | Industrial Supplies / Machine Hardware / Valves |
Label: | power station valve , forged valve , high pressure valve |
Price: |
US $5000
/ pc
|
Min. Order: | 1 pc |
Live Chat: | Last Online:29 Jan, 2016 |

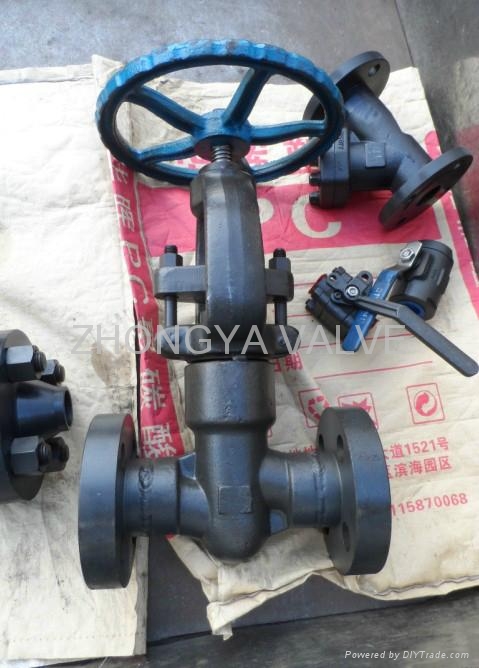

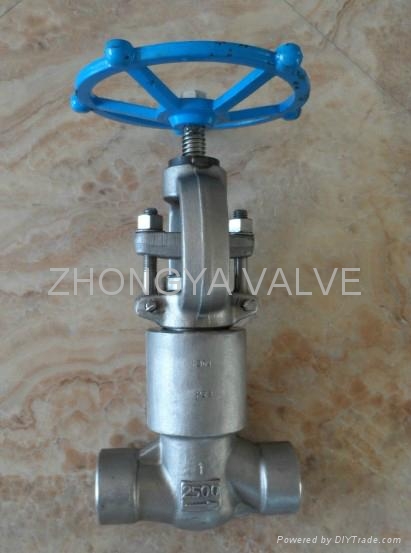

Power Station SW Gate Valve 1500LB
Design standard: API6D
Material Pressure-Temp Standard: ASME B16.34
Flanged ends: ASME B16.5.
Test &inspection: API6D, API598.
Thread ends: ASME B16.11
Socket welded ends: ASME B1.20.1
Material: ASTM A216 WCB. ASTM 351 CF8 /CF8M. 304SS. 316SS Carbon steel.
Design Description
Full port design
OS&Y Outside screw and yoke
BB. Bolted Bonnet
Flexible wedge, Fully guided
Choice of solid or split wedge
Renewable seat rings
Forged T-head stem
Rising stem and non-rising handwheel
Flanged or butt welding ends
Class150LB--2500LB 2"--48"
