Polyurethane PU high pressure foaming machine
Product Description
Function characteristics
The HMI Chinese display interface, show more clearer, operating more convenient
Adopting PLC programmable controller, more low failure rate, long life expectancy
The way the foam gun clean, do not need to solvent cleaner and reduce the cost
Has the ration perfusion and continuous infusion two functions, suitable for different occasions
Material tank with lack of material alarm function, can supply to be automatic feeding device
Technology parameters
Applicable foam kinds: all kinds of hard bubble, half hard bubble
The biggest injection flow: 6 L/min
Repeat precision injection: 5% or error
Raw material timing range: 0-99.99 S
Material temperature scope: 0-60 ℃
Equipment power loss: AC220V, more than 1 KW
Equipment shape size: 430 (long) * 380 (wide) * 900 mm (high)
Equipment weight: 50 Kg
The main purpose
Mainly used for various the rigid polyurethane foams, half hard bubble of quantitative perfusion and continuous infusion. Especially suitable for all kinds of home appliance of thermal insulation layer fill with refrigeration.

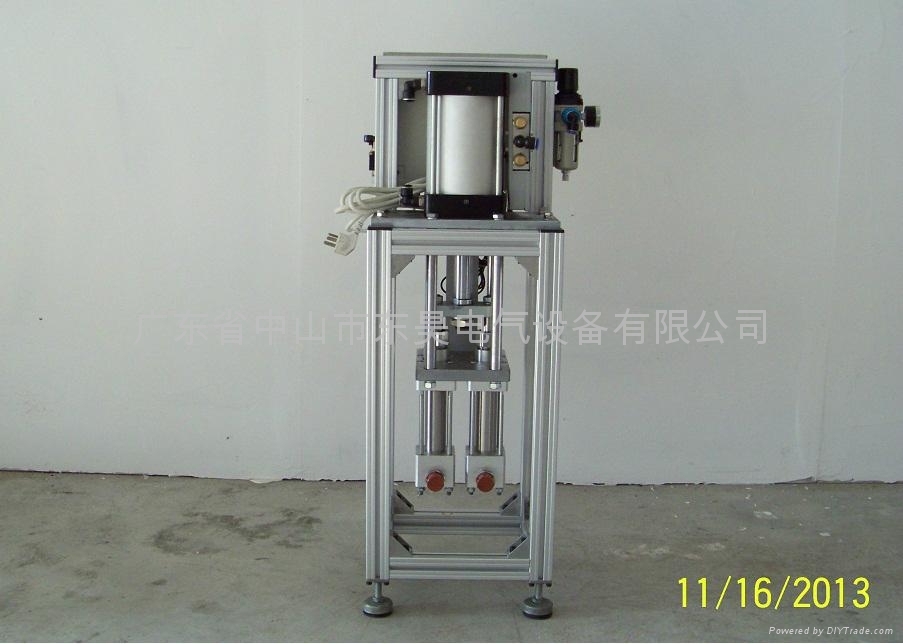

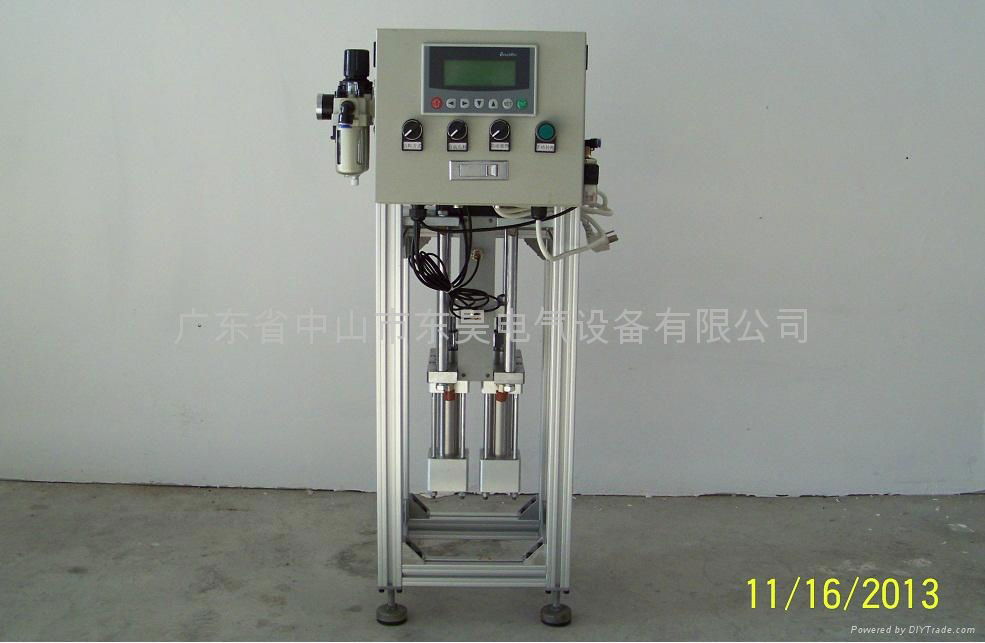

Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
