GPS antenna

Model:AIE-ANTGPS-HH
Brand:AIE
Origin:Made In China
Category:Electronics & Electricity / Antenna
Label:GPS and GSM antenna , combination antenna , car antenna
Price: US $6.8 / pcs
Min. Order:1 pcs
Inquire Now Add to Basket

Member Information

Detail

Foshan ai a communication equipment co., LTD

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:10 Aug, 2023

Product Description

          Item              Specifications

        Model                            AIE-ANTGPS-HH

        GPS Antenna

       Dielectric    Center Frequency    1575.42MHz

       Band Width                        CF± 5MHz

       Polarization                      RHCP

       Gain                             5dBic(Zenith)

       V .S.W.R                         <1.5

       Impendance                       50Ω

       Axial Ratio                      3dB(max)

       LNA    Gain                      28± 2dB

      Noise Figure                      <1.5

      Ex-band Attenuation             12dB@CF+50MHz/16dB@CF-50MHz

      V .S.W.R                        <2.0

      Supply Voltage                  2.2~5V DC

      Current Consumption             5~15mA




Price Terms:EX-WORK
Payment Terms:TT/WU/PAYPAL
Packing:100PCS/CARTON
Lead Time:5-7 days after payment

Product Image

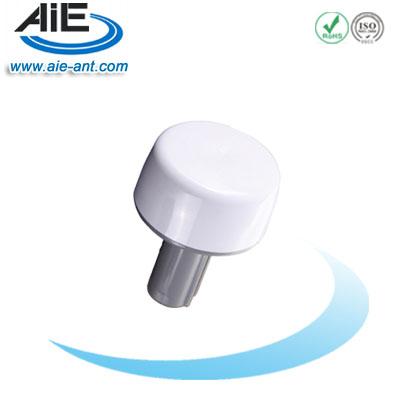

GPS antenna 1
Img 1
GPS antenna 2
Img 2
GPS antenna 3
Img 3
