| Model: | AIE-ANTGSM-P02 |
|---|---|
| Brand: | AIE |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Antenna |
| Label: | PCB antenna , internal antenna , built-in antenna |
| Price: |
US $0.5
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:30 Apr, 2024 |
|
●Electrical Specifications: |
||
|
Model |
AIE-ANTGSM-P02 |
|
|
Frequency Range |
890-960/1710-1880MHz |
824-896/1850-1990MHz |
|
Gain |
2.5dBi |
|
|
VSWR |
≤2.0 |
|
|
Polarization |
Vertical |
|
|
Impedance |
50Ω |
|
|
Maximum Input Power |
50W |
|
|
Length |
60mm |
|
|
Connector |
IPEX/MCX |
|
|
Operating Temperature |
-40℃ to+80℃ |
|
|
●Mechanical Specifications: |
||
|
Antenna Dimension |

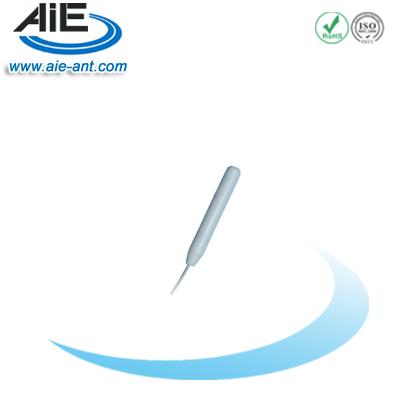

Φ6×43mm |
|
|
Weight |
5g |
|
| Price Terms: | EX-WORK |
|---|---|
| Payment Terms: | TT/WU/PAYPAL |
| Packing: | 200PCS/CARTON |
| Lead Time: | 5-7 days after payment |
