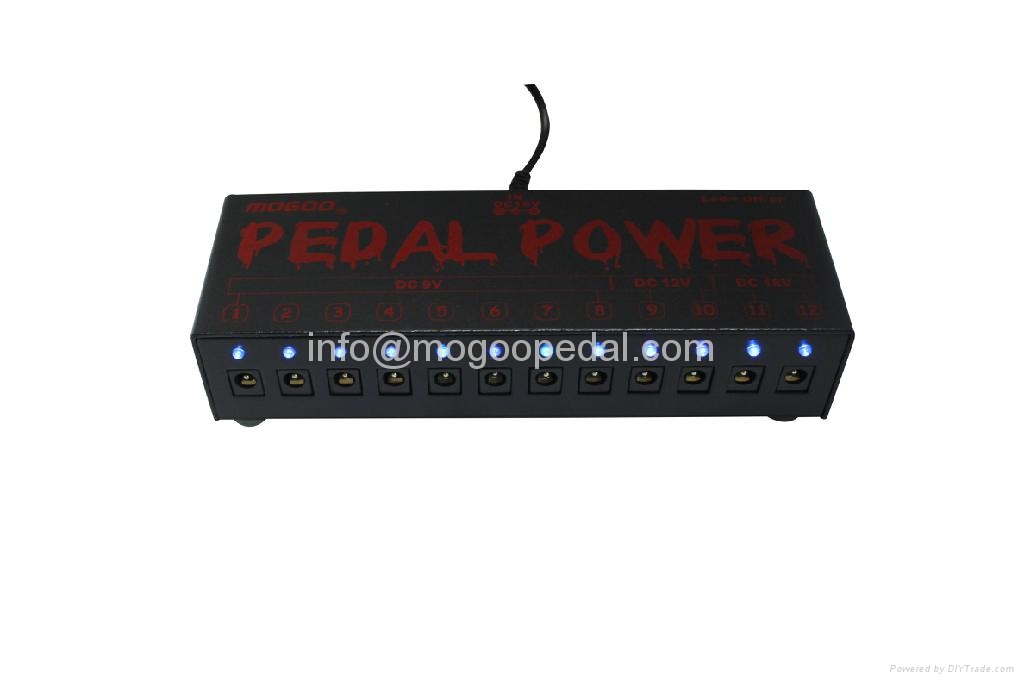

Mogoo MPS-12 Guitar Effect Pedals Power Supply

            12 Isolated Output 9V 12V 18V

 IC and a special filter circuit, low noise, low ripple.
Features:
 *100% brand new and unused
 *12 Isolated Output  .
 *Isolated Short Cricuit/Overcurrent Protected.
 *Powers  For 9V/12V or 18V  PEDAL.
 *Bright Blue LED For Pedal Board Lighting & Short Cricuit Indicate.


Includes Cables.
Dimension: 150 x 50x 30mm
Net weight: 388g
Color: black
power: AC 110v-240V
Input: DC 18V


Output:

12 Isolated Output
 * 6 ways: 9V 100mA
 *1 way :9V 300mA

 *1 way :9V 500mA

 *1 way :12V 100mA
 *1 way:12V 300mA

 *1 way :18V 100mA

 *1 way:18V 300mA

Package includes:
1 x Mogoo MPS-12 Power supply
1 x Adapter
12 x Cable

PART NAMES AND FUNCTIONS
1.Switch for LED lights:Turn the switch towards those LED lights,normally all lights would go on after the power is connected.If you don`t want all LED lights,please turn the switch back.The front panel of this unit has 12 high-brightness LED lights working as indicators,as well as lighting for pedal board.
2.DC 18V INPUT:Please plug in the output of power adapter here,and do not use adapter from elsewhere
3.OUTPUT 1-6:All DC 9v power output with the maxinmum volume of 100mA,are suitable for ordinary analog effectors.Under the circumstances of all LED lights on,instantaneous overcurrent in certain output would lead to the corresponding LED light`s flash and the currents of this channellimit to 100mA.That is to say,output 1-6 might not be able to work properly if the connected digital effectors are of larger power consumption,then you need to use output 7 OR 8.
4.OUTPUT 7 OR 8:Also DC 9V Power output with maximum volume of 300 OR 500mA,is suitable for digital effectors and DC 9V low-power digital guitar amplifiers.When instantaneous overcurrent occuss in this channel,the corresponding LED light would be flashing and the currents limit to 300 OR 500mA.
5.DC12 OUTPUT:The maximum output current is 100mA And 300mA to choose .
6.DC18 OUTPUT:The maximum output current is 100mA  And 300mA to choose .
