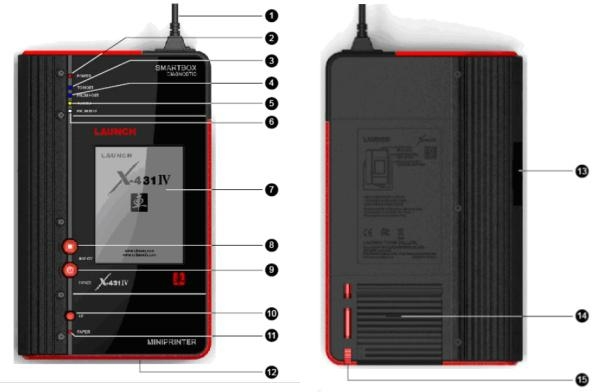

Launch X431 IV auto diagnostic tool x-431 IV

Specifications

X431 IV Auto Scanner is the newly auto scanner from LAUNCH, which improved the features and function based on all feedback.

Launch X-431 IV Auto Scanner Master Update Version

Highlights and Notice:

1. Dealer Code: 86A
2. Update: Free Online Update for One Year
3. Languages: English, German, Spanish, Portuguese, Turkish, Russian, French, Polish, Italian, Japanese, Hungarian, Dutch, Greek, Arabic, Serbian, Romanian, Farsi, Simplified Chinese, Traditional Chinese
(all the languages do not support to all the car modules, some modules only have English Version, please pay attention to it.)
4. There is no Ford 20pin Connector in this package. if you want, you need to buy it separately here

Launch X431 IV Specifications:

1.CE certification

2.New X-431 scanner

3.Display Screen: 240X320 LCD

4.CF Card: 1GB

Description:

Launch X431 IV Auto Scanner X431 Master perfect replacement. Better performance than X431 Master, can support Australian Holden and Ford, Indian car model, and also support 12V/24V car models.

X431 IV Auto Scanner is the newly auto scanner from LAUNCH, which improved the features and function based on all feedback from the user's served by the X431 in their respectively fields of works. Compact Smartbox , main unit, printer, powerful diagnostic functions, fast and convenient update, universal 16PIN connectors, make it the first choice for technicians. X-431 IV Auto Scanner is the standard equipment for technicians.

Launch X431 IV Performance / Speed:

The X431 IV Auto Scanner is now a whole unit (permanently connected) means the communication time between Smartbox and main unit is reduced.

Appearance: The X431 IV Auto Scanner has a new designed and cover made from high quality materials to stand in a new market.
Connector: The X431 IV Auto Scanner has a new connector to replace all CAN Bus and OBD Connector called OBDII 16E connector.
Power source: The X431 IV Auto Scanner can support 12V and 24V means not only small vehicles but also big vehicles can tested.
Speed: faster than X-431 Master
Measurement: smaller than X-431 Master

Launch X431 IV Supported Car List:

Acura, Changan, Daweoo, Gaz, Hafei, Huachen, Jiao, Lexus, Xiali, Xinkai, Benz, Fiat, Holden, Maruti, Opel, Peugeot, Saab, Ssangyong, Tata, Changhe, Flyer, GMSA, Infiniti, Mahindra, Perodua, Proton, Qirui, Tlisuzu, Zhongshun, EOBD2, Euroford, GM, Jaguar, Renault, Smart, Sprinter, USAFord, VAZ, VW, Changcheng, Dacia, Ford, HaoQing, Jinlong, Liuwei, Rover, ZhongTai, ZhongXing, Bxfiat, HM, Isuzu, Jacty, JPIsuzu, Mazda, Seat, Skoda, Suzuki, BMW, Daihatsu, Mitsubishi, Porsche, Toyota, Volvo, Audi, Chr er, Citroen, Hyundai, Kia, Lancia, Landrover, Nissan, Romeo and Subaru.

Launch X431 IV Feature:

Operating System: LINUX

Memory: 16M

CF Card: 1GB

Main Unit I/O: Universal Serial Bus /Standard Parallel port

Main Unit Voltage: DC12V / 24V

Main Unit Power: approximately 9W

Printer: Thermal mini-printer

Display Screen: 240X320 LCD with touch screen and backlit

Components: Main unit, SMARTBOX and MINIPRINTER

Ambient temperature: -10-55°C

Relative Humidity: <90%
