| Model: | 8/6E-AH |
|---|---|
| Brand: | TONGDA PUMP & VALVE |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Flat & Rolled Metallic Materials |
| Label: | slurry pump , slurry pump parts , ah pump |
| Price: |
US $900
/ pc
|
| Min. Order: | 800 pc |
| Live Chat: | Last Online:25 Sep, 2013 |
Factory General Introduction:
We, Hebei Tongda Pump & Valve Group Co., Ltd. are second largest slurry pump manufacturer in China.
Main Pumps are: slurry pumps, gravel pumps, sump pumps, sand pumps, ash pumps and various pump spare parts etc.
You are welcomed to visit our company when you are in China!
Production Advantage:
1. -----High Quality
2. ----Competitive Price
3. -----V casting(Vacuum Casting)

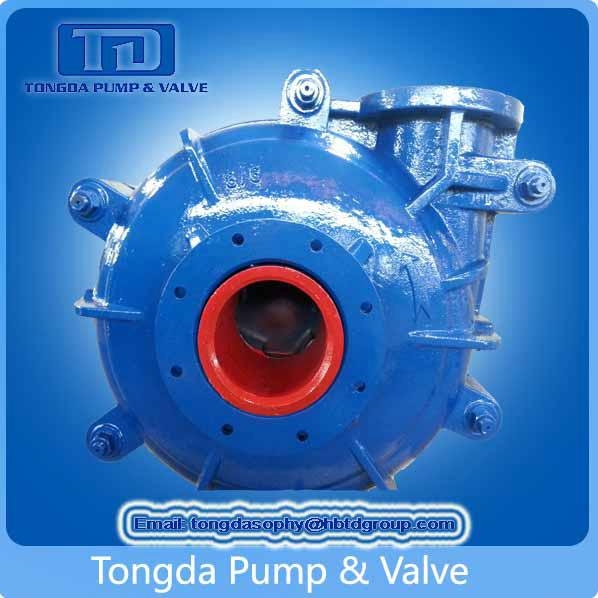

Slurry Pump Structure:
|
1.Pump head |
Double case pump is vertically split, the discharge can be installed at 8 different positions with an interval of 45 degree |
|
2.Bracket |
Horizontal split or cantilever |
|
3.Shaft seal for choosing |
Expeller seal and packing seal; Packing seal; Mechanical seal |
|
4.Driving |
Directly driven; Directly driven via hydraulic coupling; Belt-driven |
Slurry Pump Features:
|
1. capacity |
10.8~5400m3/h |
|
2. Head |
3~118m |
|
3. Motor power |
15~1200kw |
|
4.Product standard |
ISO9001~2008; CE |
Pump Performance:
| Model | Capacity(m3/h) | Capacity(L/s) | Head(m) |
| 1.5/1AH | 12.6-28.8 | 3.5-8 | 6-68 |
| 1.5/1AHR | 10.8-25.2 | 3-7 | 7-52 |
| 1.5/1HH | 16.2-34.2 | 4.5-9.5 | 25-92 |
| 2/1.5AH | 32.4-72 | 9-20 | 6-58 |
| 2/1.5AHR | 25.2-54 | 7-15 | 5.5-41 |
| 3/2AH | 39.6-86.4 | 11-24 | 12-64 |
| 3/2AHR | 36-75.6 | 10-21 | 13-39 |
| 3/2HH | 68.4-136.8 | 19-38 | 25-87 |
| 4/3AH | 86.4-198 | 24-55 | 9-52 |
| 4/3AHR | 79.2-180 | 22-50 | 5-34.5 |
| 4/3E-HH | 126-252 | 35-70 | 12-97 |
| 6/4AH | 162-360 | 45-100 | 12-56 |
| 6/4AHR | 144-324 | 40-90 | 12-45 |
| 6/4S-HH | 324-720 | 90-200 | 30-118 |
| 8/6AH | 360-828 | 100-230 | 10-61 |
| 8/6AHR | 360-828 | 100-230 | 7-52 |
| 8/6T-HH | 576-1152 | 160-320 | 32-95 |
| 10/8M | 540-1228 | 150-340 | 15-61 |
| 10/8MR | 540-1188 | 150-330 | 10-42 |
| 10/8AH | 612-1368 | 170-380 | 11-61 |
| 10/8AHR | 540-1188 | 150-330 | 12-50 |
| 12/10AH | 936-1980 | 260-550 | 7-68 |
| 12/10AHR | 720-1620 | 200-450 | 7-45 |
| 14/12AH | 1260-2772 | 350-770 | 13-63 |
| 14/12AHR | 1152-2520 | 320-700 | 113-44 |
| 16/14AHR | 1368-3060 | 380-850 | 11-63 |
| 16/14AH | 1669-3798 | 472-1055 | 14-75 |
| 18/16AH | 2160-5040 | 600-1400 | 8-66 |
| 20/18AH | 2520-5400 | 700-1500 | 13-57 |
Pump Drawing:
| Metal Liner | 1 Linerc 2 Frame plate 3 Rear 4 Cover plate 5 Front liner 6 Impeller 7 Expeller ring 8 Shaft sleeve 9 Expeller;10 Bearing assembly |
| Rubber Liner | 1 Frame plate; 2 Expeller ring 3 Packing gland 4 Shaft sleeve 5 Expeller 6 Frame plate liner 7 Impeller 8 Cover plate liner 9 Cover plate |
More information about our slurry pumps, please contac us freely.
Ms. Sophy
Export department
Hebei Tongda Pump & Valve Group Co., Ltd
email: tongdasophy@hbtdgroup.com
Tel: +86 15128980055
Fax: +86 312 8633212
Website: www.hbtdgroup.com
