•  HOT-STAMPING ROLL-ON MACHINE FOR GLASS BOTTLES
•

Description:

1.    Available force 500 kg;

2.    Production speed: 350 – 500 items per hour;

3.    Machine meet the EU safety requirements;

4.    Adjustable dwell time from 0 to100 seconds (calibration – 1 sec.);

5.    Cycle counter with reset facility;

6.    Heat control adjustable up to 300°C with the alarm system when heat exceeds pre-set value;

7.    Automatic lowering of temperature during downtime;

8.    Short time of heating elements’ replacement;

9.    Heating elements provide even heating of the silicon roller during the cycle;

10.  Vertical stroke of the head (with the heater and silicon roller) – 20 -100 mm;

11.   Foil advance (after stamping) adjustable from 0 to 250 mm;

12.   Foil advance mechanism should provide adjustable tension preventing from irregular pulling;

13.   Max. width of the foil  - 120 mm;

14.   Max. height of the hot-stamped image is 110 mm;

15.   Possibility to install several parallel silicone rollers and foils of different width when several areas need to be hot stamped along the length of the object (desirable);

16.   Foil advance synchronized with the movements of the roller(s) and of the object what insures correct foil consumption and position in order to achieve a good printing quality;

17.   Rotation of the bottle synchronized with the rolling device movement ;

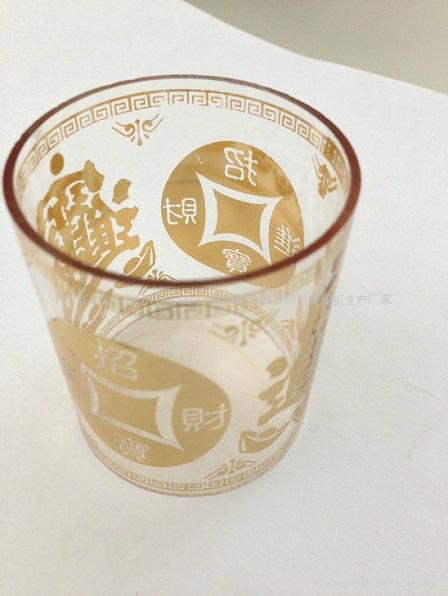

18.   Complete decoration over 360° of a cylindrical object with the diameter 100 mm;

19.   Max. diameter of the cylindrical items to be hot-stamped – 130 mm;

20.   Width of the support shafts should allow placing the bottles with the height of 350 mm. The position of the shafts can be adjusted;

21.   Position of the table can be adjusted;
