Secure-net Fence Welding Machine

Origin:Made In China
Category:Industrial Supplies / Machinery / Welding Machinery
Label:welding machine , wire mesh machine , fence welded machine
Price: US $0.01 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information


Hebei Secure-Net Fence Facility Co.,Ltd

Free MemberHe Bei - China
Live Chat:
Last Online:06 Dec, 2023

Product Description

Wire Mesh Fence Welding Machine (ISO9001:2008)

As a professional  wire mesh fence welding machine factory,we have been trying develop new wire mesh welding machines,now our numerical control wire mesh fence welding machine and reinforcing mesh welding machine have been had new change,new machine will be more economically.On October 22th- October 24th,we will show every one our machines for new design on Anping International Wire Mesh Fair.

This machine adopts synchronous control technique, both welding time and separate-control welding is controlled by PLC, input panel has been divided into two kind, they are touch screen and button. This made the operation more intelligent and rationalization. This machine use electric as its motive power, and it use the step motor hopper, brake motor drive the car to put the weft. And drawing mesh use the step motor. The longitudinal and weft should be pre-cut. The biggest advantage is that can produce different aperture in both longitudinal and weft.

1.Function features:

1).Main machine farame is welded with the thicker steel panel and steel bar.The main structure is more well-set and compact.

2).The cross wire feeding hopper is originative.The cross wire feeding is automatic and drive by step motor,which make the cross wire a lining more accurate.

3).The mesh pulling system is controlled by step motor,which make the pulling mesh aperture more standard and accurate.

4).The mesh aperture size welded is diversified.The line wire spacing can be adjusted through the related parts.The cross wire spacing adjusting is controlled by microcomputer and it can have 10 different styles.

5).Welding adopts late-model efficient welding transformer.The voltage adjusting range is big and it can fall into eight different grades,which enlarge the range of wire diameter size.

6).In order to adapt the capacity of the clients' main power transformer and reduce the ruch of the current,electric and electronic welding control adopts the separating control electricity input,the welding transformers don't work at the same time but in several times when welding the same row of cross wires.

7).Electric and electronic welding control system adopts synchronous control technology.The welding time and separating control welding is composed of numeric integrated circuit,which is with high control precision and stable function,

8).This machine have the automatic pick up panel machine,it can pick up the

 panels to the destination places,thus save a great of labour.

 2.Main Parameter

 2.5 width machine as reference,also 1m,1.5m,2m welding width can be ordered as request.

Wire Diameter


Welding Aperture


Width Of Mesh


The Number Of Warp


Welding Speed


Rated Voltage

AC380V  50HZ

Rated Electrical Power


Overall Dimension


Machine Weight


3.Uses Of The Product:
Fence mesh ( fence of highway and railway [we can supply technique about PVC coated fence ] ),enclosure mesh and building roof mesh.)





Product Image

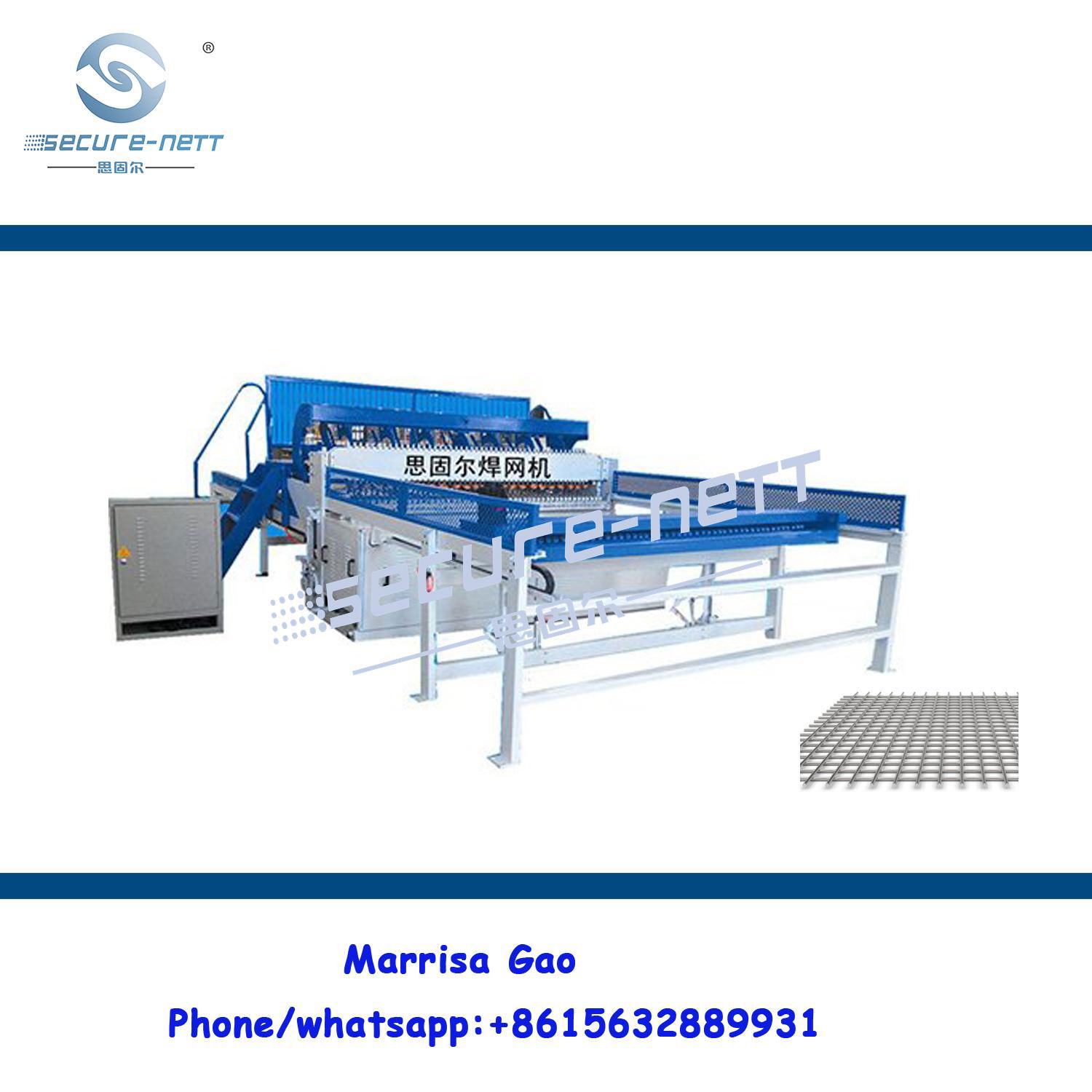

Secure-net Fence Welding Machine 1
Img 1
Secure-net Fence Welding Machine 2
Img 2
Secure-net Fence Welding Machine 3
Img 3
Secure-net Fence Welding Machine 4
Img 4
