Industrial Handheld Portable PDA with 1D 2D Barcode Scanner(X6)
X6 is an industrial portable terminal with powerful fucntions:
1.Win CE or Android OS optional combined with free SDK simplify your secondary development
2.High level CPU 1GHz SAMSUNG ARM Cortex A8
3.High-capacity RAM 256MB or 512MB,ROM 512MB,MSD 32GB max
4.3.5" big touchscreen with TFT 480*640 VGA or 320*240 QVGA optional
5.Obligate space highly expandable for Barcode,RFID,SAM,OCR etc
6. Long life Build-in 4000 mAH Li-battery makes it easy to use anytime anywhere
7.IP65 approved
Specifications:
OS |
Android 2.3 or Windows CE 6.0 ER3 |
|||
CPU |
SAMSUNG ARM Cortex A8 1GHz |
|||
RAM |
Mobile DDR 256MB or 512MB |
|||
Memory |
ROM |
MLC NAND Flash512MB |
||
EXPANSION |
Micro SD,Max 32GB |
|||
Display |
3.5" TFT 480*640 VGA or 320*240 QVGA |
|||
Surface Resistant Touchscreen |
||||
Keyboard |
34 Keys |
|||
Comm Module |
WIFI |
802.11b/802.11g |
||
Bluetooth |
Class V2.1-EDR |
|||
GPS |
u-block NEO-6th,Supports AGPS, DGPS,RTK can be customized |
|||
3G |
GSM/GPRS/WCDMA HSDPA optional |
|||
Camera |
3.0Mega Pixels AUTO FOCUS,Flashlight |
|||
Vibration Motor & LED Indicator |
||||
Barcode Reader(Optional) |
1D Symbol SE955 (Option 2D Symbol SE4500,or Honeywell IT5100) |
|||
Fingerprint(Optional) |
508 DPI meets FBI iAFIS requirement, (Fingerprint Module can be removable) |
|||
RFID |
HF 13.56Mhz, ISO/IEC 14443A/B,ISO15693 (Optional) |
|||
LF 125k,134.2khz ISO-11784/11785 (Optional) |
||||
UHF 860~950Mhz EPC Gen2,ISO180006 (Optional) |
||||
MRZ OCR Scanner |
Snapped MRZ OCR Scanner for passport scanning, ICAO Documents 9303 standard.(optional) |
|||
Interface |
USB 2.0 OTG, USB Host 1.1,SPI, RS-232 |
|||
Power |
DC 5V |
|||
Battery |
Main |
4000mAH Li-ion(rechargeable) |
||
Backup |
50 mAH Li-ion (unreplaceable) |
|||
Endurance Ability |
Sleeping |
More than 5days |
||
Wifi OFF |
More than 16 hours |
|||
Wifi ON |
More than 8 hours |
|||
Recharge Time |
Less than 5 hours |
|||
Size |
192x82.0x30(mm) (without fingerprint)
|
|||
Weight |
around 300g(without fingerpint),
|
|||
Environment |
Operation Temp. |
-10°C~ 45°C |
||
Operation Hum. |
5% ~ 90% |
|||
Storage Temp. |
-20°C ~ 65°C |
|||
Certification |
CE,ROHS,CCC,etc |
|||
Sealing Standard |
IP65 |
|||
Drop Durability |
Withstand 1.5meter drop on to concrete |
|||
Accessories |
1Batterym,1 Stylus with hand strip,1 USB cable,1 AC charger, (RS232 cable, Cardle, Car charger,USB host Ethernet Cable optional) |
Warranty:
One year hardware warranty, technical support. Providing free SDK after sale.
(The price of industrial portable pda is varies from different functions)

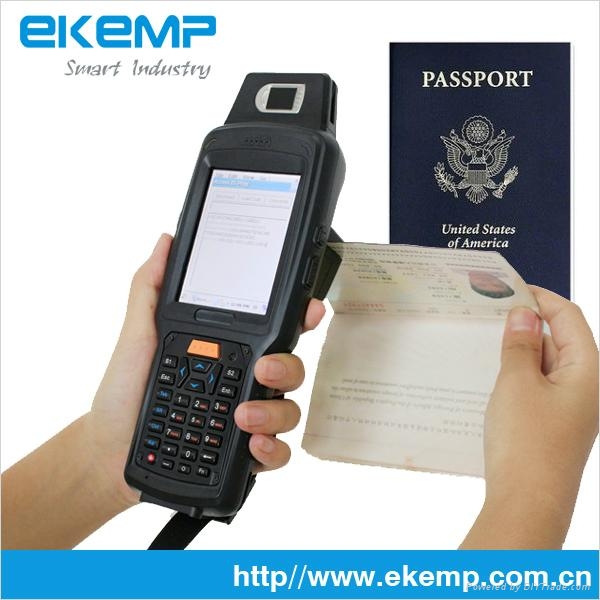

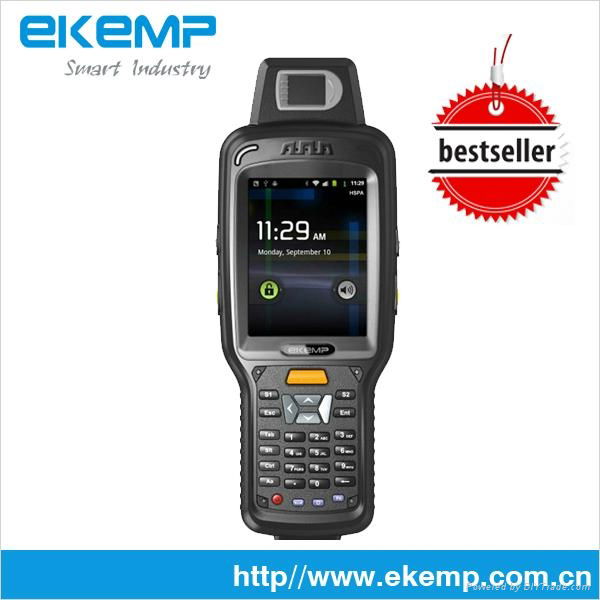

The picture of industrial portable pda with 1d 2d barcode scanner:
