| Model: | RT-PL-0606G |
|---|---|
| Brand: | Ritop or OEM |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Lighting / LED Lighting |
| Label: | led grille light , led panel light , led office lighting |
| Price: |
-
|
| Min. Order: | 10 pc |
| Live Chat: | Last Online:29 Mar, 2021 |

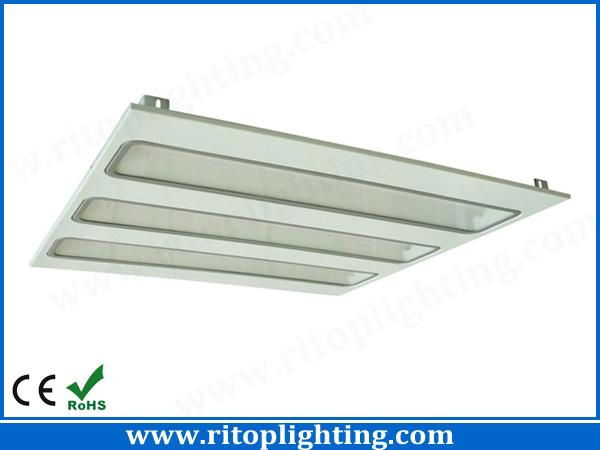

Most Hot Sale Office Grille Light
- Very competitive price
- High lumen output
- 3 years warranty
- Perfect replacement of traditional CFL grille light
36W LED grille panel could replace 72W old CFL lamp
48W LED grille panel could replace 96W old CFL lamp
No need to buy tubes / straters / ballast any more.
Saving your TIME and MONEY !
| Product Specifications | |||
| Power | 36 W | LED Type & Quantity | 504pcs 0.07W LEDs |
| Item Number | RT-PL-0606G36 | LED Chip Brands | Taiwan Epistar / Specified |
| Dimension | 600*600*32.5mm | IP Rate | IP 52 |
| Frame Color | White | Install Ways | Recessed, Surface mounted, Suspended |
| Warranty | 3 years | Life Span | 40,000-50,000 hours |
| Material | Aluminum frame, PC cover | ||
| Electrical & Optical Parameters | |||
| Light Efficiency | ＞88% | Input Voltage | AC 90-150V / 180-265V |
| Power Factor | ＞90% | Driver Type | Constant current driver |
| Light Decay | ≤ 2-3% | Lumen Output | ≥3200 LM (@6500K) |
| Color Temperature | 2700-6500K | Color Rendering Index | Ra>80 (@6500K) |
| Beam Angle | 100-120 degree | ||
| Other Details | |||
| Package | 5pcs/carton | Available Customize | Dimmable, Customize Size, Others |
| Certificates | CE, RoHS | Available Accessories | Dimmer, remoter controller, others |
| Full LED Grille Light Series | |||||||
| Item Number | Dimension | Watts | Color Temp | LED type | CRI | LED Lumens | Power Factor |
| RT-PL-0606G36 | 600*600*32.5mm | 36 W | 2700-6500K | 3014 SMD | ≥ 80 | CW: ≥ 3200 LM | ＞90% |
| RT-PL-0606G48 | 48 W | 2700-6500K | 3014 SMD | ≥ 80 | CW: ≥ 4500 LM | ＞90% | |

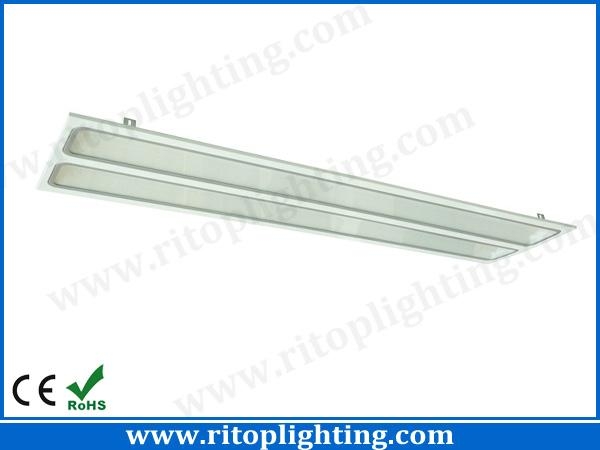

| RT-PL-0312G36 | 300*1200*32.5mm | 36 W | 2700-6500K | 3014 SMD | ≥ 80 | CW: ≥ 3200 LM | ＞90% |
| RT-PL-0312G48 | 48 W | 2700-6500K | 3014 SMD | ≥ 80 | CW: ≥ 4500 LM | ＞90% | |
| RT-PL-0612G48 | 600*1200*32.5mm | 48 W | 2700-6500K | 3014 SMD | ≥ 80 | CW: ≥ 4500 LM | ＞90% |
| RT-PL-0612G60 | 60 W | 2700-6500K | 3014 SMD | ≥ 80 | CW: ≥ 5400 LM | ＞90% | |
