Antenna Navigation 1575.42MHz frequency
Product Description
| Specification |
| 1) Dielectric Antenna |
| Center Frequency |
1575.42 MHz±3 MHz |
| V.S.W.R（in BW） |
1.5:1 |
| Band Width |
±5 MHz |
| Impedance |
50 ohm |
| Polarization Type |
R.H.C.P |
| 2) LNA/Filter |
| LNA Gain(w/o cable) |
28±2 dB Typical |
| Noise Figure |
1.5 dB |
| DC Voltage |
2.2~5 V |
| DC Current |
5~15 mA |
| 3) Mechanical |
| Size |
48*38*14 mm |
| Mounting |
Magnetic/adhesive |
| Housing |
Black |
| Package |
120*95*20mm |
| Optional Cable |
RG174, 3m or others |
| Optional Connectors |
SMA/MCX/SMB/BNC or others |
| 4) Environmental |
| Working Temp. |
-40℃~+85℃ |
| Humidity |
55%~75%RH |
| Waterproof |
IP67 |
| Payment Terms: | TT, western union |
| |

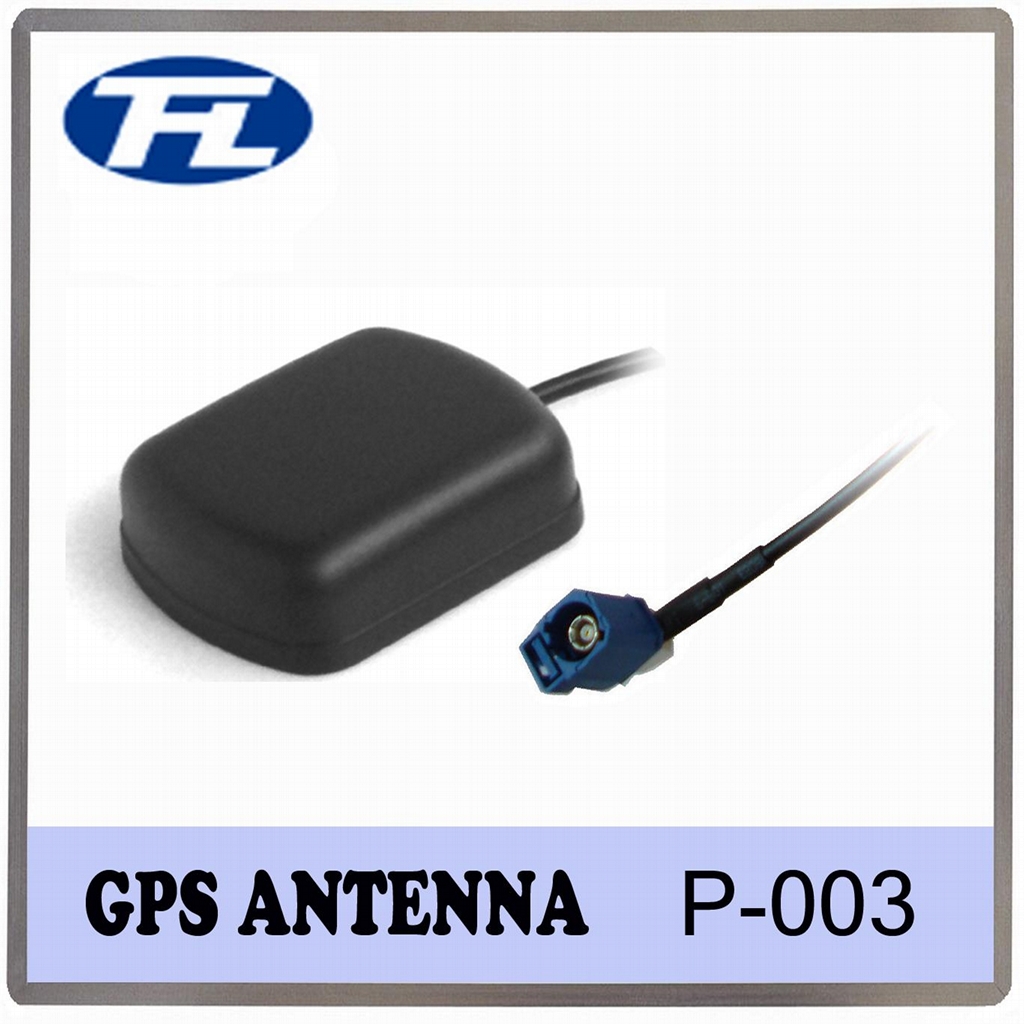

Product Image
