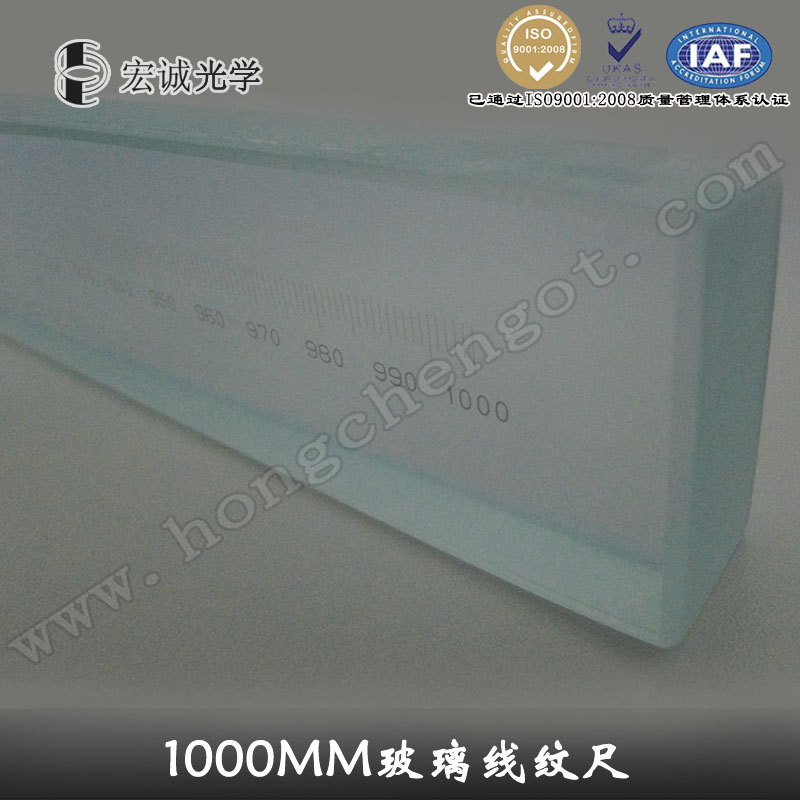

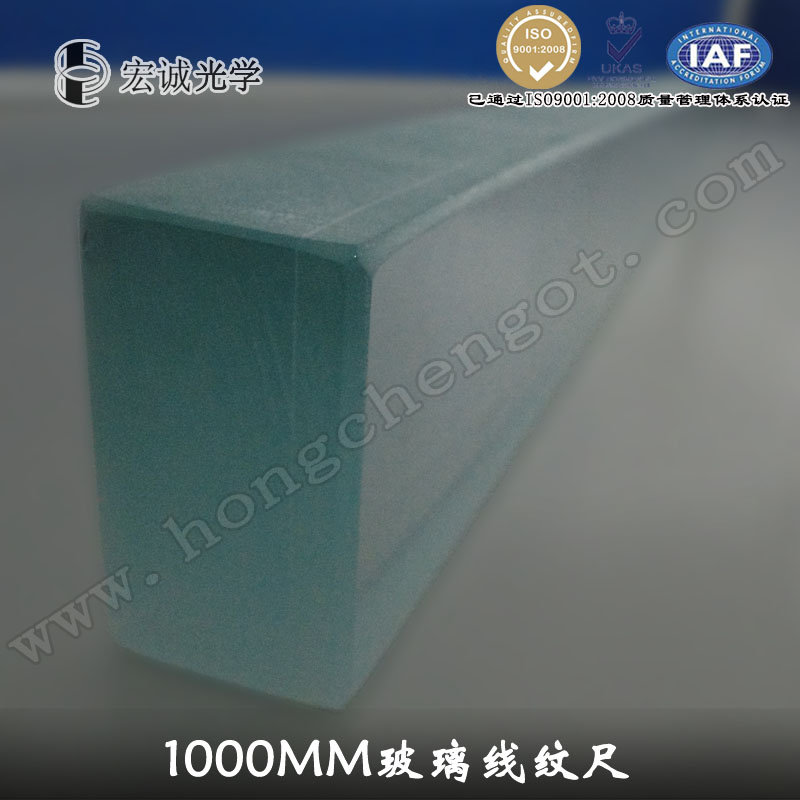

Highly Accuracy 0-1000mm Standard Glass Scale

• Place of Origin: Guangdong, China (Mainland)
• Brand Name: HongCheng
• Model Number: HBL01-1000-1
• Product Name: Highly Accuracy 0-1000mm thicken glass reference scale
• External Dimensions: 1030MM*30MM*20MM
• Accuracy: 4 Micron & 8 Micron
• Measuring Range: 0-1000mm
• Application Range: long instrument;measuring machine;Organization

• Packaging Details:	Standard Package
  Delivery Detail:	About 7-10 Day

•
•
•

• Standard glass scale is just like a kind of very precise ruler, and on its surface, accurate divisions are equally marked. You may measure the length by counting its divisions. The scale is frequently used, and even built in precise instruments, machining tools as length measuring standard scale. Also it is often used for scale calibration, as well as traceability of measurement standard.

      Hong Cheng optical products are offered with extremely high accuracy varied and different measuring length, pitch and line width, and at a reasonable price. Besides, Hong Cheng has its own specially designed unique ones.

      Hong Cheng Standard Glass Scale’s standard temperature of measuring length should be fixed at 20°C, that is most common environment in workshops of manufacturer. For further detailed information, please contact with us first.

• Standard Glass Scale Specifications:

• Specifications	Length(mm)	Width(mm)	Thickness(mm)	Division Value	Accuracy(μm)
  HBL01—100	130	30	5	0.1mm,0.5mm,1mm	1
  HBL01—200	230	30	5	0.1mm,0.5mm,1mm	1
  HBL01—300	330	30	5	0.1mm,0.5mm,1mm	1
  HBL01—400	430	30	5	0.1mm,0.5mm,1mm	1
  HBL01—500	530	30	5	0.1mm,0.5mm,1mm	1
  HBL01—600	630	30	5	1mm	3
  HBL01—700	730	30	5	1mm	3
  HBL01—800	830	30	5	1mm	5—8
  HBL01—1000	1030	30	5	1mm	8—10
