Brand Name

leadleds

Usage

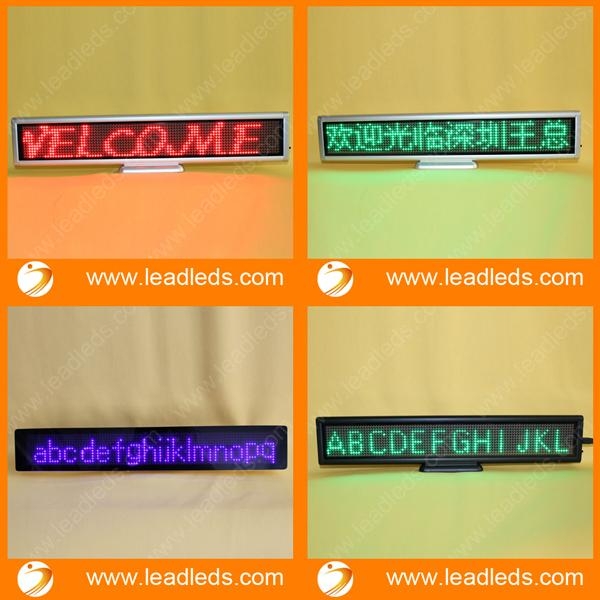

Portable LED Mini Display board.
Put on desk, showcase, information counter, shelf in the store, etc.

Model Number (this model)

B16128R

Model Number
(the other models)

B16128R / B16128Y / B16128B / B16128W / B16128G

LED Chip Color

Red

Number of display color

Red Single Color

Pixels

16X96

LED Type

SMD

Waterproof IP level

IP54 (life level waterproof)

Frame Size (mm)

420X76X18mm

Screen Size (mm)

395 x 55

Module Size (mm) / ea

387 x 50 / single module

Net Weight (Gram,
excluding accessories)

388g

Input method

USB Cable from PC / notebook

Support Language

English / Chinese (Simple & Traditional) / Japanese / Spanish / German / French / Korean / Thailand / etc..

Max input letters (Western)

6,000 characters

Max input letters (Oriental)

3,000 characters

Max. number of letters
In one screen

Western : 8 (text mode), 10 (graphic mode)
Oriental : 4 (text mode), 6 (graphic mode)

Display Effects

5 (Scroll from right to left / Snow / Flash / Hold / Hold with circle)

Max Row Lines

1

Customized
Image (BMP) Support

Possible

Switch/Port on the body

On/off, Brightness, Message Selection, USB Port (mini-5 pin)

Brightness Control

4 levels (25%, 50%, 75%, 100%)

Auto Brightness Control

N/A

Clock support

Time / Date / Year / Day / D-day

Power Supplying Method

Lithium-Polymer Battery Inside

Time for Full Charging

2~3 Hours

Lasting time by Full Charge

8~12 Hours

Charger Type

USB Adapter Enclosed
(100~220V AC Input, DC 5V / 1,000 mA Output )

Auto on/off Support

N/A

Supporting OS

Window 7, Window Vista, Window XP / 98,/ 2000

Packing Size (mm)

550x140x45mm

Accessories Enclosed

LED Board 1 pcs
USB Cable (70 cm) 1 pcs
USB Adapter 1 pcs
CD (program / manual) 1 pcs

Packing

White box

Gross Weight (Gram)

635g
