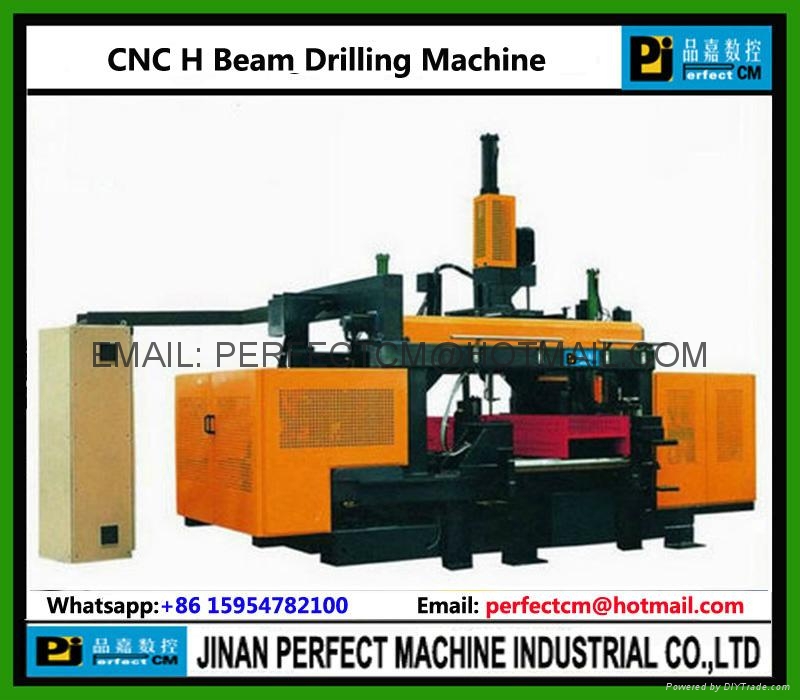

CNC H Beam Drilling Line

Product Basic Parameter:

Model SWZ1000 / SWZ1250

Work piece Size H-beams Max. (web height Flange width) (mm) Max. 1000x500 1250x600
Min. 150x75
Length (mm) Auto feeding 3000
Manual feeding 690
Max. Workpiece weight (kg) 5000 10000
Thickness of web & flange (mm) 80
Drilling dia. (mm) Vertical drilling 12~ 33.5
Horizontal drilling 12~ 26.5
Drilling spindles No. Of spindle One spindle on each of three sides (top, left, right) Total: 3 spindles
Rotation speed (stepless speed adjustment) (rpm) 180~650
Max. Feeding ** (mm) (Left, right): 140 (Top): 240 or 325
Feeding speed(mm/min) 20~300
Movement of left/right spindle (mm) In the direction of workpiece length: 520
Above vertical base-level: 30~470 Above vertical base-level: 30~570
Movement of top spindle (mm) In the direction of workpiece length: 520
Beyond horizontal base-level: 910~45 Beyond horizontal base-level: 1160~45
Overall dimensions (L W H) (mm) 4450x3050x3520 4700x3050x3520
Total power (kW) 28
Machine weight (kg) Appr. 7000 Appr. 8500
