| Model: | SMP |
|---|---|
| Brand: | SZFIL |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Filters |
| Label: | Aluminum Filter , Metal Filter , Filter |
| Price: |
US $20
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: | Last Online:02 Aug, 2013 |

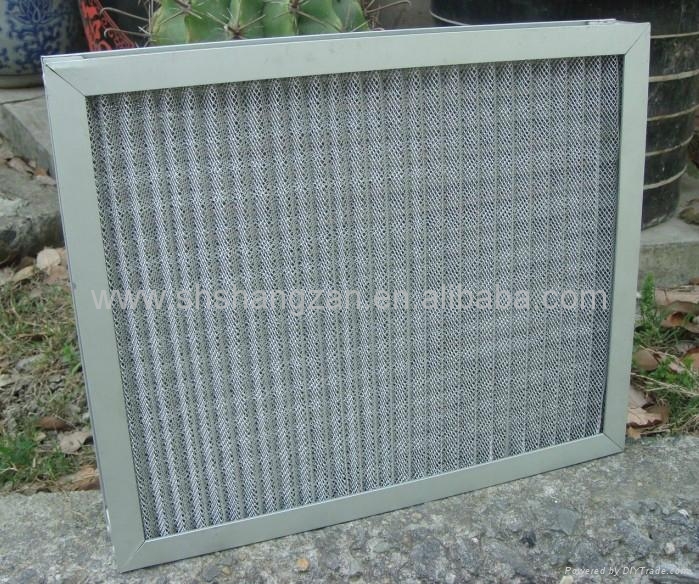

Washable metal Filter(Aluminum Filters)
Features
Frame:aluminum alloy frame,galvanized frame etc can be choose.
Media: It is made up of layers of Aluminum net or stainless steel net, Easy to install and maintain, High absorb capacity ,nice performance ,low operation Cost, low resistance, washable-reusable aluminum net, long life span.
Efficiency:(EN779:2002 filter class)G3,G4,F5
(ASHRAE 52.2:2007 filter class)MERV7,MERV8,MERV9.
Recommended final pressure drop:250Pa.
Temperature:250 C
Fire rating:DIN 53438 class F1.
Applications
Building air conditioning primary filtration system
The primary filter of industrial-grade ventilation systems
Widely used in industry,M-NET is the most economical ventilation and direct ways
Widely used in acid,alkali and high humidity environment
Common Specifications
|
Model |
Dimensions |
Face Velocity (m/s) |
Rated Air Flow (m3/h) |
Initial Pressure Drop (Pa) |
|
W×L×D (mm) |
||||
|
SMW-20×10×2 |
492×238×46 |
2.5 |
1050 |
15 |
|
SMW-20×16×2 |
492×390×46 |
1720 |
||
|
SMW-20×20×2 |
492×492×46 |
2170 |
||
|
SMW-24×24×2 |
594×594×46 |
3170 |
||
|
SMW-25×16×2 |
619×390×46 |
2170 |
||
|
SMW-25×20×2 |
619×492×46 |
2740 |
1. If you meet specifications, structural changes, the company provides the newest data shall prevail
2.We accept the orders of non-standard specifications
