Product Description

The GSM alarm system adopts the news GSM network and Digital Signal Processing technoloty, it is widely used in security field, with SMS data transmission and voice platform of GSM Network, it really realizes wireless alarm control, remote managements and solves the limitation of wired data transmission in telephone and wired network.
GSM are popular in the moderm world, so GSM alarm products could extensive apply to security installation, data monitor and long-range supervision system in sam areas such as family, electric Government, ploice station etc.


Product Feature

Built-in quad band GSM module.
With color LCD show screen and keyboard on the host.
1 wireless SOS zone, 1 fire alarm zone, 24 wireless guarding zones, 1 external power failure alarm zone,2 wired alarm zone
Send SMS to 3 group mobile numbers and call to 3 preset telephone numbers by turns while alarming.
10 seconds self-recording alarm voice will be sent out when alarming, support monitor and intercom function.
Arm/disarm/partial arm/partial disarm by keyboard, remote controller, SMS or remote telephone/mobile phone.(disarm by keyboard need password)
Timing control arm/partial arm/disarm.
Program the alarm host by keyboard or SMS.
Modify the name of 26 wireless guarding zones and inquire the status of alarm host by SMS demand.
Define the 26 wireless guarding zones as arm/partial arm by keyboard on the alarm host.
With standby rechargeable battery
The alarm host automatically stores system status, while its power is off.
Connect with the alarm center through GSM network.


Product Specification/Models

GSM frequency: 900/1800MHz /850/1900MHz

Alarm method: adopts SMS data transmission and voice platform

Stand-by power consumption: not more than 0.6W

External power failure alarm

Alarm response time

Less than 8s (GSM in normality)

The volume of siren

More than 110db

Standby battery:DC 8.4V (lithium battery)

Standby battery working hours: more than 15 Hours

Working conditions

Operating temperature: -10°C ~ +55°C

Humidity: not less than 95% (no condensation)
Dimension of alarm host

Dimension: 170mm (Long) ×118mm (Wide) ×40mm (High)


Application

For home security protection.


Other Information

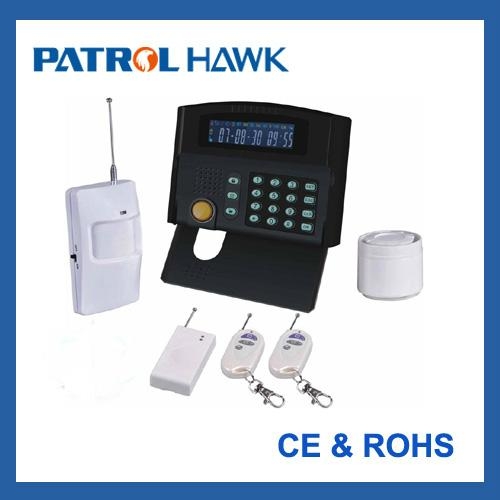

Packing:

Security alarm panel x1
Wireless door/window megnetic contact x1
Wireless remote control x2
Wireless keypad x1
Wireless PIR motion detector x1
Siren x1
Power adapter x1
English manual x1
