Complete Surveillance System with 4-Channel Embedded Linux DVR + 4 Cameras
Product Description
- DVR Specifications:
- Operating system: Embedded LINUX
- Main function: Live display, Recording, Playback, Remote access
- Video display: Single camera or quadrant split screen
- Recording frame rate: 25 FPS Max
- Image quality: Low, Normal, High
- Modes:
- Recording: Continuous / Motion detection
- Overwrite: Cycle / Stop on full
- Recording output: MCG
- Playback: Single channel / 4 channel simultaneous
- RS-485 PTZ control
- Wired RJ-45 Ethernet
- Hard drive: 500GB HDD included
- Input:
- Video: 4 Channel, BNC, 1.0Vp-p, 75 Ohms
- Audio: 2 Channel single AV, Mono
- Output:
- Video: 1 channel TV output, BNC, 1.0Vp-p, 75 Ohms
- Audio: 1 Channel single AV
- Power supply: 12V, 5A
- Working humidity: 10% to 90%
- Dimension (L xW x H): 319 x 227 x 50 mm
- Camera Specifications:
- Image Sensor: Sharp 1/4 CCD
- Resolution: 420 TV Lines
- Lens: 3.6 mm
- Minimum Illumination: 0 Lux (IR LED on)
- White Balance: Auto
- Video Output: 1Vp-p, 75ohm, BNC
- Shutter Speed: 1/50
- IR:
- Distance: 35 m
- IR Led: 24 x 3mm LED
- Cable Length: 18 M
- Power Supply: 12V, 500mA
- Dimension: dia. 107 (Base) x 85 (H) mm
- Network:
- Connection: RJ-45 pPort (10 / 100M)
- Compression: MJPEG
- IP address: Static / DHCP
- Viewing option: Single / 4 channel simultaneous
- Remote capture: Image / Video
- Capture format: BMP, AVI with Divx codec
- IE Explorer only
- Approved: CE / FCC

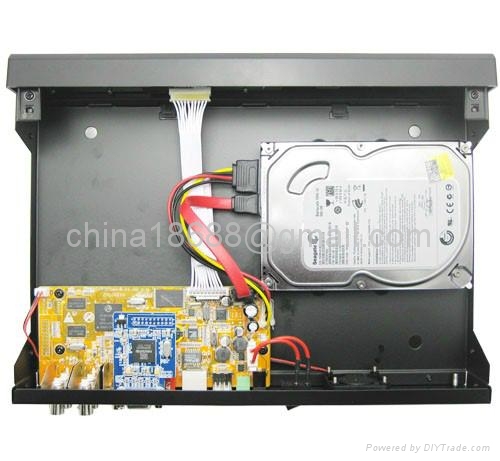

Product Image
