 wind turbine generator 15KW with air pitch 1
  •  wind turbine generator 15KW with air pitch 1

wind turbine generator 15KW with air pitch

Origin:Made In China
Category:Metallurgy , Mining & Energy / New Energy / Wind Power
Label:wind generator , wind turbine , wind power generator
Price: ¥139000 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information


Qingdao Minshen wind power technology co.,ltd

Free MemberShan Dong - China
Live Chat:Last Online:13 Sep, 2014

Product Description

15KW off/tie-grid wind generator system with pitch controlled,


We are manufacturer of wind turbine generator

1, Features:
1). High power efficiency: Increase 10%-30% than traditional
2). Pitch controlled
3). Life span: Designed life span 20 years, can be used normally more than 25 years
4). Maintenance free
5). Low start-up wind speed
6). CE certificate (CE NO. NO110726QMW513)and ISO9001: 2008 quality management system

2, 15kw wind turbine generator parameters:

Rated power (W): 15000
Max power (W): 16000
Cut-in wind speed: 2.5 M/S
Rated wind speed: 9 M/S
Cut-out wind speed: 25 M/S
Survival wind speed: 45M/S
Operating wind speed: 2.5-25M/S
Rated rotating speed(RPM): 200
Rated voltage (V): 380/560V AC
Inverter out-put voltage (V): 220/380V
Frequency: 50/60Hz
Protect grade: IP54
Blades material: FRP
Blade diameter: 8.20M
Pitch system: Air hydraulic pitch
Type of tower: Guyed tower or free standing tower
Height of tower: 15M

3. Generator technology:

Direct drive 3-phase permanent magnet generator
Ultra-low star-up wind speed. Low noise
Brushless and no slip ring generator, maintenance free

4. Application:

Lighting, electrical fan, color TV, charger, pump, washing machine, refrigerator, electric cooker, air-conditioner, small village power supply

5. Primary Competitive Advantages:

Experienced technical staff
Advanced production lines
Experienced R&D department
OEM can be served
Competitive price

Pls feel free to contact me if you're interested in it.

Best regards

Mike Guo

Product Image

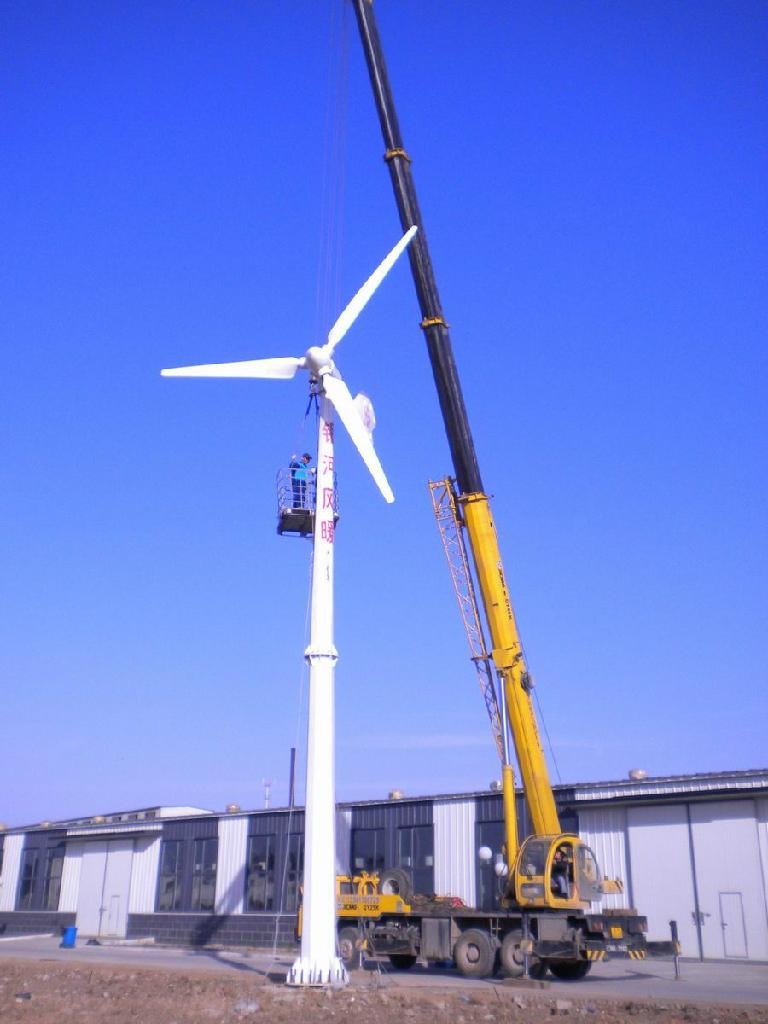

 wind turbine generator 15KW with air pitch 1
