| Model: | DSE501K |
|---|---|
| Brand: | GRAIGAR |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Power & Generating Sets |
| Label: | Deep sea controller , generator controller , DSE501K |
| Price: |
-
|
| Min. Order: | 2 pc |
| Live Chat: |  | Last Online:13 Mar, 2023 |
Product Description

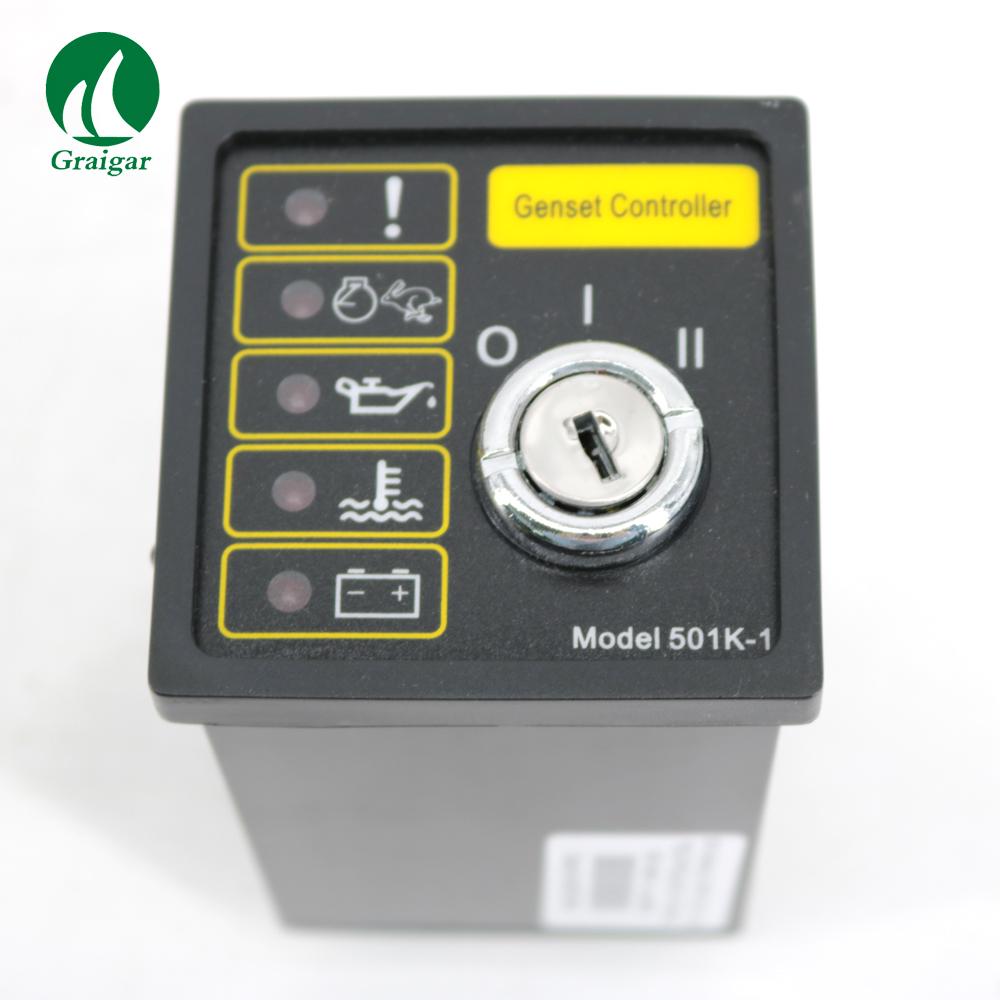

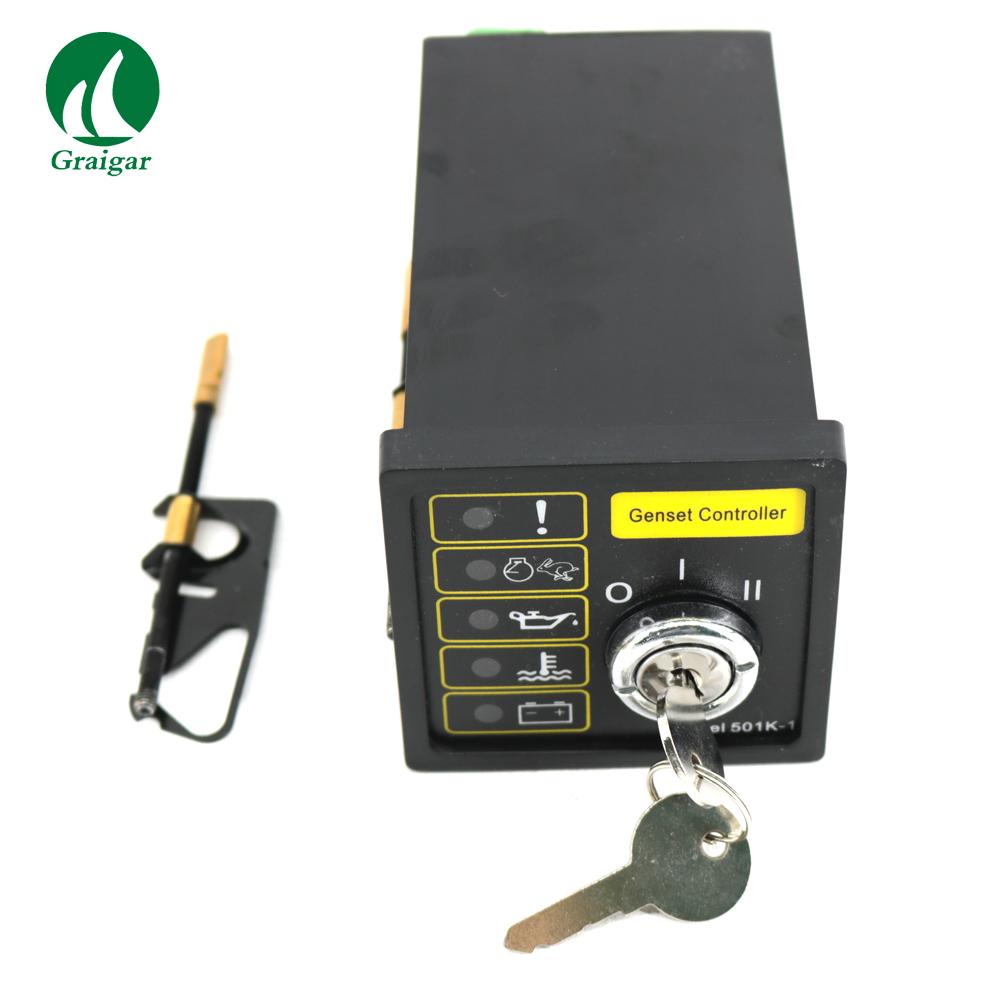

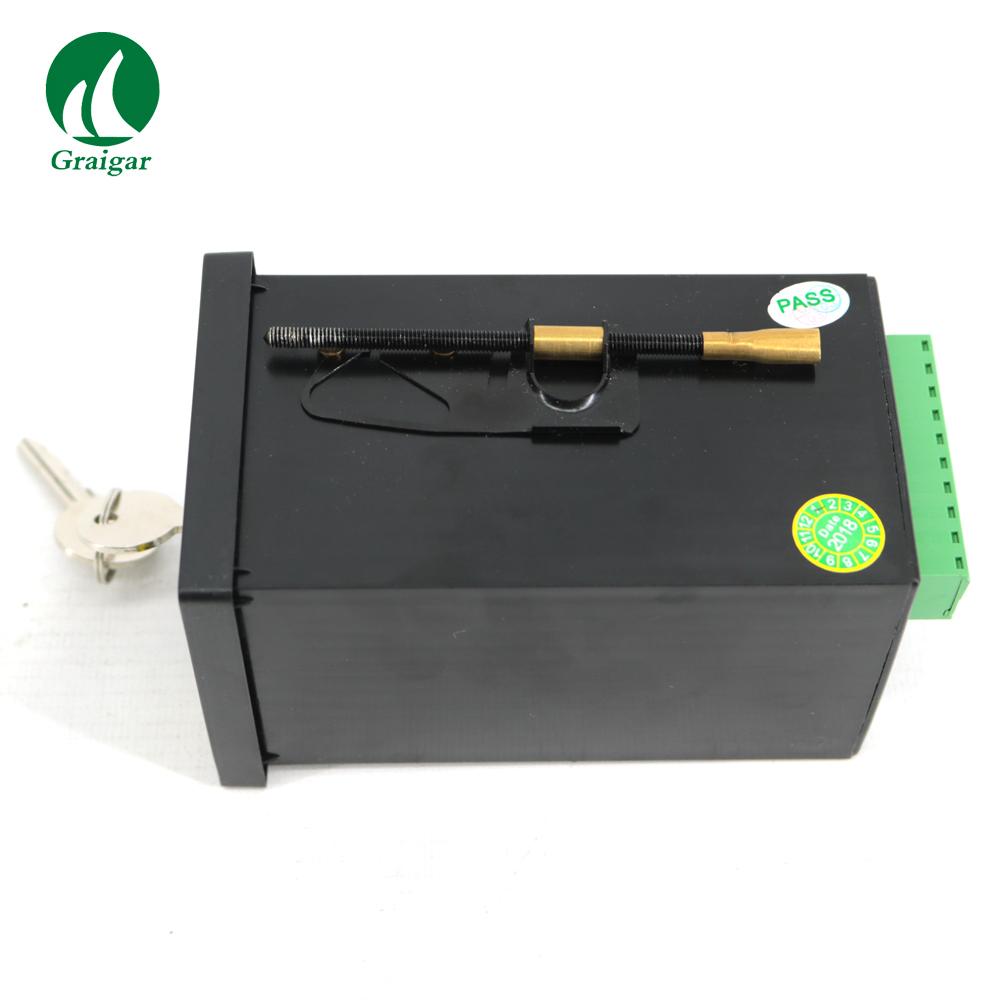

The Model 501K-1 is a Manual Engine Control Module, which has been designed to manually control the engine via a key switch on t front panel. The module is used to start and stop the engine, indicating fault conditions; Automatically shutting down the engine and indicating the engine failure by LED giving true first up fault annunciation.
SPECIFICATION
DC Supply:
9 to 33 V Continuous.
Cranking Dropouts:
Able to survive voltage dips during cranking. This is achieved without the need for internal batteries.
Alternator Input Range:
15 - 305 V AC RMS
Alternator Input Frequency:
50 - 60 Hz at rated engine speed.
Magnetic Input Range:
0.5 V to +/- 80 V
Magnetic Input Frequency: 2300Hz to 6000 Hz at rated engine speed.
Start Relay Output:
16 Amp DC at supply voltage.
Run Relay Output:
16 Amp DC at supply voltage.
Alarm Output:
1 Amp DC at supply voltage.
Dimensions:
72 X 72 X 118.5 (Excluding Key-switch)
Operating Temperature Range:
-30 to +70° C
Installation:

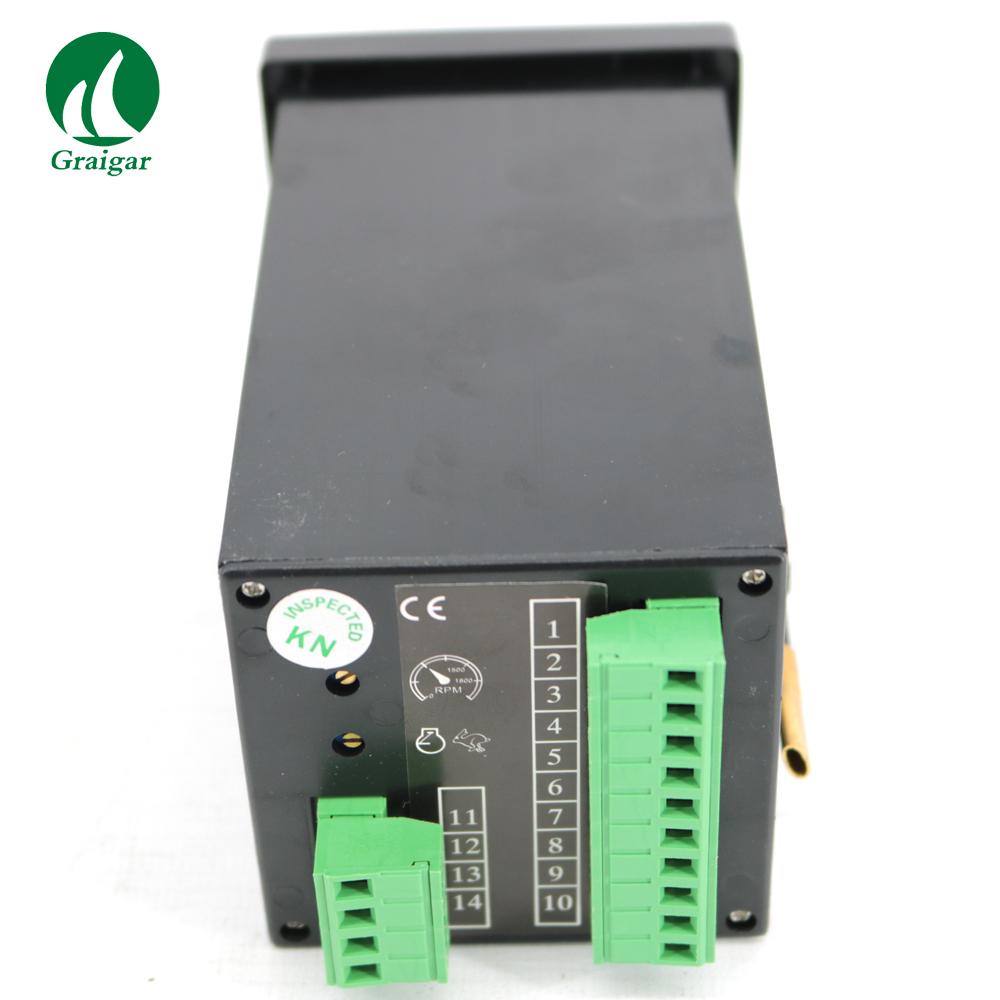

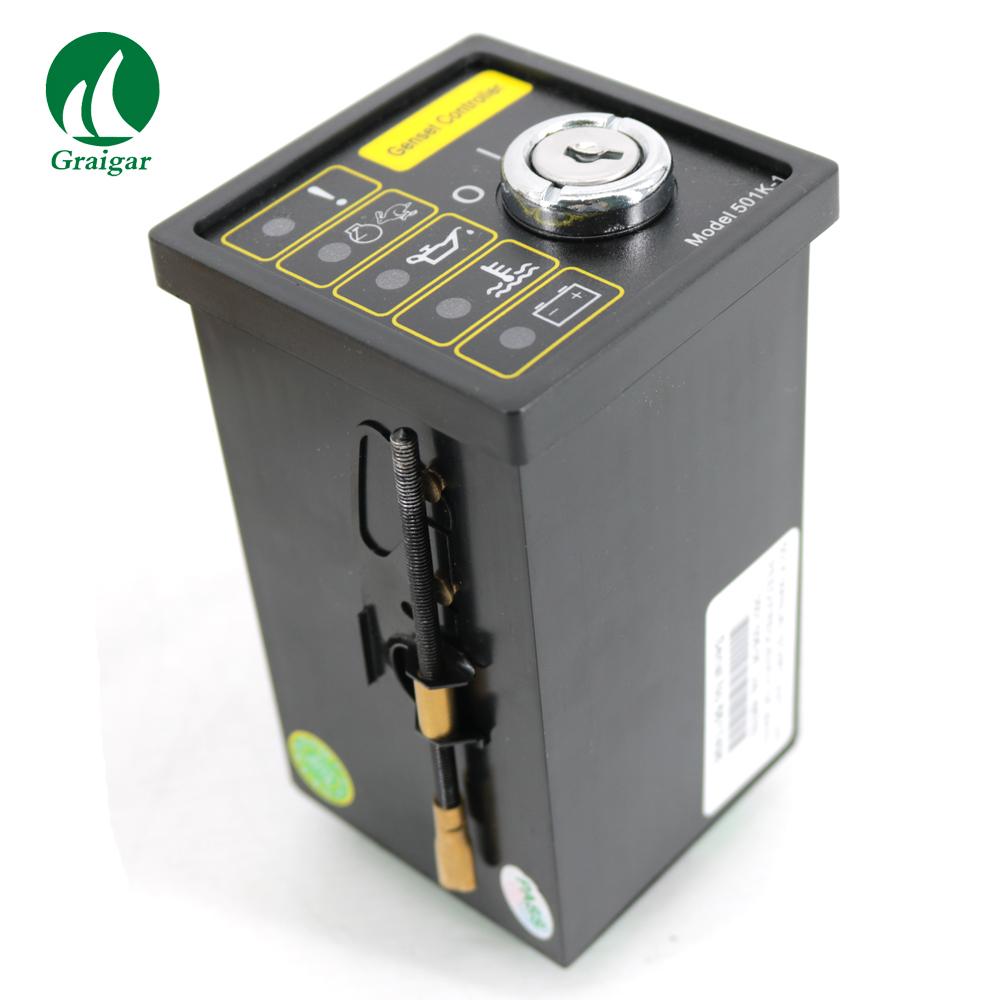

Front panel mounting via suitable cut-out. Retaining clips supplied. Cable connections via locking plug and socket type connectors.
Calibration:

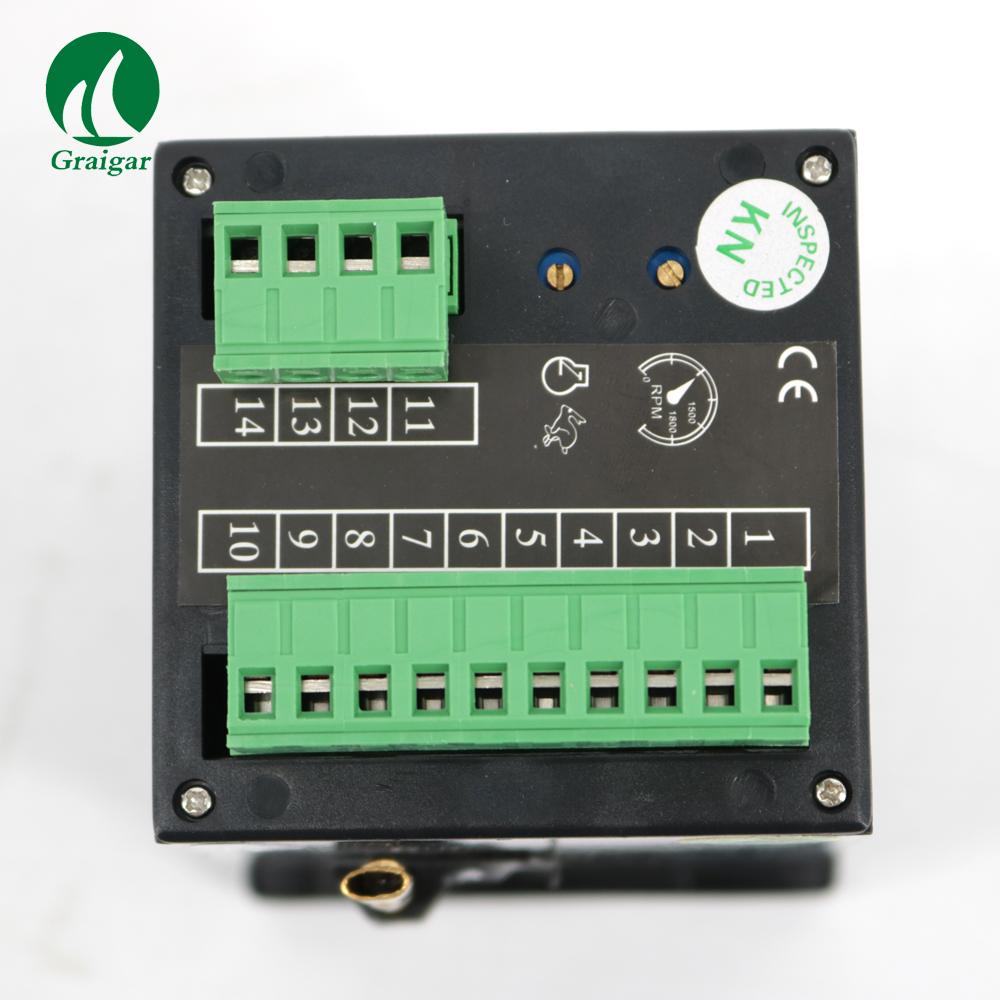

Speed trip setting and meter calibration adjustment potentiometer are accessible from the rear of the module.
ESD5500E ESD5550E ESD5221E ESD5330 ESD5520E ESD5111 101S ADB225 SR7
We supply the above model speed controller. If you have any further information about that, pls contact us.
