| Model: | Lbox-GM45 |
|---|---|
| Brand: | LingJiang |
| Origin: | Made In China |
| Category: | Computers & AV Digital / Computers / Embedded Computer & SCM |
| Label: | onboard intel core c , industril panel pc |
| Price: |
US $601
/ pc
|
| Min. Order: | 1 pc |
| Last Online:23 Jun, 2015 |
|

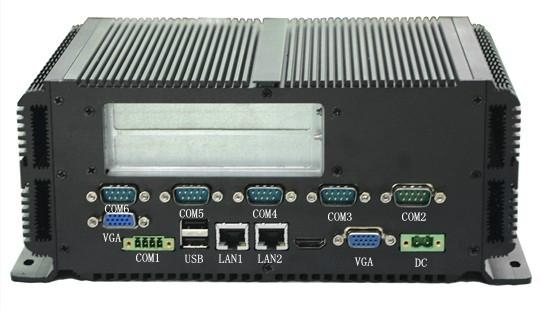

Mini Industrial Embedded Computer
|
|
|
Model Number
|
Lbox-GM45
|
|
Color
|
Black
|
|
Chassis Material
|
High quality aluminum alloy
|
|
CPU
|
Onboard Intel Core 2 Duo P8600(default) CPU
|
|
Chipset
|
Intel 82GM45+ICH9-M
|
|
Memory
|
two DDR3 SO-DIMM System Memory expansion Slots
the motherboard memory up to 8GB
2 G memory default
|
|
BIOS
|
8Mb AMI SPI
|
|
I / O Interface
|
2*SATA, 1*LINE OUT&MIC
|
|
1×LVDS(dual channel 24-bit)
|
|
|
6*USB 1*LPT(optional)
|
|
|
2 x VGA 1xVGA (default)
|
|
|
1 x HDMI
|
|
|
6xCOM ( 1xRS-232/ 1xRS-422/485, 3xRS-232/485)
|
|
|
Ethernet port
|
2 x RJ45 (2x10/100/1000 Mbps)
|
|
Audio Features
|
HD Audio Line-out,MIC-IN,5.1
|
|
Storage
|
1*2.5" SATA Slot
|
|
Expansion Bus
|
A standard MINI PCI-E×1 bus interface
|
|
A standard PCI-104 bus interface
|
|
|
Watchdog
|
256 level
|
|
Power
|
DC_IN 9V-26V
|
|
Weight
|
3.19Kg
|
|
Dimension
|
235.6*165.5*100mm (W*D*H)
|
|
Operating temperature
|
-20°C~60°C(Asked wide temperature HDD)
|
|
Storage temperature
|
-40°C~80°C
|
|
Humidity
|
5%~90%,non-condensing
|
| Payment Terms: | Paypal/west union/TT |
|---|---|
