| Model: | CHSJ-35/40/45E |
|---|---|
| Brand: | Chengheng |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | film blowing machine , blown film machine , blowing film machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:30 Nov, 2014 |
The Closest Service:
1.Free installation and ajustment.(for consumers purchase more than $100000 only)
2.One year free after-sales service and mechanical parts lifetime warranty.
3 We will offer the professional answer and parts about relating machines in 48 hours on line .

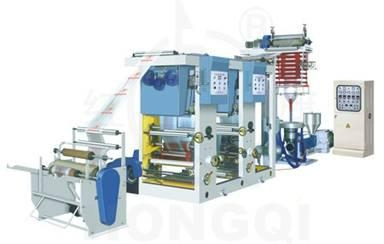

Purpose
This machine set is used to blow Low-density polyethylene (LDPE) and high-density polyethylene (HDPE) plastic film to produce various food and clothing packaging bags, garbage bags and vest bags for civil and industrial packaging uses.
Features
Combine film blowing and printing in one machine set with high production efficiency and good economic benefits.
Main Technical Parameters
|
Model |
CHSJ--35E |
CHSJ--40E |
CHSJ--45E |
|
Raw material |
LDPE,HDPE |
LDPE,HDPE |
LDPE,HDPE |
|
Diameter of screw |
35 mm |
40 mm |
45 mm |
|
L/D ratio of screw |
L/D 30:1 |
L/D 30:1 |
L/D 30:1 |
|
Main motor power |
7.5kw |
11kw |
15kw |
|
Extrusion capacity |
25 kg/h |
35 kg/h |
50 kg/h |
|
Die diameter |
40-80 mm |
80-130 mm |
100-160 mm |
|
Film width |
600 mm |
800 mm |
1000 mm |
|
Film thickness |
0.003-0.1 0mm |
0.003-0.10 mm |
0.003-0.10 mm |
|
Printing length |
250-1000 mm |
250-1000 mm |
250-1000 mm |
| Payment Terms: | TT |
|---|---|
