JD22060 COOLING FAN VENTILATION

Model:JD22060
Brand:JINGDAFAN OR OEM
Origin:Made In China
Category:Industrial Supplies / Machinery / Draught Fan
Label:AC FAN , AXIAL FAN , ROUND FAN
Price: -
Min. Order:200 pc
Inquire Now Add to Basket

Company Information

Detail

DEQING JINGDA ELECTRIC CO., LTD

Free MemberZhe Jiang - China
Live Chat:Last Online:29 May, 2018

Product Description

Key Specifications/Special Features:

  • Specifications:
    • Size: 220 * 220 * 60mm
    • Working voltages: AC 110V
    • Currents: 0.65/0.76A
    • Frequencies: 50/60 (Hz)
    • Power range: 55/77 (W)
    • Speed range: 2,300/2,500 (rpm)
    • Air flow range: 335/350( CFM)
    • Pressure: 17/19 (mmH2O)
    • Noise: 64/66 (dBA)
    • Weight: 1,700 (g)
    • Certifications: CE, RoHS, SGS, CCC, ISO9001
    • Packing: Each one with one white box or as the customers' requirement
  • Materials:
    • Frame: Aluminum alloy with plastic-spraying/P.B.T
    • Impeller: Plastic P.B.T
    • Coil: Enameled copper wire
    • Motor: Shade pole induction motor
    • Bear type: Ball bearing
    • Lead type: Wire lead/terminal
  • Performance:
    • Insulation resistance:10MΩ at 500VDC between lead and frame
    • Operation temperatures:- 20-80°C
    • Dielectric strength:1 min at 1500 V AC/50-60Hz, current<5mA
    • Operation humidity range: 20-85%
    • Use of life: Ball bearing 50,000 hours and sleeve bearing 20,000 hours (at 25°C)
    • Special can be customized



Product-level Certifications:

CCC:2013010401627379

CE:CTS070429-00557-E-M1

CE:CTS070429-00558-E-D

CE:CTS070429-00556-E

ROHS:CTS070429-00555-C

ROHS:CTS070429-00554-C


Payment Terms:T/T

Product Image

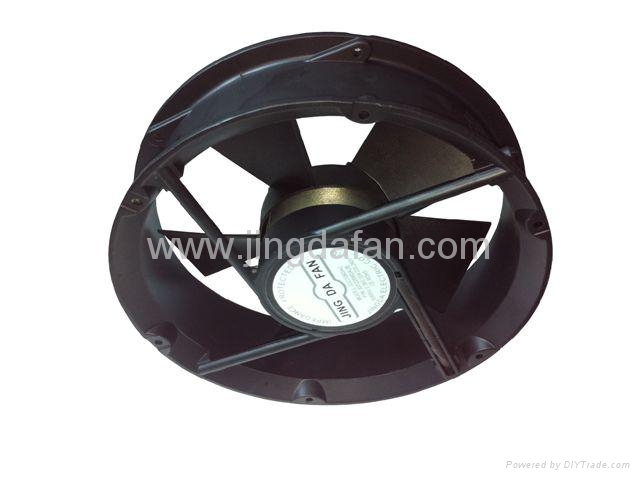

JD22060 COOLING FAN  VENTILATION  1
Img 1
JD22060 COOLING FAN  VENTILATION  2
Img 2
JD22060 COOLING FAN  VENTILATION  3
Img 3
JD22060 COOLING FAN  VENTILATION  4
Img 4
