Swing Gate Operator

Model:EM3
Brand:Ahouse
Origin:Made In China
Category:Construction & Decoration / Door / Garage Door
Label:Swing Gate Motor , automatic swinggate , gate opener
Price: US $265 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information

Detail

Ahouse Mechanical and Electrical Co.,Ltd

Free MemberGuang Dong - China
Live Chat:Last Online:04 Jan, 2014

Product Description

Swing Gate Operater (CE)

Specifications

*Own patent, simple installation and manual release
* 72h salt spray corrosion test
* Tailor-made gate lock& solar panel

AT A GLANCE:

Driving Method: Screw Driven Piston Type
Operating Voltage: DC 24V

Input Voltage : AC 110 V~ 240V ,50-60Hz.

Certifcate of CE / IP 66
Control: Electric Supply & Solar System
Model: DT/EM3PLUS/EM3/EM2
Max.Gate Weight : 800kg/ 700kg/600kg/ 500kg

Operate the gate width from 0.8m to 3m per leaf

Digital Adjustment

QTY/20FT: 300SETS&QTY/40FT:600SETS


Ahouse Electric Supply Automatic Swing Gate Opener Kit :

*Stainless steel housing motor (1 or 2 depending on single or double gate)
1*Control Box
2*Remote Control
1*All Mounting Hardware
1*Instruction Manual
2*gate bracket
2*post brackets
1*Allen key


Ahouse Solar Powered Automatic Swing Gate Opener Kit:

*Stainless steel housing motor (1 or 2 depending on single or double gate)
1*Solar control box
1*solar panel with bracket and Frame for mounting the solar panel ( We have 11W Solar Panel & 20w Solar Panel)
2*back up batteries
2*Remote Control   (Learning Code)
1*All Mounting Hardware
1*Instruction Manual
2*gate bracket
2*post brackets
1*Allen key

Some Key Benefits of an EM3 Gate Automation System fitted on your gates

 Fast operating speed on opening and closing-The fastest screw drive gate motor available

 Stylish remotes with button protectors

 Full open and pedestrian open functions

 IP66 rated motors-built to withstand the harshest environments

 Striking Stainless Steel look and feel

 Full specification STGS inbuilt safety system that protects your motors, gates from mechanical stress

 Inbuilt safety systems against crushing- will stop and reverse if obstruction detected

 Silent and smooth operation

 24vdc operating voltage reduces installation costs

 Universal mounting brackets for easy installation

 Can open gates inwards or outwards depending on your requirements

 Quality durable construction to last the test of time

 Backup battery compatible for when the power goes off

 Mechanical arm disabling with special key so that no tools are required when and if you need to

 Capable of connecting additional devices such as ground loops, keypads, safety beams, intercoms, locks etc

 Built in electrical overload protectors and adjustable current limiting (Will not stress lighter gates such as aluminium gates)

 12 Month manufacturers warranty

PRODUCT DESCRIPTION:
The Ahouse Swing Gate Opener meets the highest standards in safety. To begin with, the EM series Ahosue swing meets CE and IP66 standards for anti-crushing safety and have own patent. The diligent observation of safety standards ensures that Ahouse gate opener not only meets safety requirements, but also offers superior quality. Simplest and Safest installation instructions with video. Optional special electric lock and solar panel






Product Image

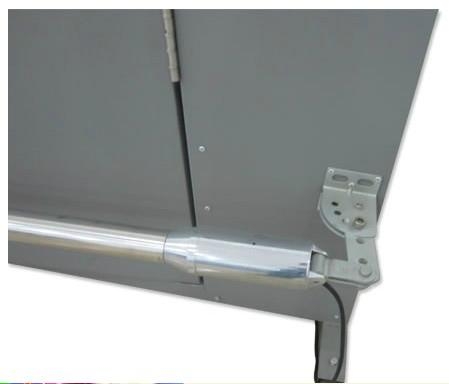

Swing Gate Operator 1
Img 1
Swing Gate Operator 2
Img 2
Swing Gate Operator 3
Img 3
Swing Gate Operator 4
Img 4
Swing Gate Operator 5
Img 5
