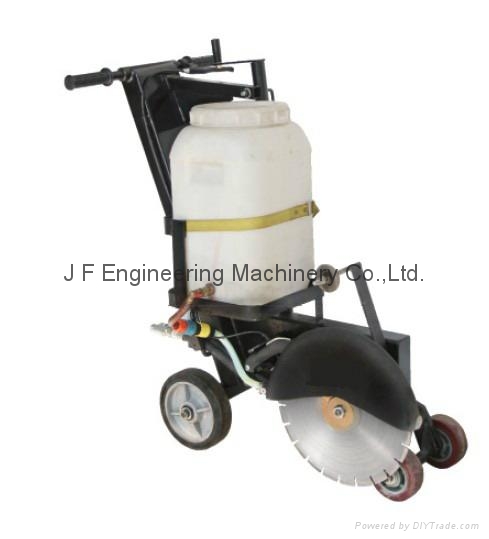

Cut-off Saw
The cut-off saw is used in slab or flat cutting, such as cutting concrete, asphalt concrete and metal materials.
If equipped into a cart, the cut-off saw can permit the operator to stand on or walk behind the cart to deeply cut concrete while operating the saw. The saw features a powerful hydraulic engine and can remain intact even stuck.
Features
-Built-in flow control valve to prevent over speeding
-With the rotation axis brake
-Calibrated manual depth adjustment
-Accommodate a water tank for cooling
-Counterclockwise the blade cutting rotating for dust suppression
-Replace with the wide blade for cleaning gap
-Replace with the special blade for cutting metal materials
|
Specifications |
||
|
Model No. |
CS09 |
CS09T |
|
Weight |
9kgs |
70kgs |
|
Length |
530mm |
800mm |
|
Width |
280mm |
500mm |
|
Output Flow |
26-34lpm |
26-34lpm |
|
Operating pressure |
105-140bar |
105-140bar |
|
Diameter of blade |
355mm |
355mm |
|
Cutting depth |
125mm |
125mm |
