| Model: | - |
|---|---|
| Brand: | Comlite |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Lighting / LED Lighting |
| Label: | 6x2w led spot lights , spot lihgts-comlite , RGB garden lights |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: |  | Last Online:13 Oct, 2023 |
Features:
1.In high voltage mode, the bottom base is allowed to be put high voltage module inside.
2.In low voltage mode, the bottom base is a waterproof connection box.
Specifications:
Housing:12# die-casting grey powder coated aluminum. T=50-55um Adhesion of ISO class 1/ASTM class 4B
Bracket:Powder coated aluminum
Glass:tempered glass T=4mm
Lens:All-in-one optical lens, efficiency≥85%
Cable gland:IP-68 PG-9 PVC
Gasket:Tooling shaped seal
Power cable:H05RN-F 3X1.0m㎡ L=2m (high voltage)
H05RN-F 4X0.75m㎡ L=2m (for RGB)
Mounting base:Powder coated die-casting aluminum

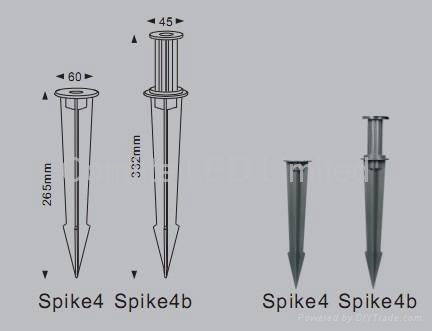

Spike:Powder coated die-casting aluminum
Technique Parameters:
| Item No. | Light Source | Lens Beam Angle | Input Voltage(v) | Typical Operating Current(mA) | Typical Consumption(w) | Typical Luminance (lm) |
| B3Bc0616 | 6x2W | 15 | 24VDC
120VAC 240VAC |
470
182 96 |
11.3
12.5 12.5 |
cool white=605
warm white=525 |
| B3BC0618 | 6×2W
RGB 3in1 |
25 | 24VDC | R=125
G=220 B=232 |
R=3
G=5.3 B=5.5 |
R=100
G=155 B=45 |
| B3BCM0316 | 6x2W | 15 | 24VDC
120VAC 240VAC |
470
182 96 |
11.3
12.5 12.5 |
cool white=605
warm white=525 |
| B3BCM0618 | 6×2W
RGB 3in1 |
25 | 24VDC | R=125
G=220 B=232 |
R=3
G=5.3 B=5.5 |
R=100
G=155 B=45 |
| B3BCB0616 | 6x2W | 15 | 24VDC
120VAC 240VAC |
470
182 96 |
11.3
12.5 12.5 |
cool white=605
warm white=525 |
| B3BCB0618 | 6×2W
RGB 3in1 |
25 | 24VDC | R=125
G=220 B=232 |
R=3
G=5.3 B=5.5 |
R=100
G=155 B=45 |
| Payment Terms: | TT/Paypal |
|---|---|
