India hot sell 24V BO IC optical receiver module

Model:	SMO815S
Brand:	Sanland
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Components / Other Electronic Components
Label:	optical receiver , optical module , receiver module
Price:	US $3.5 / pc
Min. Order:	100 pc

Inquire Now Add to Basket

Member Information

ShenZhen Sanland Electronics Co., Ltd

Free MemberGuang Dong - China

Live Chat:

Last Online:23 Feb, 2021

Product Description

Product Description:

The SMO815S has an FC/APC or SC/APC connector.
The amplifier supply voltage pin is connected to 24V(DC) .
The modules have a mono mode optical input suitable for 1290 to 1600nm wavelengths a terminal to monitor the photo diode current and an electrical output having a characteristic impedance of 75Ω.

Product Features:
FL: ±0.75dB
S22: 10dB
CTB: 63dB
CSO: 58dB
CNR: 50dB
Frequency range: 40-870MHz
Output voltage: 88dBuV
Total current consumption: 120-140mA
Responsivity: 850V/W
Wavelength: 1290-1600nm

Product Features:

● Excellent Linearity
● High Optical Input Power Range
● Excellent Flatness
● Optimal Reliability
● Low Noise
● Outline Standarding
● FC/APC SC/APC

If you need more details, pls contact us anytime.

We also have 6V module and 3.5V.

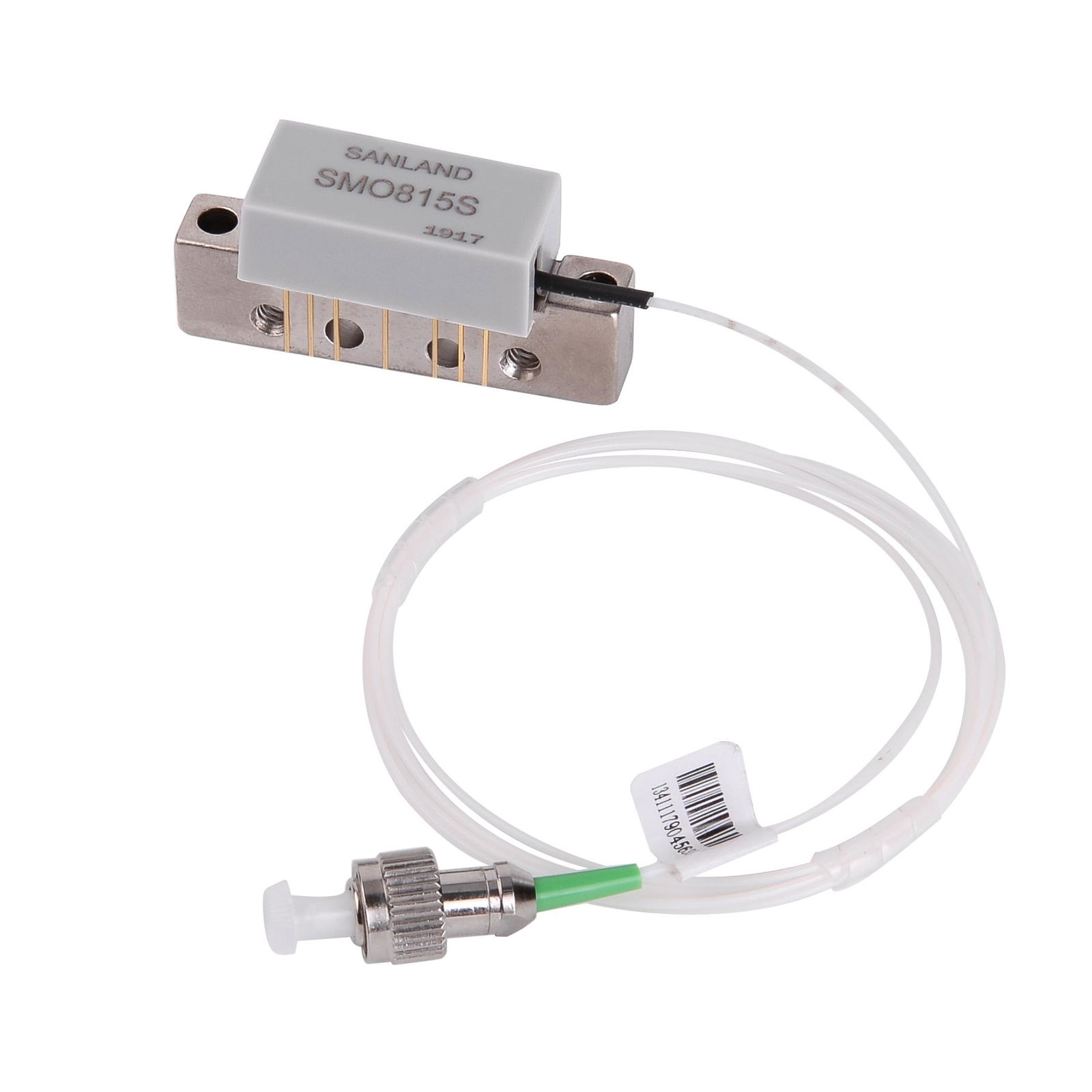

Product Image
