| Model: | 2PLF |
|---|---|
| Brand: | Zhenyuan Machinery |
| Origin: | Made In China |
| Category: | Industrial Supplies / Mining Machine |
| Label: | Coal crusher , Crusher machine , Coal crusher machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:12 Apr, 2016 |
Advanced Design

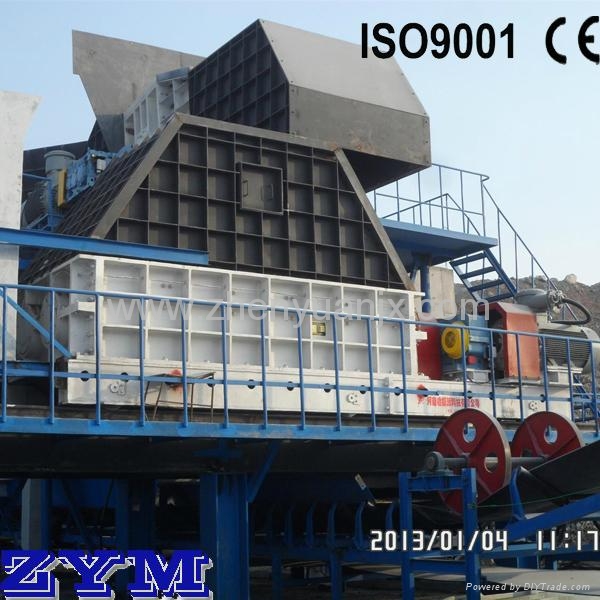

ZYM Double Roll Coal Crusher is composed of electromotor,
connecting cover, reducer, torque-limiting fluid coupling, tooth rollers and the main body.
Outstanding Features
1.Strong crusher power and high crushing ratio, without over-crushed phenomenon
2.Crushing grades have coarse and medium crushing
3.High strength alloy steel shafts
4.Replaceable wear part design, crusher teeth can be replaced quickly
5.Unique tooth designs to allow maximum utilization of the materials
6.Grease lubricated bearings usually fed by automated system
Technical Parameters
| 140 Series Grading Teeth-roller Crusher for Coarse Crushing | ||||
| Model
Specification |
2PLF-140/150 |
2PLF-140/200 | 2PLF-140/250 | 2PLF-140/300 |
| Input Size(mm) | < =1500 | < =1500 | < =1500 | < =1500 |
| Output Size(mm) | < =300 | < =300 | < =300 | < =300 |
| Capacity(t/h) | 1300-2500 | 1700-3800 | 2200-4600 | 2700-5500 |
| Single Driven Type Motor Power(kw) | 315-355 | 355-450 | 400-560 | 450-630 |
| Dual Driven Type Motor Power(kw) |
2*(185-280) |
2*(200-315) |
2*(220-355) |
2*(250-400) |
| 120 Series Grading Teeth-roller Crusher for Coarse Crushing | ||||
| Model
Specification |
2PLF-120/150 | 2PLF-120/200 | 2PLF-120/300 | |
| Input Size(mm) | < =1200 | < =1200 | < =1200 | |
| Output Size(mm) | < =300 | < =300 | < =300 | |
| Capacity(t/h) | < =1500 | < =2000 | < =3300 | |
| Single Driven Type Motor Power(kw) | 315-355 | 355-450 | 560-630 | |
| Dual Driven Type Motor Power(kw) |
2*(132-185) |
2*(160-220) |
2*(200-315) |
|
| 100 Series Grading Teeth-roller Crusher for Medium Crushing | ||||
| Model
Specification |
2PLF-100/160 | 2PLF-100/200 | 2PLF-100/250 | |
| Input Size(mm) | ≤ 700 | ≤ 700 | ≤ 700 | |
| Output Size(mm) | 50-150 | 50-150 | 50-150 | |
| Capacity(t/h) | 280-850 | 350-1000 | 500-1500 | |
| Single Driven Type Motor Power(kw) | 160-200 | 160-250 | 200-315 | |
| Dual Driven Type Motor Power(kw) |
2*(90-132) |
2*(110-160) |
2*(132-200) |
|
| 80 Series Grading Teeth-roller Crusher for Medium Crushing | ||||
| Model
Specification |
2PLF-80/150 | 2PLF-80/200 |
2PLF-80/250 |
2PLF-80/300 |
| Input Size(mm) | < =550 | < =550 | < =550 | < =550 |
| Output Size(mm) | 50-150 | 50-150 | 50-150 | 50-150 |
| Capacity(t/h) | 200-600 | 260-750 | 300-1000 | 400-1150 |
| Single Driven Type Motor Power(kw) | 132-160 | 160-200 | 185-250 | 250-280 |
| Dual Driven Type Motor Power(kw) |
2*(75-90) |
2*(90-132) |
2*(110-185) |
2*(132-220) |
| 60 Series Grading Teeth-roller Crusher for Medium Crushing | ||||
| Model
Specification |
2PLF-60/70 |
2PLF-60/120 |
2PLF-60/150 |
2PLF-60/200 |
| Input Size(mm) | < =400 | < =400 | < =400 | < =400 |
| Output Size(mm) | 50-150 | 50-150 | 50-150 | 50-150 |
| Capacity(t/h) | 80-240 | 200-600 | 250-700 | 300-800 |
| Single Driven Type Motor Power(kw) | 37-55 | 45-90 | 55-110 | 75-160 |
| Dual Driven Type Motor Power(kw) |
2*(15-37) |
2*(18.5-45) |
2*(37-55) |
2*(45-90) |
