Φ80MM semi bottles Screen Printing Machines

Model:TM-250S
Brand:Tamprinter
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:pots screen printer , cans screenprinter , Barrel screen print
Price: -
Min. Order:1 SET
Inquire Now Add to Basket

Member Information

Detail

SHENZHEN TAMPRINTER PRINTING MACHINERY CO., LTD.

Biz MemberGuang Dong - China
Live Chat:
点击这里给我发消息Last Online:22 Jun, 2022

Product Description

 TM-250S Pail Screen Printer

cup print видео:
http://v.youku.com/v_show/id_XMTQwNjU2NzQ5Ng==.html
Quick Print lampshade video:
http://v.youku.com/v_show/id_XNjQxMjQ1NDcy.html

Technical parameters:



Max diameter printing

DIM≤80mm

Workpiece inclination

about +14degree--- -7degree

Max printing speed

1200pcs/h

Air consumption

110litre/min(6bar)

Power

110/220V  60/50Hz

Dimensions

950X840X1300mm(LXWXH)

Weight

80kg

Model

Printing Area

Printing Speed

Power Supply

Shape of Workpiece





TM- 250s

Φ70*200 (cylindrical surface)





1200PCS/HOUR



110/220V SPN 100W



Cylindrical

Φ200*200 (elliptical surface)

AIR5-6KG/ c㎡

Conic



TM-300E



Φ90*200

(cylindrical surface)



1200PCS/HOUR



110/220V SPN 100W



Cylindrical

Φ200*250 (elliptical surface)







Conic







TM-400E



Φ110*200

(cylindrical surface)



1200PCS/HOUR

110/220V SPN 100W



Cylindrical







Φ200*350 (elliptical surface)

AIR5-6KG/ c㎡

Conic



TM-700E

Φ215*200

(cylindrical surface)



1200PCS/HOUR

110/220V SPN 100W



Cylindrical

Φ200*350 (elliptical surface)

AIR5-6KG/ c㎡

Conic

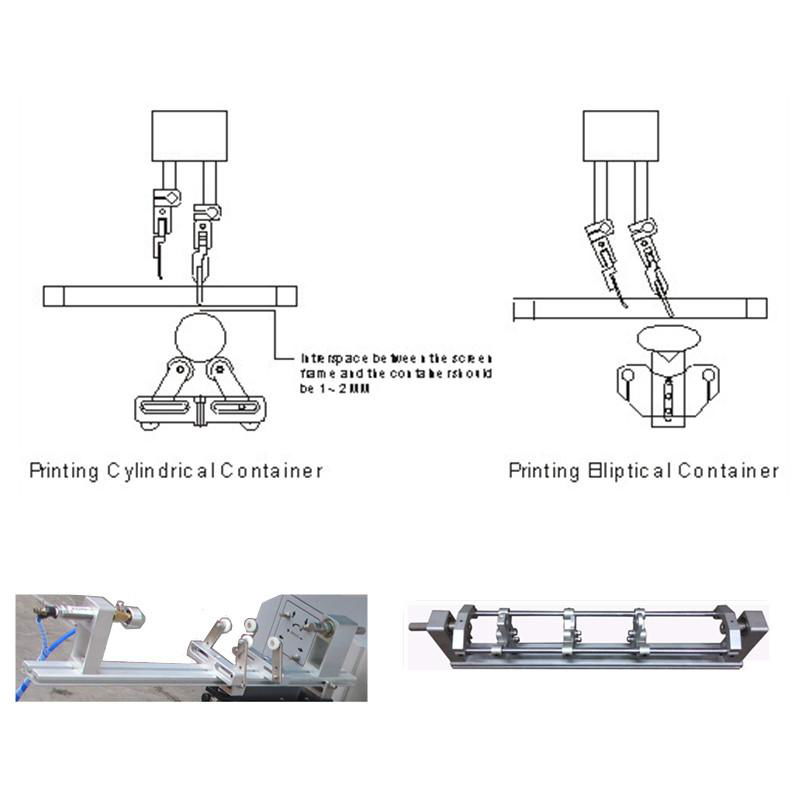

Machine features:


1.The screen printer is with microcomputer control , high automatic functions, easy setting and operation.

2. The screen printing machine adopts the component from Germany, the function can be trustiness.

3. The oil return and scraper double mould, meet the every kind of the printing requirements.

4. The printing route and the speed can adjustment, satisfied with the all kinds of printing requirements.

5. Our screen printer can balance the scraper by itself, to ensure the printing pressure equality.

6. Use the import axes, axile bush made the screen scraper placidity slide printing.

7. The slide speed can adjustment independently, it is convenient and fast.

8. Changing the fixture can print circle, elliptic, plane and benefit maximization.

Random accessories:


One Tool box one piece of Chinese specifications one set of tongs one set of Allen key. One set of Philip's head screw 、one of the located air cylinder.
