Product Description

 3/8” High Rib Lath is intended for horizontal applications with its seven longitudinal ribs, each 3/8 inch deep and eight small flat ribs to provide additional rigidity. The herringbone mesh pattern provides excellent bonding of the stucco to the lath for ceiling and soffit installations. The 1/8” flat ribs at the outer edge of the sheet allows for a smooth overlap reducing plaster cracks at the laps. For these reasons plus the fact that this product will span up to 24” o.c. makes High Rib an excellent lath for horizontal installations.

Specification:

Material

Weight/sq.Yard

Sheet size

Pcs/Pallet

Galvanized

3.4ibs.

27’’*96’’

500
Galvanized 4.0 ibs. 27’’*96’’ 500

Galvanized

6.2 ibs.

27’’*96’’

500



3/8” High Rib Lath

3/8” High Rib Lath

3/8” High Rib Lath

3/8” High Rib Lath

3/8” High Rib Lath

3/8” High Rib Lath

3/8” High Rib Lath

3/8” High Rib Lath


Rib Lath provides an excellent plaster base for ceiling applications 3/8” Rib Lath and scratch coat with brown coat Application of “Brown” Coat over “Scratch” Coat

Product Image

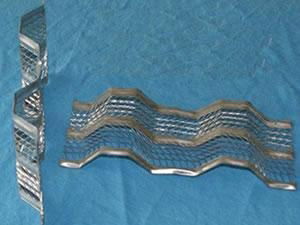

Rib Lath 1
Img 1

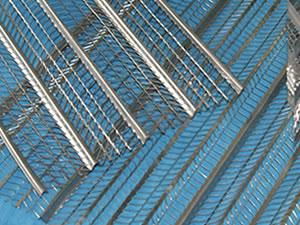

Rib Lath 2
