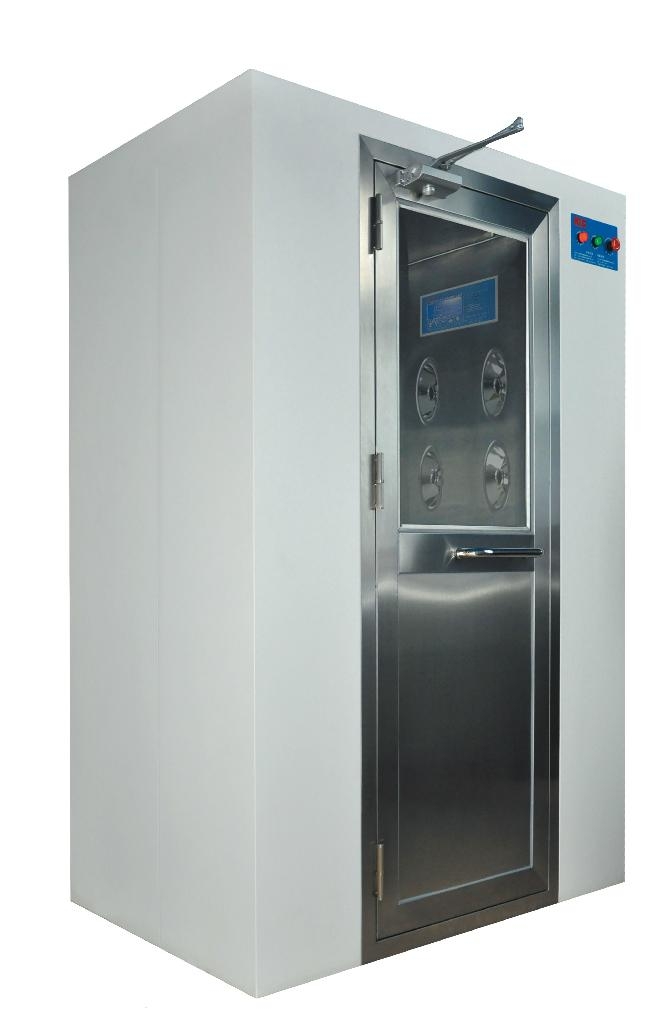

Cleanroom Air showers
Introduction:
Cleanroom Air showers are self-contained chambers installed at entrances to clean room and other controlled environments, they minimize particulate matter entering or exiting the clean space, personnel and materials entering or exiting the controlled environment are filtration by high velocity HEPA-filtered air jets with velocities of 22-30m/s, then contaminated air is drawn through the base within the unit, filtered and re-circulated
Applications:
The greatest source of particulate contamination in a clean room is the operator air shower are installed between change areas and the clean room, the clean room air shower enhances clean room operating protocol by serving as a reminder to all operators that they are entering a controlled environment, personnel should be gowning up properly before entering the air shower room , after you pass the clean room air shower ,this can keep pharmaceutical , semiconductor ,micro-electronics production and lab animal breeding areas clean and al、so minimize egress of hazardous substances and allergens from the controlled environment .
Operating features :
1: Cleanroom air showers are PCL control system with LED display for the shower time. Comply with CE Test
2: the clean room air showers duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic.
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, if clean room air showers failed to control .
|
Cleanroom Air Shower AL-AS1300P Series |
||||
|
Clean room Air Showers MODEL |
AL-AS1300P1 |
AL-AS1300P2 |
AL-AS1300P3 |
|
|
External size (mm) (WXDXH) |
1300x1000x2180 |
1300x2000x2180 |
1300x3000x2180 |
|
|
Work zone (mm)(WXDXH) |
800x930x1910 |
800x1930x1910 |
800x2930x1910 |
|
|
Persons per cycle |
1-2 person |
2-4 person |
3-6 person |
|
|
Air shower Duration |
Factory set at 12 second (adjustable) |
|||
|
Air shower direction |
Three side with blowing |
|||
|
Material （Option） |
1: Entirety Sus304. 2: Entirety sus201. 3: External is steel with power coated, Internal is SUS304/201 |
|||
|
Control system |
1: PCL control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable). 3: Infrared ray inductor for inside personal shower automatic. 4: Human voice prompt system. 5: cleanroom air shower with CE remark. |
|||
|
The power of Fan |
380V/50HZ/750W (2 set) |
380V/50HZ/750W (4 sets) |
380V/50HZ/750W (6sets) |
|
|
Air flow of fan(m3/h) |
1300m3/h |
|||
|
Fan run (r/min) |
2800r/min |
|||
|
Nozzle in stain less steel |
16 pcs |
32 pcs |
48pcs |
|
|
Wind speed(m/s) |
23-29m/s |
|||
|
Noise level(dB) |
<62dB |
|||
|
LED Fluorescent Lamp |
20wx1 |
20wx2 |
20wx3 |
|
|
HEPA air Filter |
Size(mm) |
630X630X69mm |
||
|
Efficiency |
99.99%@0.3um |
|||
|
Air velocity |
1000(m3/h) |
|||
|
resistance(pa) |
<220pa |
|||
|
Prefilter |
Size(mm) |
775x380x17 |
||
|
Efficiency |
75% @ 0.5um |
|||
|
Resistance(pa) |
<30 Pa |
|||
|
Electrical |
Power supply |
380v/50Hz |
||
|
Net power(kw) |
1.6 kw |
3.1 kw |
4.6 kw |
|
Customer’s design is available for cleanroom air showers.
