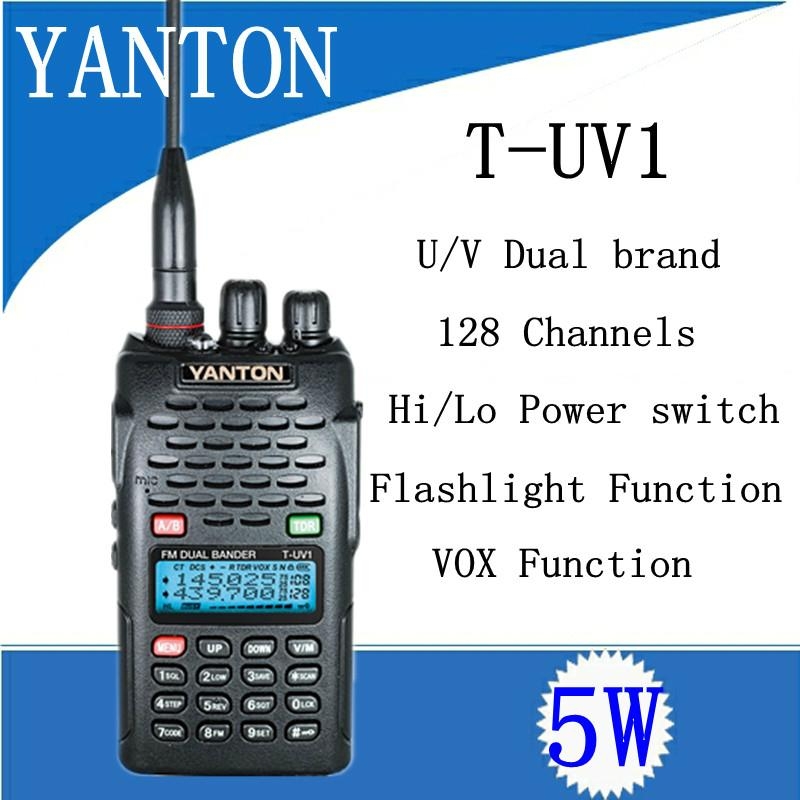

| Model: | T-UV1 |
|---|---|
| Brand: | YANTON |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Wireless Equipment |
| Label: | cb radio , cb radio , cb radio |
| Price: |
US $38
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: | Last Online:14 Sep, 2015 |
Functions:
1.Output power:5w
2.Frequency range:136-174mhz&400-480mhz
3. Dual band, dual display, dual standby
4. 128 channels storage
5. Emergency alert
6. FM radio and 25 stations storage
7. CTCSS/DCS scanning
8. 0~9 grades VOX selectable
9. Multi and priority channel scan function
10. Channel name display and setting
11. Power on message display
12. Frequency difference setting
13. PC software programmable, Wired clone function
14. Reverse frequency
15. Wide/Narrow Band(25kHz/12.5kHz)
16. Busy channel lock-out(BCLO)
17. Transmitter time-out timer(TOT)
18. End-tone Elimination
19. LED setting
20. Beep setting
21. Transmit over beeper
22. Dual monitor
23. Receive power saving
24. Battery power voltage
25. Repeater shift direction
26. Frequency spacing function
27. Shortcut menu operation mode
28. High/Low TX power selectable
Specifications:
|
Model |
T-UV1 |
|
|
Frequency range: |
136-174Mhz and 400-470mhz |
|
|
Memory channel |
128 |
|
|
Rated voltage |
7.2V DC |
|
|
Memory channel |
128 |
|
|
Channel spacing |
5KHZ/10KHZ/12.5KHZ/25KHZ |
|
|
Frequency sensitivity |
±5PPM |
|
|
Size : |
58mm*105mm*38mm) |
|
|
Transmitter |
|
|
|
Output power |
5W/1W |
|
|
Current |
≤1.6A/1A |
|
|
Modulation sensitivity |
12 ±3mV |
|
|
Modulation distortion: |
≤5% |
|
|
Maximum frequency deviation |
≤5KHZ |
|
|
CTCSS frequency deviation |
≤0.75KHz±50Hz |
|
|
Remanent radiation |
≤7μVV |
|
|
Modulation mode |
16KΩF3E |
|
|
Remanent modulation |
≤-35dB |
|
|
Receiver |
|
|
|
Sensitivity |
≤0.25μV |
|
|
Silent sensitivity |
<0.25μV |
|
|
Audio frequency power |
500Mw |
|
|
Audio distortion |
≤10% |
|
|
Modulation bandwidth |
≥1±5KHZ |
|
|
Spurious response |
≥55dB |
|
|
Selectivity |
≥65dB |
|
|
Inter modulation |
≥60dB |
|
|
Barrage : |
≥85dB |
|
