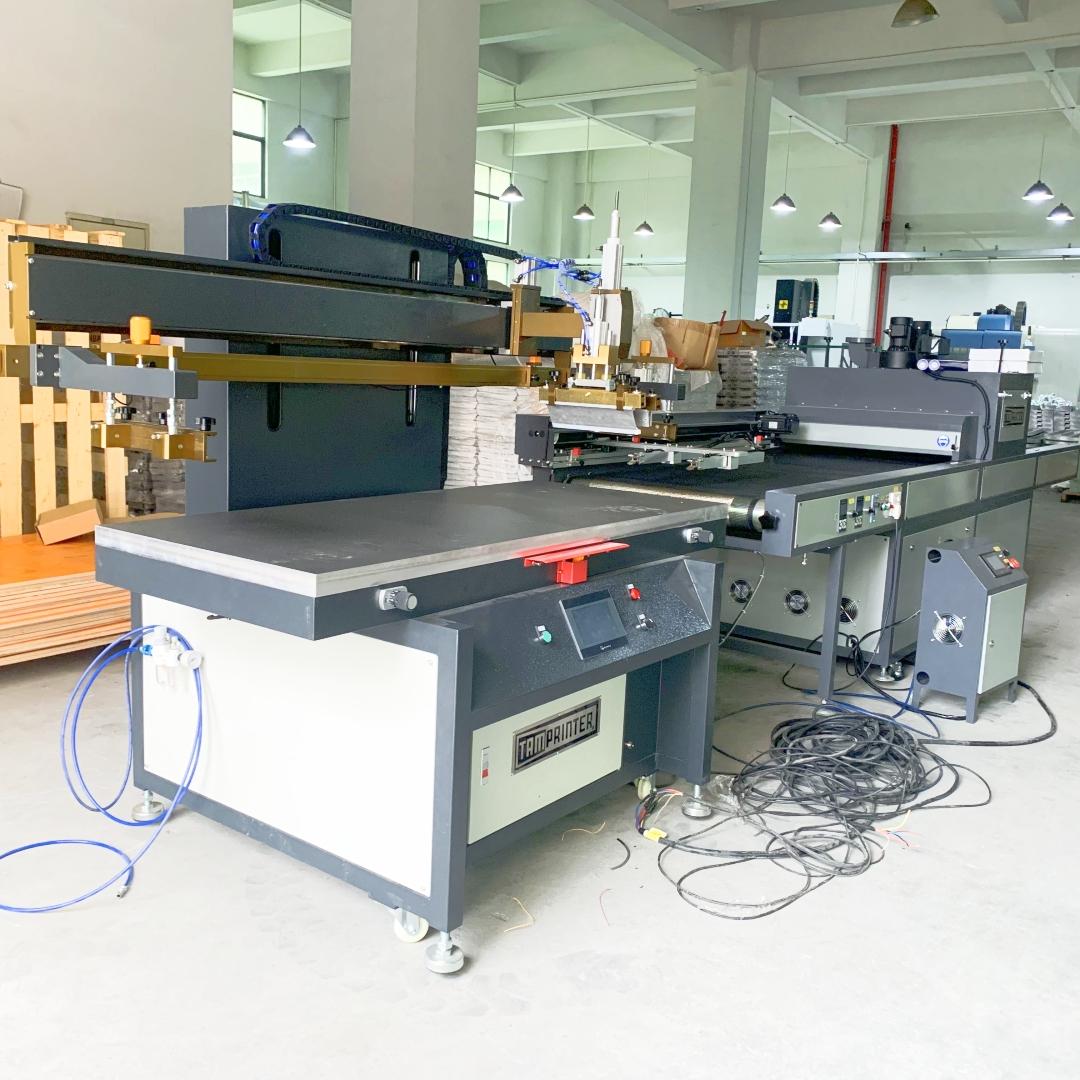

Canadian strip sheet 3/4 automatic uv screen printing machine

Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:strip sheet PRINTER , Large screen printer , Auto uv screen print
Price: US $24075 / set
Min. Order:1 set
Inquire Now Add to Basket

Member Information



Biz MemberGuang Dong - China
Live Chat:
Last Online:14 May, 2024

Product Description

 Applications :

Mainly for signs factory, paper box packaging silk screen processing plants, Electronics, toys, gifts, clothing, stationery, cosmetics, washing products, chemicals, food, health product, pharmaceutical and packaging etc.


1,  servo motor drive, printing runs smoothly, High precision printing for big size printing;

2,  UV light source , Drying uv ink on sheet is very fast than heat dry ink;

3,  Energy saving and environmental protection, Suitable for clean room(dust-free workshop).
















PLC double servo motor Super precis screen printer


Model No.      TM-50140A

double Servo + PLC        X/Z  servo

Print area        500X1400mm

Table size         700X1600mm

Max frame      800X1700mm

Printing thickness  0~ 20mm

Overlay accuracy   0.05mm

Workbench height from ground 840mm

Platform precision          About +/-0.06mm

Printing pressure   4.0-8.0 kgf/cm2

Air pressure(mpa)          0.5~0.6(Mpa)

Air consumption    35L/min

Printing speed        650pcs/h

Power:220VAC, single phase /2.5KW

Dimensions (LXWXH)mm         2250mmX1250mmX1780mm

Weight    500kg  5CBM

Free fitting

AL squeegee holder  500mm--1pcs

AL flood bar 520mm---1pcs

AL squeegee holder  300mm--1pcs

AL flood bar 320mm---1pcs.

Tool box


UV Machine







Auto Robot  Arm 1750



Electric power

Step-less dimming energy-saving style

Conveyor belt width(mm) 730

Effective range (mm) 750

Product max height (mm) 40

Conveyor speed (m) 2~20

Belt to ground 840mm

Power:380VAC, 3 phase

UV lampKW/2pcs5.6

Conveyor powerW90

Total powerKW12.1



Weight(kg) 300

1,Working air pressure(Mpa): 0.3-0.5

2,Gas consumption(0.6Mpa)(L/pcs): 0.5

3,power(kw): 0.75

4,Power:220VAC, single phase

5,Take the feed rate (pcs/h): 1000

6,DimensionL*W*Hmm : L1750* W700* H 200

7,weight(kg): 40

8The clip grabs the product and drags it  Run from left to right

9The control panel is button + microcontroller + display



208V3phase to 380V3phase (for UV  machine)+ 220V single phase(for robot arm ,sharpening machine,screen printer)


Squeegee Sharpening Machine


Grinding stroke 800MM

Grinding thickness 5MM-20MM

Grinding angle 90

Power:220VAC, 1 phase

Total power0.37KW

Machine size L165 * 500 * 86 CM=1.25CBM

Machine weight 96KG+40kg plywood


Thousand layer


galvanized Drying Rack Trolley

50 layer

layer to layer 25mm

Screen Size 65*100cm,

12 * 12CM grid

Wire diameter 4.6 *2. 3mm

4 inch wheels

(1 set plywood size L 1.25*W 0.9*H 1.65m=1.86CBM 65kg

6 set plywood size L 2.1*W 1.38*H 1.6m=4.64CBM

75sets = 20gp)

scraper assembly


250mm AL squeegee holder

270mm AL flood bar

scraper assembly


350mm AL squeegee holder

370mm AL flood bar

Ink Squeegee


50mmx9mm*4M single layere 55 shore ,Sectional shape G1 brown

50mmx9mm*4M  single layer 65 shore, Sectional shape G1 brown

Packaging industry printer for
Box and Packing
Coloring Book
Coffee Table Photo Book Printing
Book Printing
Brochure Printing
Catalogue Printing
Cookbook Printing
Children Book Printing
Calendar Printing
Dictionary Printing
Magazine Printing
Notebook Printing
Publications Printing
Special Finishing Book Print
Textbook Printing
Year Book Printing
Yellow page Printing


How difficult would it be to modify our printer with a squeegee on both sides, and change the program to print in both directions ?
R-L, lift... 1 print... L-R, lift... 1 print
1st print - Squeegee pressure R-L, then raise. New substrate... 2nd print - Squeegee pressure L-R, then raise. (each direction is 1 print with new sheet).
The reason is, we are using a stencil with holes. Pushing the ink L-R with the aluminum blade causes the ink to leak through the holes. It would be better if we printed, once in one direction, then once in the other direction.
what is required ? A squeegee on both sides ? If you can show me the parts, I will understand. I am mechanical engineer and design machines as well.
I also work with PLCs and can make modifications
Solution 1
cancel flood bar ,change to 2 squeegee
Solution 2
Directly cancel the oil return scraper , only use 1 squeegee scraper to move back and forth
The risk lies in the action interference. Pay special attention to dragging the uv machine away first to ensure a safe distance from the screen printing machine to prevent fights and ensure that the robotic arm does not touch the screen printing machine during the deb ing process.
Ensure that the movements are coordinated and meet the requirements, and then the two parts are sent to the correct position
The robot PLC program should not need to be changed

Can it be done with just a program change ?  This would be ideal. I guess one squeegee would print in both directions.
The U disk file can only change the touch screen display, and the PLC program file becomes the desired action, which needs to be continuously deb ed. The machine is not in China, it is difficult to achieve. We s est that you will work on the current state, single squeegee printing, the left and right tilt angles are inconsistent, and you need to adjust the descending height of the head during the return printing process
Looking forward to your video feedback on normal production status,thank u
How much time will the reprogramming take ? Can we upload the new program ? We have very little time to make this work.
Express back and forth plus programming time, you budget 40 days
Disassemble the touch screen and PLC and send them to us for modification.
Pay special attention to the risks, it is easy to disassemble and difficult to put back, and it is very dangerous to connect a wrong wire, remember to record the whole process for backup.
 Remember to videotape the whole process of disassembly and assembly for future reference.
I need it working in a week. Do we have access to the program ? I have a good programmer if it is a change in the logic sequence.
First ask him if your programmer  can understand the existing program, if he can understand the original command code, keep a backup, and then try to change the code
If your programmers can't understand the factory code, try not to change it.
Because DHL express usually 7~15days
Thankyou... we are working with the program, but it will be difficult to do ourselves. We have no trouble loading a new program on the PLC. Can you generate an updated program for the 2 direction printing ? We can gladly pay for the change.
This work is urgent and we need the change asap - please let me know if there is any option to expedite the work.
 This program change cannot be implemented remotely, it must be deb ed on site, and it is too expensive for engineers to go to Canada
Ok, I thought you wanted the PLC shipped back for programming (which seems like just loading the program), I don't know how that helps debug.
I must have misunderstood.
Thank you for providing us with a design idea,
The next time I encounter long strip printing, I will advise customers to print bidirectionally to improve efficiency.
You have contributed to the industrial development of mankind, and you can also apply for a patent.
Getting close. We have the full size stencil now. The squeegee travel is not parallel to the table. 10mm higher at one end. Is there adjustment for this ?
First, you can adjust the control handle of the screen frame to reach a distance of 5~8mm from the platform.
Adjustable workbench
Disassemble the cover plate, there are screw adjustments inside
If it is adjusted to the limit, put something in to level the workbench
There should not be so much difference. We adjusted the workbench level when assembling.
Strange... We have a new PLC program ready to download to the PLC, but are getting an "unlock error"... The 201129 pass doesn't seem to work. Any ideas? Is there a trick to connecting to the PLC ?
PLC program not free, you bought? and get key?
The new PLC has a password, you have to ask the PLC program supplier

A problem I am encountering now is that the parameter setting on the HMI side is not synchronized with the parameter setting on the PLC program. It means that when I adjust the parameter setting on the touch screen, that parameter will not be adjusted. For example, "pan manual speed". Do you have any ideas, or do you know what causes the communication between HMI and PLC to be out of sync?
If it can’t be adjusted, it means that the address of the touch screen does not correspond to the PLC or the data format is wrong. If you don’t know how to program, it’s best not to start the program, otherwise it will become more and more chaotic.
Relevant information can be found on Xinjie official website
It is written on the screen, the PLC has not been changed, it must be a problem with the format of the data address
