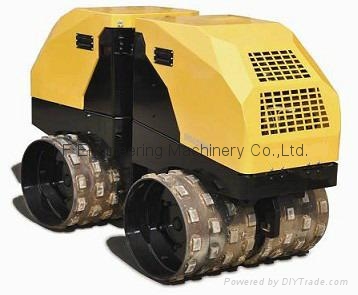

1635kgs Remote Control Trench Road Roller
(Hydraulic & Reversible)
1-Hydraulic System 2-NSK bearings 3-MITSUBOSHI V-belt
Remote control trench roller is self-developed by our company. With several national patents, this product fills the national gap.
It is mainly used in the backfill compaction of drainage and heating pipeline trench and other construction projects
|
Model |
SRR290A |
|
Speed (Forward/reverse) |
0-1.2km/h / 0-2.4km/h |
|
Grade ability |
50% |
|
Static load forward/reverse |
98N/cm / 90N/cm |
|
Nominal amplitude |
1.7mm |
|
Vibration frequency |
42Hz |
|
Exciting force |
70kn/35kn(hydraulic control) |
|
Engine model |
Pekins 403D-11 |
|
Engine type |
Diesel engine, air cooled,4-stroke, three cylinder |
|
Power |
25hp@2800rpm |
|
Fuel tank volume |
30L |
|
Dimension |
|
|
Width of steel wheel |
600mm / 850mm |
|
Diameter of steel wheel |
520mm |
|
Tread |
1000mm |
|
Total length |
1900mm |
|
Total width |
850mm |
|
Total height |
1300mm |
|
Shipping size(L x W X H) |
2010mmx950mmx1460mm |
|
Max. Working weight |
1635kgs |
