| Model: | 006 |
|---|---|
| Brand: | MADEDO |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / GPS |
| Label: | gps , smart map , gps navigation |
| Price: |
US $160
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:15 Mar, 2014 |
Waterproof Auto GPS navigation Smart Maps for Europe coutry Australia
Description:
|
Screen |
Display |
3.5 inch touch panel, TFT screen, 65536 colors |
|
|
Resolution |
320X240 |
|
Memory |
Flash ROM |
NAND Flash support 64MB to 8GB |
|
|
RAM |
64M/128M DDR2 SDRAM |
|
GPS Module |
High Sensitivity Receiver (NXP GNS7560) |
|
|
Antenna |
Real built-in antenna (built-in GPS high sensitivity receiver42 channel) |
|
|
BlueTooth |
Built in |
|
|
Audio |
WMA,WAV |
|
|
Video |
AVI, ASF |
|
|
Photo |
JPG TIF PNG |
|
|
Input/Output |
Touch Panel |
Resistive type touch panel |
|
|
Speaker |
Built–in loud speaker |
|
|
SD / MMC |
TF slot, capacity up to 8GB (support TF HC) |
|
|
USB |
USB 2.0 Device (Mini Port) |
|
Waterproof |
YES (IP54) |
|
|
UUT Drop Test (OK) |
Place a 3mm thickness fireproofing wood block,Power on the UUT,then drop it from 80cm height freenessly by front,side and bottom face .NO function problem |
|
|
Buttons / Switches |
Hardware Power ON/OFF Switch and Reset Switch |
|
|
Battery |
Type |
Built-in 3.7V 1150mAh Li battery |
|
|
Active |
System continues with backlight setting on middle range & GPS function on full power mode about 3.0(TBD) hrs |
|
|
Charger |
Rechargeable battery |
|

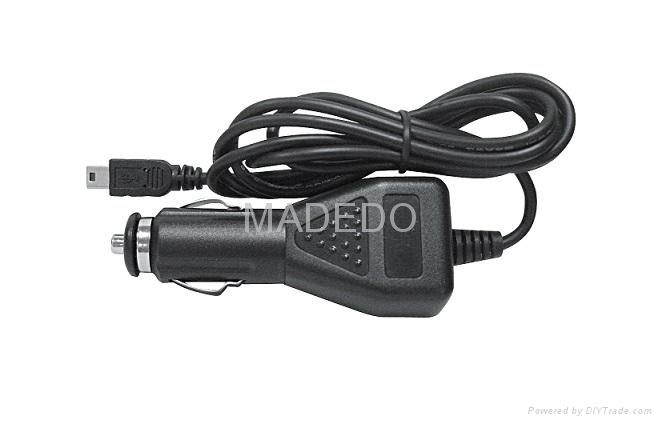

Car Charger |
Output |
5V, 1.0A |
|
Certification & Regulation |
CE,FCC, RoHS |
|
