Fanless CarPC Case Car PC Enclosure IPC Case Mini-itx Case

Fanless CarPC Case Car PC Enclosure IPC Case Mini-itx Case 1

Fanless CarPC Case Car PC Enclosure IPC Case Mini-itx Case 2

Fanless CarPC Case Car PC Enclosure IPC Case Mini-itx Case 3

Model:	car pc case0901
Brand:	Hoply
Origin:	Made In China
Category:	Transportation / Car Accessories / Car Communications
Label:	mini-itx enclosure , mini-itx case , car pc case
Price:	US $45 / pc
Min. Order:	100 pc

Inquire Now Add to Basket

Member Information

Shenzhen Hoply Technology Co.,Ltd

Free MemberGuang Dong - China

Live Chat:

Last Online:01 Aug, 2013

Product Description

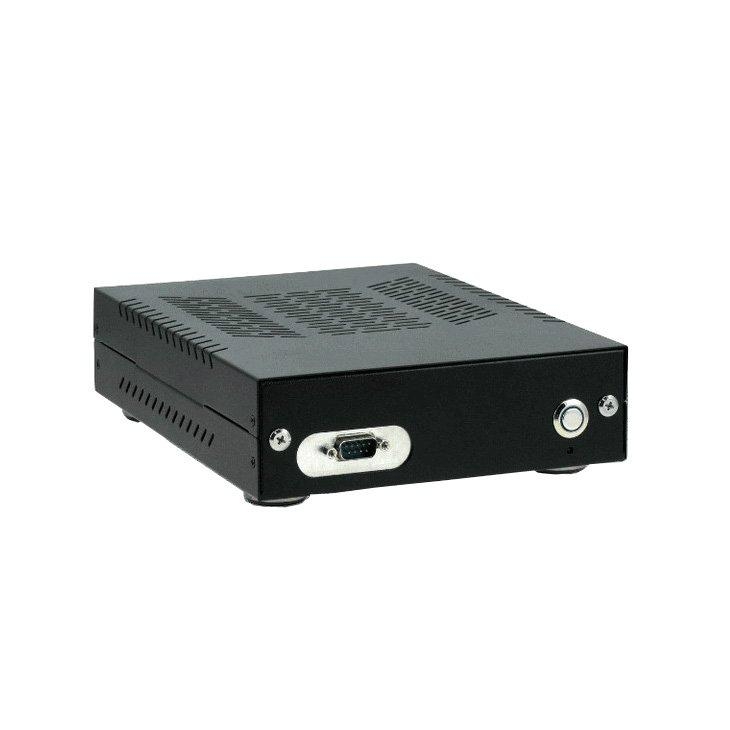

Fanless Mini ITX Case Car PC Enclosure

optional:2 usp ports,4 usb ports, 1 com ports, Compact Flash Socket,

- 2.5" HDD/SSD Drive Bay
- VNT6656 USB WiFi Module (opt)
- WiFi Antenna Mounting
- 7.0mm Motherboard Standoffs
- Wall / Table / VESA Mounting (opt)
- 180 (W) x 54 (H) x 235 (D) mm

The Case0901 series fanless Mini-ITX Embedded Cases are compact, light weight and versatile cases, designed for different embedded applications. With the innovative front panel I/O modular design - Dual USB 2.0 , Quad USB 2.0, Serial Port , Compact Flash Socket or without any front panel I/O - and 7mm tall motherboard standoffs, the Case0901 series fanless Mini-ITX embedded cases will work with virtually any brand and model of Mini-ITX motherboards.

The Aluminum housing with large ventilated top panel cover, the case0901 series fanless Mini-ITX cases can be used as a complete solid state system with fanless processor platforms - including VIA, Intel and AMD low power fanless processors. The Case0901 series fanless Mini-ITX cases also supports Wall-Mount, Table-Mount, VESA-Mount system mounting options, plus custom mounting area to support VIA VNT6656 802.11b/g USB WLAN module and VNT9271 802.11b/g/n USB WLAN module with single WiFi Antenna.

OEM/ODM chassis customization and volume discount are available for qualified customers,please contact us for more detail.

The fanless Mini-ITX Embedded Cases are compact, light weight and versatile cases, designed for different embedded applications. With the innovative front panel I/O modular design - Dual USB 2.0, Quad USB 2.0, Serial Port (Everex Type / DTK Type), Compact Flash Socket or Solid front panel I/O - and 7mm tall motherboard standoffs, the fanless Mini-ITX embedded cases will work with virtually any brand and model of Mini-ITX motherboards.

The Aluminum housing with large ventilated top panel cover, the fanless Mini-ITX cases can be used as a complete solid state system with fanless processor platforms - including VIA, Intel and AMD low power fanless processors. The fanless Mini-ITX cases also supports Wall-Mount, Table-Mount, VESA-Mount system mounting options, plus custom mounting area to support VIA VNT6656 802.11b/g USB WLAN module with single WiFi Antenna.

Model Name	Mini-itx Case with 4 USB Ports
Dimensions	7.09"(W) x 2.13"(H) x 9.25"(D)
Dimensions	180mm (W) x 54mm (H) x 235mm (D)
Chassis Cooling	Fanless Passive Cooling with Ventilated Top Panel
Chassis Material	Aluminum Chassis
Drive Bay (s)	1 x 2.5" HDD / SSD Bay
Power Supply	Internal DC-DC Power Converter (opt)
Power Supply	External AC-DC Power Adapter w/US Power Cord (opt)
Mounting	Wall / Table / VESA Mounting Kit (opt)
Form Factor	Supports Mini-ITX form factor Mainboards
Form Factor	7mm tall motherboard standoffs
Package Contents	Fanless Mini-ITX Chassis
Package Contents	Screw Pack

Payment Terms:	TT
