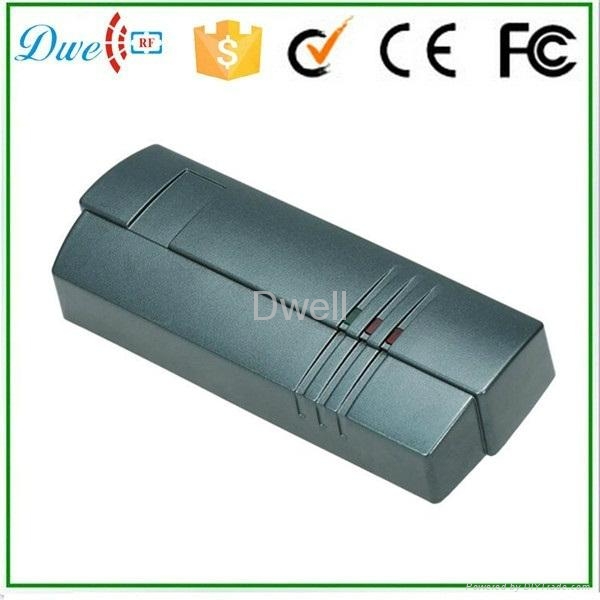

125khz EM-ID or 13.56Mhz access control reader 001D

Model:001D
Brand:Dwell
Origin:Made In China
Category:Computers & AV Digital / Computer Accessories / Memory Card & Card Reader
Label:reader , control reader , access control
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Shenzhen Dwell Eelectronics Co.,Limited

Biz MemberHong Kong S.A.R
Live Chat:
点击这里给我发消息Last Online:01 Dec, 2022

Product Description

Wiegand 26/34 , RS232, RS485 Proximity Card Reader

Specification



  • Less than 0.2 second Response Speed
  • Less than 0.5 seconds Proximity Time Distance
  • 2-15cm Proximity Range
  • Support EM-ID 125Khz  13.56Mhz  card or keyfob
  • Built-in Antenna
  • Built-in LED (Double Color LED)
  • Built-in Loud Speaker (Buzzer)
  • DC 12V Working Voltage,70mA Working Current
  • 100 Meters Communication Distance for wiegand interface
  • Real Time Data Transfer
  • Dark Grey Color
  • PVC Case Material (Black Resin for Water-Proof Function)
  • 122*46mm*23mm





Using + type screw driver to loosen the screw between the panel and motherboard. And then embed the motherboard to the side wall with the plastic plug and screws.



Wire Connection



Red DC 9V-16V

Black GND

Green D0

White D1

Yellow BEEP

Blue  LED

Grey  WG34( Default is wiegand 26, if you need weigand 34, connect grey wire to GND)

Notice



1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply



2. When external Power is used, make sure sharing the power with Controller Box or using the same GND



3. When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires




Payment Terms:tt, western union , paypal,escrow,cash

Product Image

125khz EM-ID or 13.56Mhz access control reader 001D 1
Img 1
125khz EM-ID or 13.56Mhz access control reader 001D 2
Img 2
125khz EM-ID or 13.56Mhz access control reader 001D 3
Img 3
125khz EM-ID or 13.56Mhz access control reader 001D 4
Img 4
125khz EM-ID or 13.56Mhz access control reader 001D 5
Img 5
125khz EM-ID or 13.56Mhz access control reader 001D 6
Img 6
