Product Description

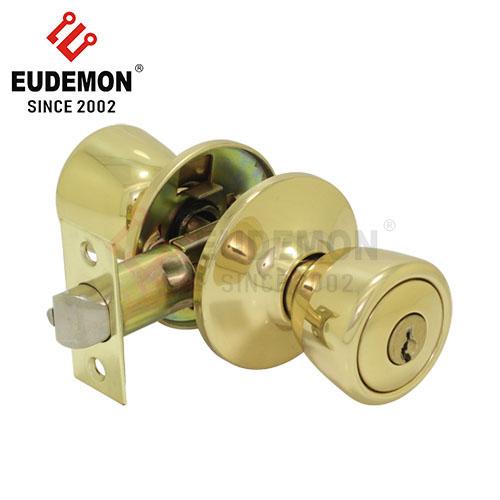

5762PB-ET
Material: Brass Knobs & Roses.
Knobs: one piece
Function:Entry/ Bathroom/Passage available upon request.
Engineering keycodes:11635,13226,14334,22435,23323,23737,25223,
25345,33535,34255,35241, 35542,43341,44535,44635,44637,46637,
52534,55243,55535,63542,64445,65432,66435,67767,76567,76667,
etc.various keycodes available.
Cylinder & Key: 5-pin tumbler cylinder, assembled with 2 nickel-plated brass keys.
Keying: KD / KA as usual, construction / master key upon request.
Finish: US3,US4,US10B, US11, US15, US15A, US26,US26D, US32, US32D
Latch: Adjustable latch w. 2 3/8" & 2 3/4" backset.
Drive-in latch, 4-way latch & 6-way latch available upon request.
Door thickness: from 1 3/8" (35mm) to 1 3/4" (45mm)
Can be furnished for doors over 1 3/4" (45mm) when so ordered.
Installation: 2 1/8"(54mm) diameter cross bore, 1" (25mm) diameter edge bore.
Packaging: Paper box as usual, visual packs available upon request.
