| Model: | cl-wl-low |
|---|---|
| Brand: | comlite |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Lighting / LED Lighting |
| Label: | Low led lights , underwater lights , led spool lights |
| Price: |
-
|
| Min. Order: | - |
| Live Chat: |  | Last Online:05 Oct, 2023 |
Features:

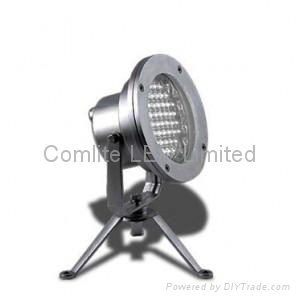

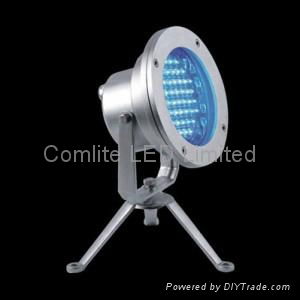

1.LED underwater spot light can install in water for decoration or illumination. It is widely used for fountain pool, theme park, etc
2.Single(pure white, warm white, red, green, blue, yellow) available
3.Stainless steel housing . IP68, built-in constant current driver, input voltage 24v DC, low consumption and safe for human and easy to install
Specifications:
|
Housing: |
molding shaped 304# stainless steel housing |
|
Tripod: |
molding shaped 304# stainless steel housing |
|
Glass: |
clear tempered glass T=5mm |
|
Waterproof cable gland: |
IP-68 PG-11 copper and nickel coated |
|
Waterproof seal: |
molding shaped double seal |
|
LED: |
52*Φ5 LED |
|
Driver: |
constant current output |
|
Application environment: |
in normal temperature water, water depth: within 1 meter |
|
Power cable: |
H05RN-F 2x1.0m㎡ L=3m |
Remarks:
1. LED driver is customized when the circumstance of working temperature is below 0℃
2. Use only switching power supply or coiled transformer for 24VDC power input.
3. Customized 316# stainless steel is available.
Dimension:
Technique Parameters:
|
Part No. |
Light Source |
Lens Beam Angle(°) |
Consumption (W) |
Input Voltage(V) |
Operating Current(mA) |
|
D5W5209 |
52XΦ5 |
30° |
4.1 |
24VDC |
172mA |
Advantage:
1. Beautiful appearance design
2. Long lifespan >50,000 hours
3. Low working voltage, safe for humen
4. Green Light, environmental protection
5. Low power consumption, high efficiency, economic
6. Single color,(pure white, warm white, red, green, blue, yellow) available
7. CE and RoHS approval, IP68
| Payment Terms: | TT/Paypal |
|---|---|
