Plastic drainage net prodcution line

Model:DSY-psw
Brand:Dalian Plastics Research Institute Co., Ltd
Origin:Made In China
Category:Industrial Supplies / Rubber & Plastics Machine
Label:drainage net , plastic net , drainage net machine
Price: -
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Dalian Plastic Research Institute Co. Ltd

Free MemberLiao Ning - China
Live Chat:Last Online:24 Jan, 2019

Product Description

 Drainage net production line and technology

Production line introduction



            Specification

Technical parameter



Width

2000-2500mm

3000-4000mm

4800-5000mm

Thickness

4.5-9mm

Production capacity

100kg/h

150-200kg/h

220-290kg/h

Power capacity

110kW

160kW

210kW

Outside dimension

18000×5000×5500mm

22000×6000×6500mm

24000×6500×7000mm





Product introduction



Taking HDPE as raw material, the ribs of drainage net are extruded from special die head. Every three ribs form 3D structure with drainage channel through fixed gap and angle. The rigidity of the middle rib is high, which shapes rectangular drainage channel. The three ribs have great tensile strength and compressive strength. The drainage channel among the ribs can afford high load. It can prevent the geo-textile from imbedding the net core and ensure the channel expedites. Drainage net can be divided into two types: high strength and high channelization.


Product Image

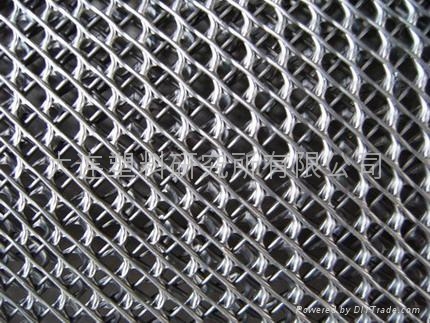

Plastic drainage net prodcution line 1
Img 1

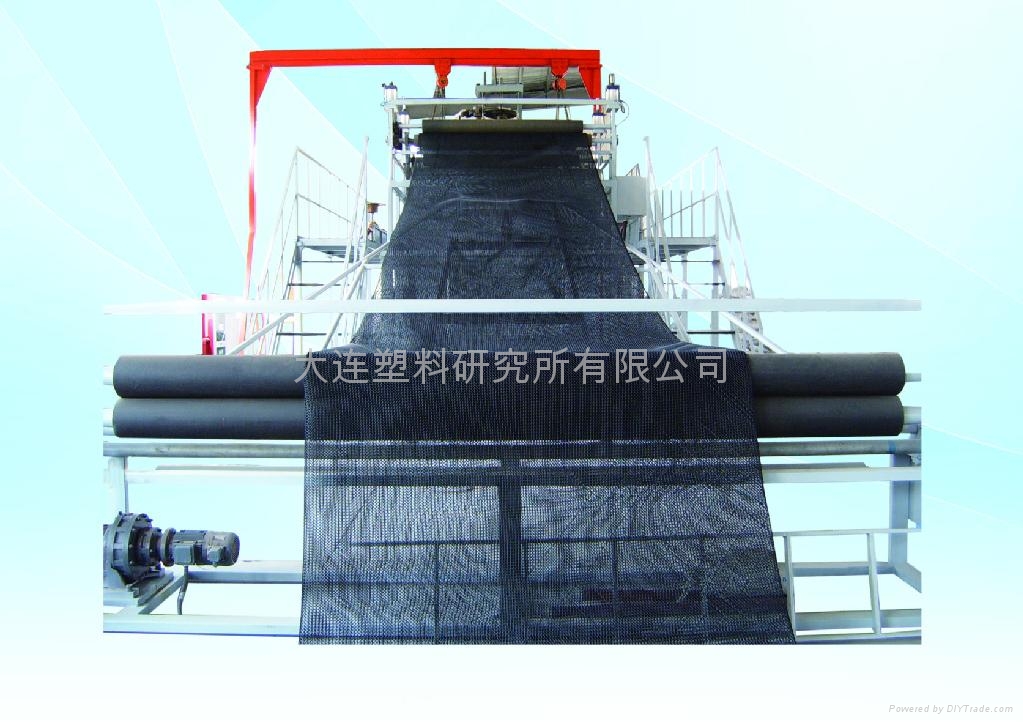

Plastic drainage net prodcution line 2
Img 2
Plastic drainage net prodcution line 3
Img 3
Plastic drainage net prodcution line 4
Img 4
Plastic drainage net prodcution line 5
Img 5
