Manual operating Large -Press Hot stamping machine

Model:RY1212
Brand:Shamrock press
Origin:Made In China
Category:Industrial Supplies / Machinery / Hydraulic Pressure Machine & Parts
Label:hot press melamine , Laminate Flooring Sh , plywood machine
Price: US $38000 / pc
Min. Order:1 pc
Inquire Now Add to Basket

Member Information

Detail

Paddington Industrial Co.,Ltd

Free MemberShan Dong - China
Live Chat:Last Online:19 Dec, 2012

Product Description

Detailed Product Description

  1.professional manufacture since 1990
2.passed CE, ISO9001
3.Germany agent in Europe
4.special design as your requests



 Short Cycle Hot Press of melamine board

1.Specification

Model BY61-4'*8'/120-1
Nominal Pressure 1200T
Numbers of Layers 1 Layer
Distance Between Layers 300mm
Numbers of Hot Platens 2 pieces
Hot Platen Size 1400*2600*120mm(working table)
Numbers &Diameter of cylinder 6 pieces of 320mm
Stroke of Cylinders 300mm
Hydraulic System Pressure 25 Mpa
No-load Closing Time about 5 S
Flow Rate of High-pressure Pump about 94 L/Min
Motor Power 37 KW
Wood Board Size 1220*2440mm
Control Method Manually/Automatic Controlled
Frame Style Double  Gantry Columns,Combination Frame
Height of Movable Crossbeam 200mm
Height of Top/Bottom Crossbeams 900mm
Thickness of Main Frame Steel 50/30/20/16mm
Overall Dimension 3490*1400*3200mm

 ADVANTAGES:

1)It is widely used in laminating film,veneer,melamine impregnated paperand PVC  for MDF,HDF, particle board,plywood.

2)It’s high-speed double-face laminating automatic hot press.
3)It uses top oil cylinder, framed structure.
4)It has feed-in car and board feed-out roller carriage.
5)It’s easy to operate and maintain and high output (about 1200 pieces in 10 hours).
6)It’s the best choice in making veneer sheets and laminated flooring.
7)It’s professional design,secure and reliable.
8)It’s control system uses advanced program controller.
9)It uses high quality and power brand accessories to make sure it's quality.

10)We have ever exported this kind of press machine to Britain,Iran,Uzbekistan,etc.

11)We have Germany agent as our trade friends.

12)we use the best accessories to make sure about our quality and only the best machine can be marked with our logo


Payment Terms:T/T;L/C

Product Image

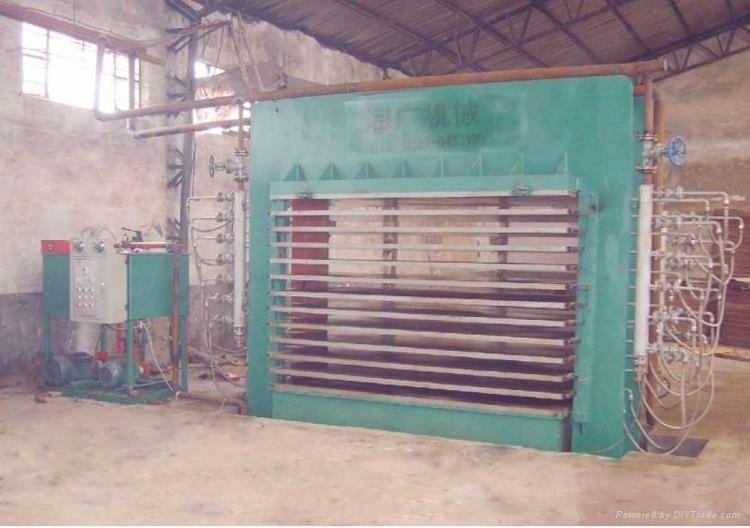

Manual operating Large -Press Hot stamping machine  1
